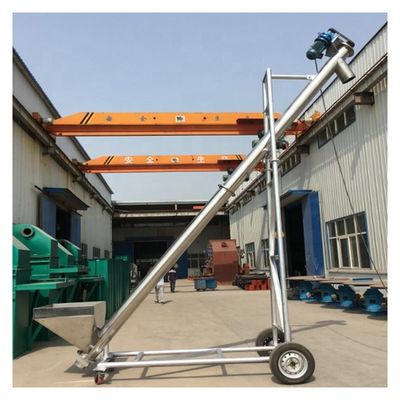

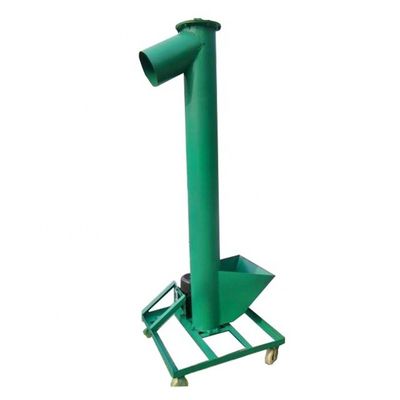

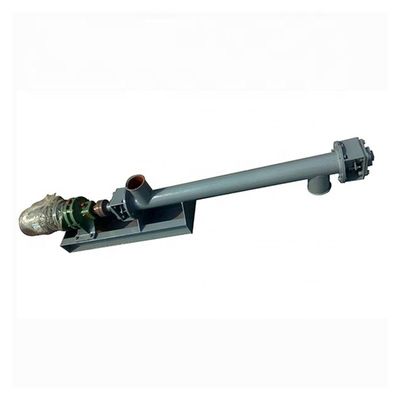

OEM Custom Inclined Conveying System Screw Auger Conveyor for Concrete Conveying

Product Description:
Used in cement plant concrete batching plant flexible auger make screw conveyor offers highly versatile and numerous solutions for cement feeding and conveying in concrete batching plants. Used in cement plant concrete batching plant flexible auger make screw conveyor usually consists of a tube containing rotating helical screw blade coiled around a shaft, driven at one end and held at the other. The main parts also include inlet and outlet chutes and driving device. In addition, used in cement plant concrete batching plant flexible auger make screw conveyor also widely used for granular and powdery materials at an inclination in many industries, such as concrete mixing station, bulk material transit storage, etc.

Advantages and Features:
1. Adopts continuous spiral blade made of high strength wear-resistant steel with smooth surface, which ensures the uniformity and stability of conveying material, so as to ensure the repeatability of the material measurement.
2. The continuous spiral blade is processed with cold rolled surface hardening treatment, hardness and wear resistance are twice higher than ordinary blade, the hardness of outer edge is up to HB240.
3. Front and rear screw blade adopts sparse and close screw pitch, which can prevent plugging effectively. Meanwhile, the high precision making blade can ensure the material fully filled with pipe casing.
4. Screw shaft with a certain interval are arranged with intermediate hanging bearings, which makes the front and rear blade jointed break interval smaller, and maximize the material passing flow section, thus material flow is smooth and unimpeded.
5. Simple structure, easy operation, low power consumption, flexible layout arrangement.
6. Small screw diameter with impact structure, high rotation speed which maintains large capacity.
7. Total enclosed structure, no pollution to environment, working environment are improved.


Drawing:
