Stainless Steel Shaftless Screw Conveyor for Efficient Transportation of Oil-Contaminated Sludge

Brand Name:	WeSeW
Model Number:	SS-717
MOQ:	1 pc
Price:	Price Negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	1000000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,UL

Operation Mode:

Manual Or Automatic

Width Or Diameter:

Customized

Voltage:

Customize

Inclination Angle:

Adjustable

Durability:

High

Application:

Bulk Material Handling

Material Feature:

Heat Resistant, Fire Resistant

Design:

Spiral

Packaging Details:

Wooden Case

Supply Ability:

1000000pcs per month

Highlight:

Shaftless Screw Conveyor

Stainless Steel Shaftless Screw Conveyor

Efficient Transportation Screw Conveyor

Product Description

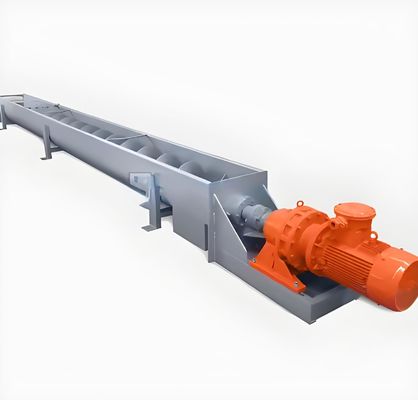

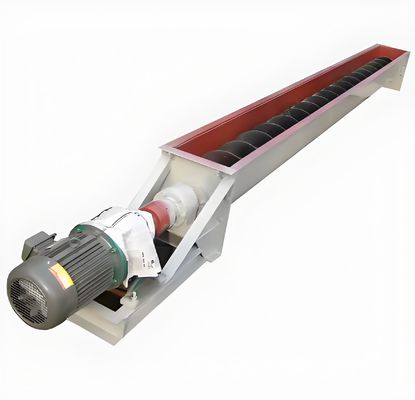

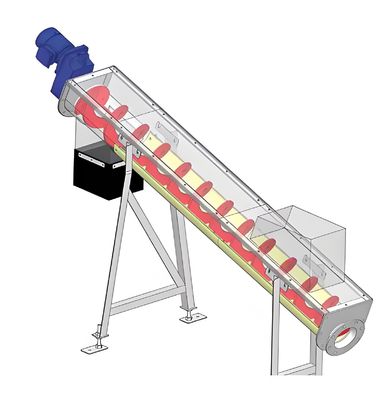

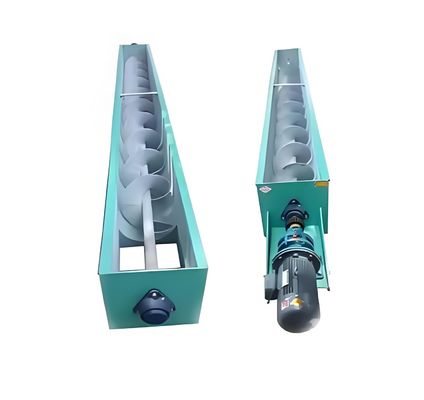

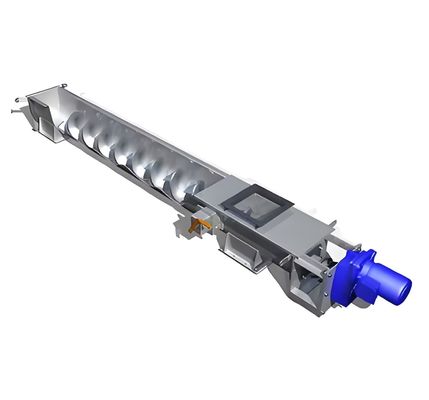

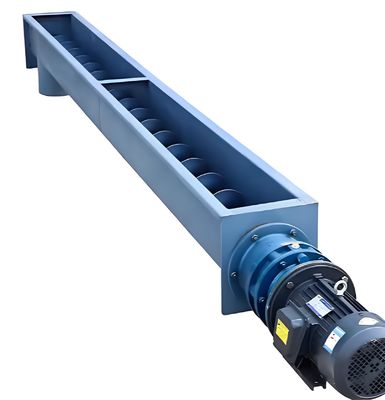

Stainless Steel Shaftless Screw Conveyor for Efficient Transportation of Oil-Contaminated Sludge

Screw Conveyor Function

Fully Enclosed and Leak-Proof Design: Utilizes advanced sealing technology to ensure no leakage during material conveyance, meeting stringent environmental requirements.

Efficient Conveyance with Low Energy Consumption: The shaftless spiral design optimizes material flow paths, improving conveyance efficiency while reducing energy consumption for green production.

Anti-Clogging and Easy Maintenance: Specifically suited for conveying viscous materials such as oil sludge, effectively reducing the risk of clogging. The compact structure facilitates easy cleaning and maintenance.

Screw Conveyor Application

1.Environmental Treatment: Oil and sludge conveyance in wastewater treatment plants, waste incineration plants, and other environmental facilities.

2.Food Processing: Conveying food raw materials containing viscous components like fruit pulp and syrup in food processing factories.

3.Agricultural Waste: Conveying and composting livestock manure, crop straw, and other agricultural waste from farms.

4.Municipal Engineering: Sludge conveyance in urban sewage cleaning and river dredging projects.

5.Petrochemical Industry: Conveying oil sludge, catalysts, and other materials in refinery and chemical plants.

Screw Conveyor Technical Parameters

Attribute Name	Attribute Description
Product Name	High-Efficiency Environmental-Friendly Shaftless Spiral Conveyor
Material	304/316 Stainless Steel
Power (HP)	0.75-30HP (Customizable)
Dimensions (L×W×H)	Customized
Conveying Pipe Diameter	300-1200mm (Customizable)
Frame Material	Carbon Steel + Stainless Steel
Conveyor Type	Automatic
Conveying Speed	5-60m/min (Adjustable)
Length	2-50m (Customizable)
Pipe Wall Thickness	1.5-10mm (Customizable)
Voltage	220V/380V 50/60HZ
Applications	Environmental Treatment, Food Processing, Agricultural Waste, Municipal Engineering, Petrochemical Industry

Stainless Steel Shaftless Screw Conveyor for Efficient Transportation of Oil-Contaminated Sludge 0
