Customized Stainless Steel Cement Screw Feeder with High Feeding Accuracy for Truck Unloading

Customized Stainless Steel Cement Screw Feeder with High Feeding Accuracy for Truck Unloading

Brand Name: WeSeW
Model Number: kaixi00
MOQ: 1 pc
Price: US$1200~US$50,000/set
Payment Terms: T/T,Western Union
Supply Ability: 10,000 pieces per month
Detail Information
Place of Origin:
china
Certification:
CE/UL
Material:
Stainless Steel
Material Feature:
Heat Resistant, Fire Resistant
Feeding Accuracy:
High
Product Type:
Industrial Equipment
Specification:
Customized
Voltage:
220V
Structure:
Conveyor System
Applicable Industries:
Manufacturing Plant, Energy & Mining
Packaging Details:
Wooden Case
Supply Ability:
10,000 pieces per month
Highlight:

custom automatic cement screw conveyor

,

inclined auger cement feeder

,

portable cement conveyor for truck unloading

Product Description
Custom Automatic Cement Powder Inclined Auger Screw Conveyor Feeder
This portable cement screw conveyor is designed for efficient truck unloading operations, featuring automatic operation and flexible installation capabilities for construction and industrial applications.
Product Specifications
Belt Material Carbon Steel
Material Options Stainless Steel, Carbon Steel
Special Feature Durable Construction
Dimensions (L*W*H) Customizable
Layer 1 Layer
Speed 1500 RPM
Applicable Industries Machinery Repair Shops, Construction Works, Energy & Mining
Warranty 1 Year
Usage Material Transmission
Application Construction
Color Customizable
Installation Engineer's Guide
Length Customizable
Installation Angle 0-60°
Technical Overview
The cement flexible screw conveyor utilizes a revolving screw mechanism to transport materials within a fixed casing. The head and tail bearings are integrated into the shell, while the hanger bearing employs a sleeve bearing with dustproof sealing. The bearing bush typically uses powder metallurgy, and concrete conveyance utilizes felt bushing. The hanger shaft and screw shaft are connected via a slider mechanism for optimal performance.
Technical Parameters
Model Diameter (mm) Rated Speed (r/min) Reference Capacity (m³/h) Motor Power (Kw) Maximum Gradient (°)
LS114 114 84-130 0.1-1 2.2-18.5 ≤60
LS133 133 - 1-2 - -
LS159 159 - 3-5 - -
LS219 219 - 5-15 - -
LS245 245 - 15-20 - -
LS273 273 - 20-30 - -
LS315 315 - 28-40 - -
LS400 400 - 35-45 - -
LS500 500 - 45-70 - -
LS600 600 - 60-100 - -
Key Features
  • High bearing capacity with safe and reliable operation
  • Strong adaptability with easy installation and maintenance for long service life
  • Compact design with high speed for rapid, uniform material delivery
  • Discharge end equipped with cleaning device, low noise operation with flexible inlet/outlet positioning
  • Excellent sealing with seamless steel tube shell and flange connections for superior rigidity

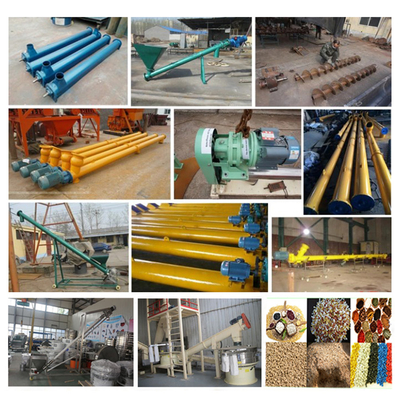

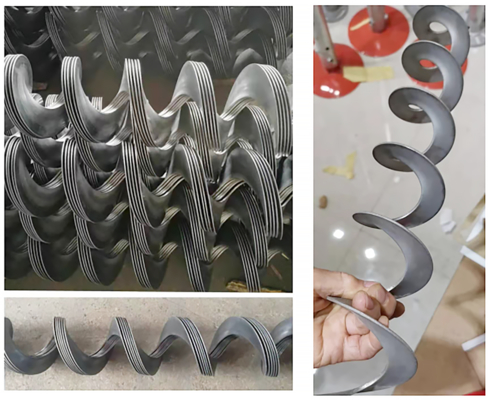

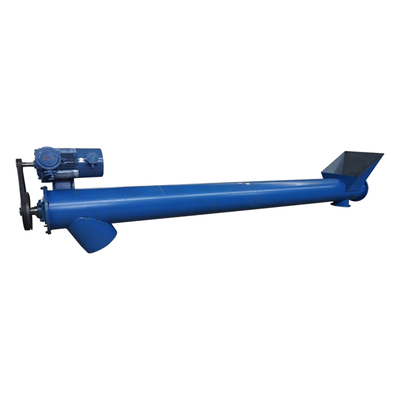

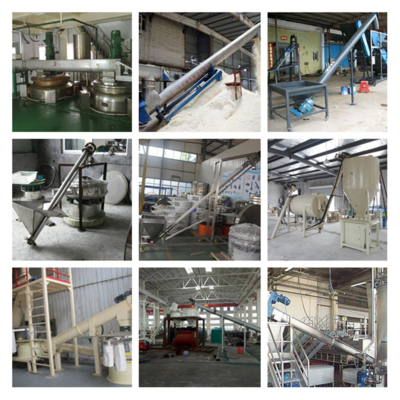

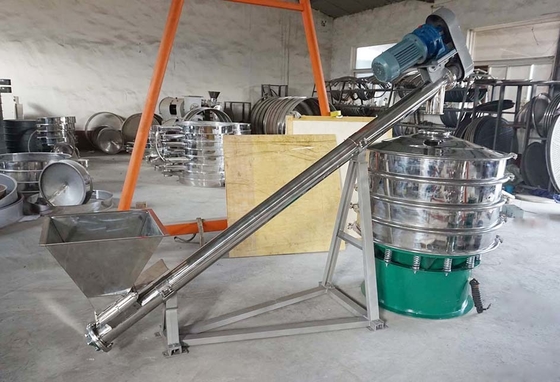

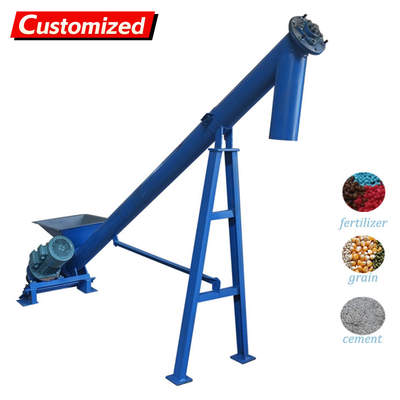

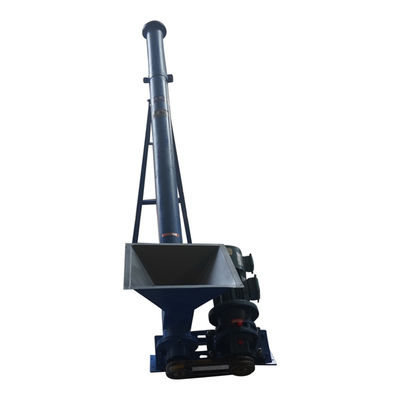

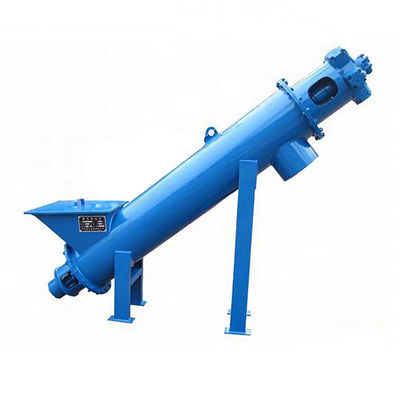

Product Gallery
