Heat Resistant Stainless Steel Screw Conveyor Customized for Industrial Applications

Name: Heat Resistant Stainless Steel Screw Conveyor Customized for Industrial Applications
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: AC0001-1
Price: 30.00 USD
Availability: InStock

Brand Name:	WeSeW
Model Number:	AC0001-1
MOQ:	1 pc
Price:	US$10,000~US$50,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

AC0001-1

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Manufacturing Plant, Energy & Mining

Machinery Test Report:

Provided

Core Components:

Motor, Engine

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

800.00cm * 50.00cm * 60.00cm

Package Gross Weight:

150.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Conveyor System

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Heat Resistant Thermal Screw Conveyor

Stainless Steel Thermal Screw Conveyor

Mining Transport Heating Screw Conveyor

Product Description

Heat Resistant Thermal Screw Conveyor

Our heat resistant thermal screw conveyor is engineered for efficient material handling in demanding industrial environments. Available in dewatering, horizontal, and specialized configurations to meet your specific operational requirements.

Applicable Industries: Food & Beverage Factory, Construction works, Cement, and more

Material: Stainless steel

Structure: Conveyor System

Warranty: 1 Year

Core Components: Motor, Bearing

Feeding Material: Powder or granule

Length: Customized 1~30m

Processing: Painting, burnishing, Bead blasting

Speed: Adjustable Speed

Material Feature: Heat Resistant

Type: Tube, trough, shaftless, vertical

Product Description

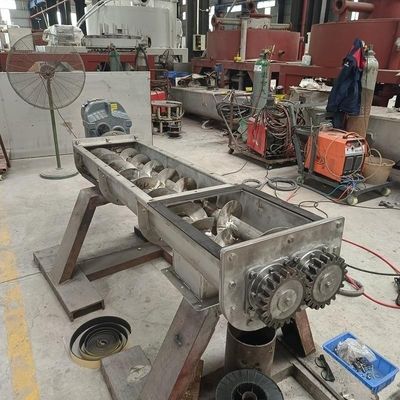

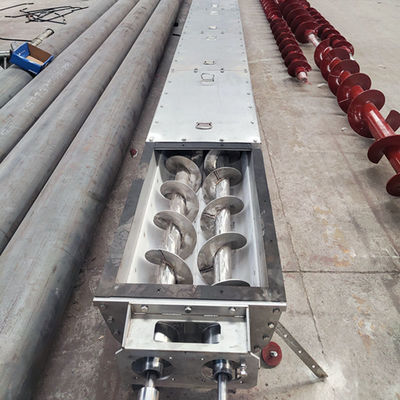

The double-shaft screw conveyor features a solid screw in a U-shaped groove configuration, with one left-handed and one right-handed screw. These screws rotate through a gear pair at the shaft extension position, creating axial material movement for efficient conveying operations.

Working Principle

Material enters through the feed port and, as the rotating shaft turns, receives thrust from the helical blades. While radial components and blade friction could induce rotation, material gravity and trough friction prevent this, resulting in controlled axial movement along the trough for precise material handling.

Key Features

Left-handed and right-handed combined conveying system
Large cross-sectional area for enhanced conveying capacity
Multiple physical functions: conveying, stirring, crushing, and pushing

Technical Parameters

Serial No.	Model	Conveyance Capacity (m³/h)	Power (kw)	Groove Inner Width (mm)	Material
1	SLS100	0.1-0.5	Specifically customized according to material, conveying volume and angle	198	carbon steel/stainless steel
2	SLS150	0.3-1.5	Specifically customized according to material, conveying volume and angle	294	carbon steel/stainless steel
3	SLS200	0.8-4.0	Specifically customized according to material, conveying volume and angle	388	carbon steel/stainless steel
4	SLS250	1.5-7.5	Specifically customized according to material, conveying volume and angle	486	carbon steel/stainless steel
5	SLS300	5.0-13.00	Specifically customized according to material, conveying volume and angle	576	carbon steel/stainless steel

Scope of Application

Suitable for handling powdery, granular, and small block materials across various industries including chemical processing, environmental protection, and food production.
