Screw Auger Conveyor
Created with Pixso.

Stainless Steel Heat Resistant Customized Screw Auger Conveyor for Chemical and Mining Industries

Stainless Steel Heat Resistant Customized Screw Auger Conveyor for Chemical and Mining Industries

Brand Name: WeSeW
Model Number: AC0061
MOQ: 1 pc
Price: US$8,000~US$30,000 per pc
Payment Terms: T/T,Western Union
Supply Ability: 10,000 pieces per month
Detail Information
Place of Origin:
china
Certification:
CE/UL
Model NO.:
AC0061
Material:
Stainless Steel
Material Feature:
Heat Resistant, Fire Resistant
Application:
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition:
New
Applicable Industries:
Industry
Machinery Test Report:
Provided
Core Components:
Motor
Dimension(L*W*H):
Customized
Transport Package:
Wooden Box
Specification:
Customized
Trademark:
WESEW
Origin:
China
Supply Ability:
500000/Year
Package Size:
800.00cm * 60.00cm * 50.00cm
Package Gross Weight:
150.000kg
After-sales Service:
Provided
Warranty:
1 Year
Structure:
Conveyor System
Customization:
Available Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Packaging Details:
Wooden Case
Supply Ability:
10,000 pieces per month
Highlight:

Stainless Steel Concrete Screw Conveyor

,

Heat Resistant Concrete Screw Conveyor

,

Chemical Industry Cement Screw Conveyor

Product Description
Stainless Steel Concrete Screw Conveyor
OEM Custom Stainless Steel Auger Conveyor Machine For Cement
Applicable Industries Manufacturing Plant, Food & Beverage Factory, Farms
Structure Other
Warranty 1 Year
Machinery Test Report Provided
Core Components Motor, Other, Bearing, Gear, Gearbox
Customization Options Customize
Width or Diameter Customize
Condition New
Power 1.5 KW
Video Inspection Provided
Material Stainless Steel, SUS304/316
Product Description
Shaftless screw conveyor is a machine for conveying goods. Compared with traditional shafted screw conveyors, it features a no-central-shaft design and uses integral steel screws with pumping properties to push materials, offering outstanding advantages including strong anti-winding capability.
Product Structure
  • Polymer wear-resistant and high-temperature resistant liner
  • Thickened non-pumping 16 manganese steel blades
  • Shaft connection thickened round tube fixed
  • Reinforced concave-convex flange double-layer reinforcement
  • All copper core motor
  • Guomao reducer
Product Features
Shaftless screw conveyor is mainly composed of driving device, head assembly, casing, shaftless screw body, tank lining plate, feeding port, discharging port, cover (when necessary), base and other components.
Driving Device
When using a cycloidal pinwheel reducer or shaft-mounted hard-tooth surface gear reducer, the driving device should be positioned at the discharge port end to maintain the screw body in tension during operation.
Head Assembly
Equipped with thrust bearing to withstand axial forces generated during material conveyance.
Chassis
U-shaped or O-shaped design with rain-proof cover, available in stainless steel, carbon steel, or FRP materials.
Shaftless Spiral
Constructed from stainless steel or carbon steel materials.
Tank Liner
Available in wear-resistant plastic plate, rubber plate, or cast stone plate materials.
Inlet and Outlet
Available in square or round configurations, determined by specific application requirements.
Scope of Application
Shaftless screw conveyors are widely used across various industrial sectors including building materials, metallurgy, chemical industry, electric power, coal, machinery, light industry, and food processing. Suitable for conveying powder, granular, and small block materials such as cement, pulverized coal, grain, fertilizer, ash, sand, and coke.
Technical Drawing
Stainless Steel Heat Resistant Customized Screw Auger Conveyor for Chemical and Mining Industries 0
Product Display

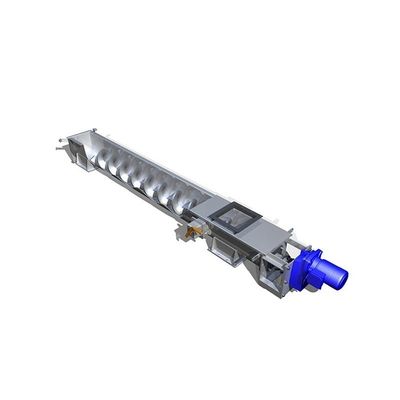

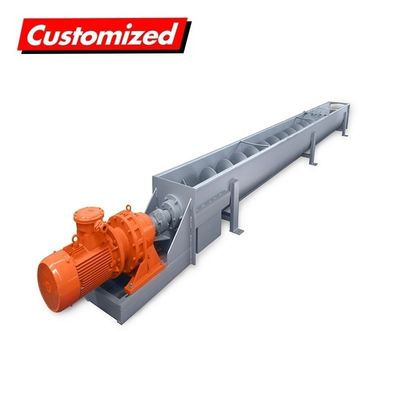

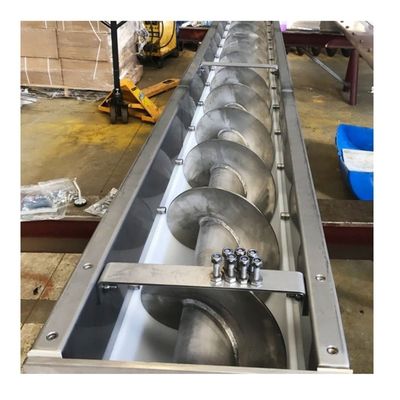

Stainless Steel Heat Resistant Customized Screw Auger Conveyor for Chemical and Mining Industries 1 Stainless Steel Heat Resistant Customized Screw Auger Conveyor for Chemical and Mining Industries 2 Stainless Steel Heat Resistant Customized Screw Auger Conveyor for Chemical and Mining Industries 3 Stainless Steel Heat Resistant Customized Screw Auger Conveyor for Chemical and Mining Industries 4 Stainless Steel Heat Resistant Customized Screw Auger Conveyor for Chemical and Mining Industries 5 Stainless Steel Heat Resistant Customized Screw Auger Conveyor for Chemical and Mining Industries 6
