Magnetic Separation Machine
Created with Pixso.

Automatic Wet Magnetic Separator Stainless Steel Energy Saving Customized Iron Remover

Automatic Wet Magnetic Separator Stainless Steel Energy Saving Customized Iron Remover

Brand Name: WeSeW
Model Number: KX0006-1
MOQ: 1 pc
Price: US$10,000~US$100,000 per pc
Payment Terms: T/T,Western Union
Supply Ability: 10,000 pieces per month
Detail Information
Place of Origin:
china
Certification:
CE/UL
Model NO.:
KX0006-1
Material:
Stainless Steel
Material Feature:
Heat Resistant
Energy Saving:
Energy Saving
Warranty:
1 Year
Color:
Customized
Customized:
Customized
Condition:
New
After-sales Service:
Provided
Product Name:
Magnetic Filter Automatic Iron Remover
Applicable Industries:
Energy & Mining, Other
Machinery Test Report:
Provided
Core Components:
Motor, Pump, PLC, Coil, Media Net, Iron Discharge
Dimension(L*W*H):
Customized
Transport Package:
Wooden Box
Specification:
Customized
Trademark:
WESEW
Origin:
China
Supply Ability:
500000/Year
Package Size:
500.00cm * 60.00cm * 50.00cm
Package Gross Weight:
150.000kg
Type:
Magnetic Separator
Voltage:
Customized
Weight:
Customized
Customization:
Available Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Packaging Details:
Wooden Case
Supply Ability:
10,000 pieces per month
Highlight:

Automatic Wet Magnetic Separator

,

Energy Saving Wet Magnetic Separator

,

Heat Resistant Dry Magnetic Separator

Product Description
Automatic Wet Magnetic Separator
High-performance automatic wet magnetic separator designed for efficient iron removal from slurry materials in mining and industrial applications.
Product Specifications
Applicable Industries Energy & Mining, Other
Type Magnetic Separator
Voltage Support customization
Video Inspection Provided
Core Components Motor, Pump, PLC, Coil, Media Net, Iron Discharge System
Color Custom required
Condition New
Dimensions (L×W×H) Support customization
Warranty 1 Year
Test Report Provided
Packing Wooden box
Working Principle
The separator operates by placing a matrix net inside the working chamber surrounded by a screw coil. AC power is converted to DC excitation power through a silicon rectifier control system. When the coil is energized, the matrix becomes magnetized, creating a non-uniform magnetic field with high gradient characteristics on the matrix surface. As slurry passes through the matrix, magnetic particles are captured while non-magnetic materials flow through the chamber, effectively separating magnetic from non-magnetic components.
Product Features
  • Designed for positive and negative powder materials with advanced magnetic separation technology
  • Magnetic system features large wrap angle and multiple magnetic poles for optimal performance
  • Uniform magnetic flux density distribution throughout the separation area
  • Customizable field strengths to accommodate different ore properties
  • Efficient separation without gravity effect and raw material resistance
  • Integrated mechanical vibration device enhances iron removal effectiveness
  • Simplified iron discarding process for operational efficiency
Product Display

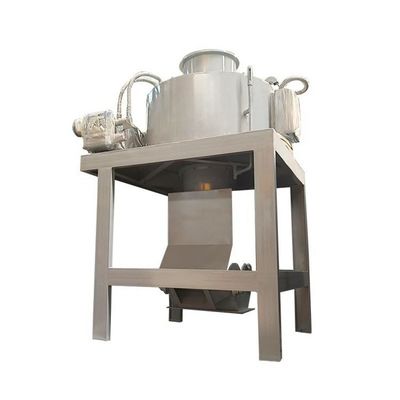

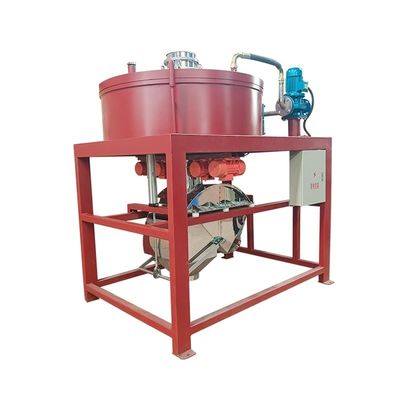

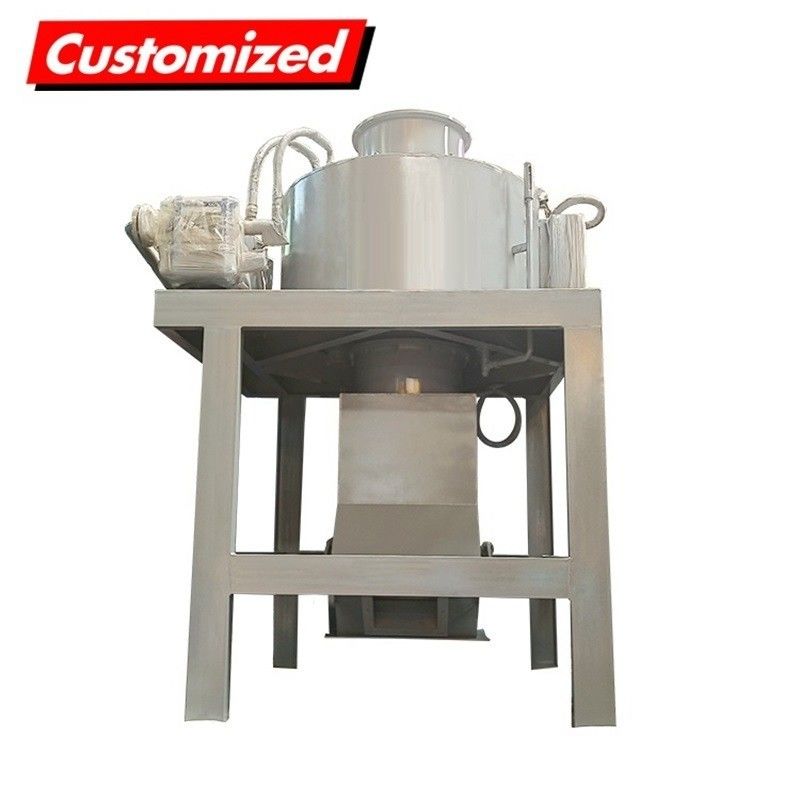

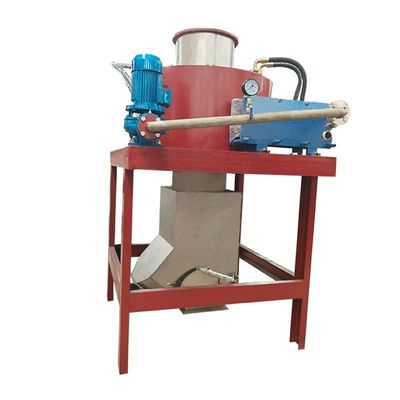

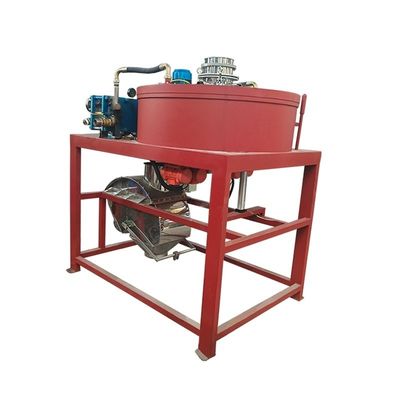

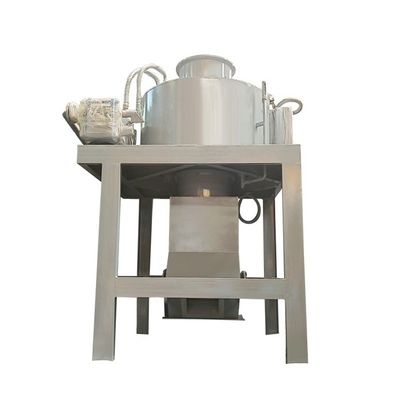

Automatic Wet Magnetic Separator Stainless Steel Energy Saving Customized Iron Remover 0 Automatic Wet Magnetic Separator Stainless Steel Energy Saving Customized Iron Remover 1 Automatic Wet Magnetic Separator Stainless Steel Energy Saving Customized Iron Remover 2 Automatic Wet Magnetic Separator Stainless Steel Energy Saving Customized Iron Remover 3 Automatic Wet Magnetic Separator Stainless Steel Energy Saving Customized Iron Remover 4
