Customized High-Accuracy Nitrided Screw Barrel for Granulation Extruder Machine

Customized High-Accuracy Nitrided Screw Barrel for Granulation Extruder Machine

Brand Name:	WeSeW
Model Number:	AS0040
MOQ:	1 pc
Price:	US$200~US$1,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Product Type:

Profile Extrusion Molding Machine

Assembly Structure:

Integral Type Extruder

Engagement System:

Full Intermeshing

Exhaust:

Exhaust

Computerized:

Computerized

Service:

OEM/ ODM

Dimension(L*W*H):

Customized

Transport Package:

Bag, Carton, Wooden Case, Customize

Trademark:

WeSeW

Production Capacity:

500000/Year

Plastic Processed:

PE, Po, PP, PVC, TPU, PBT, Pet, PLA, Etc.

Feeding Mode:

Multiple Feed

Screw:

Single-Screw

Screw Channel Structure:

Deep Screw

Automation:

Automatic

Product Name:

Screw Auger Nitride Single Twin Extruder

Surface Treatment:

Customized

Key Selling Points:

High-Accuracy

Specification:

Customized

Origin:

China

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Professional Single Screw Barrel

Injection Extrusion Single Screw Barrel

Granulation Extruder Machine Nitriding Screw Barrel

Product Description

Professional Injection Extrusion Single Screw Barrel

OEM Custom Professional Injection Extrusion Single Screw Barrel for Granulation Extruder Machine

Application	Film blower, Cast film machine
Screw barrel material	38CrMOALA, SACM645, Sprayed dual alloy, etc.
Screw diameter	Φ30-Φ150
Aspect ratio	L/D=15-35
Overall hardness	HRC58°-68°
Nitriding depth	0.4mm-0.7mm
Straightness	0.015mm-1000mm
Scope of application	PE, PO, PP, PVC, TPU, PBT, PET, PLA, etc.
Technical indicators	Conditioning time 72H, Tempering hardness HB260-290, Gas vacuum nitriding time 168H, Nitride hardness HRC62-65°
Processing method	Vacuum nitriding, high frequency quenching, alloy spraying, electroplating hard chromium layer
Condition	New
Warranty	1 Year
Package	Wooden box

Notice: We only accept product customization, please be sure to contact us before placing an order.

Product Overview

The screw is the main core component of the injection molding machine. The quality of the screw determines the quality of the product. The plasticizing screw of the injection molding machine has the functions of conveying, melting, mixing, compressing, metering and exhausting, and is a key factor affecting the quality of plasticizing.

Injection Molding Machine Screw Material Classification

HPT Fully Hardened Powder Alloy Screw: Made of tungsten-cobalt powder alloy tool steel with overall hardening. Hardness reaches HRC65°. Suitable for transparent products, precision products, and high-temperature corrosive plastics like LCP, PES, PPA with fiber.
Double Alloy Screw: Uses SACM645 and 38CrMoAlA base material with tungsten carbide nickel-based alloy spray. Surface hardness HRC60°. Suitable for transparent products and engineering materials like PA6, PA66 with fiber.
Electroplating Screw: SACM645 and 38CrMoAlA base materials with hard chromium, nickel, or titanium plating. Hardness HRC60°. Suitable for PC, PMMA, PET transparent materials and corrosive U-PVC plastics.
Stainless Steel Screw: 9Cr18MoV special stainless tool steel with overall quenching and hardening. Overall hardness HRC55°.
SKD61 Screw: Made of Hitachi SKD61 material with special processing for excellent toughness and torsion resistance.
Ordinary Nitrided Screw: SACM645 and 38CrMoAlA base materials with nitride layer depth 0.5-0.8mm and overall hardness HV980~1080°. Suitable for ordinary plastics like PP, ABS, PS, AS, PVC.

Injection Molding Machine Screw Segmentation

The screw of an injection molding machine is divided into three sections: feeding section, compression section, and homogenizing section (metering section). Different screws have varying proportions, groove depths, and transition forms.

Feeding Section: Fixed groove depth section responsible for preheating, conveying, and pushing plastic solids. Ensures plastic begins melting at the end of this section.
Compression Section: Tapering groove depth section for melting, mixing, shearing compression, and pressurized exhaust. Plastic completely dissolves here with volume shrinkage. Compression ratio design is critical.
Homogenizing Section: Fixed groove depth section for mixing, melt transportation, and metering. Provides pressure to maintain uniform melt temperature and stable flow rate.

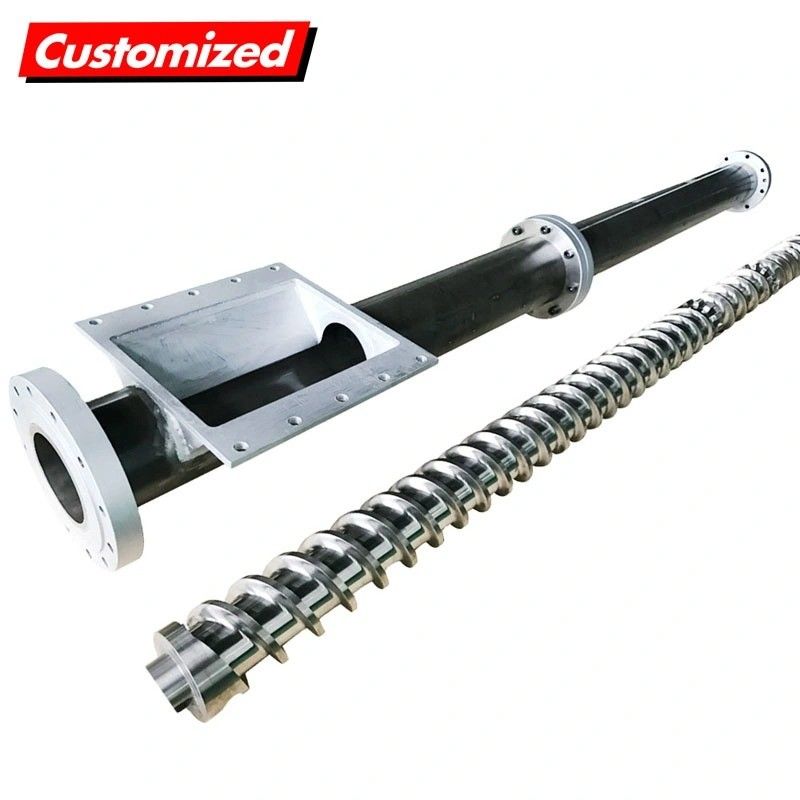

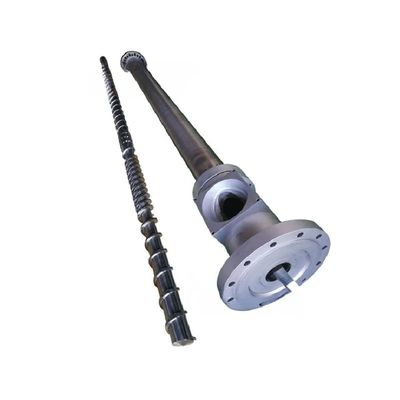

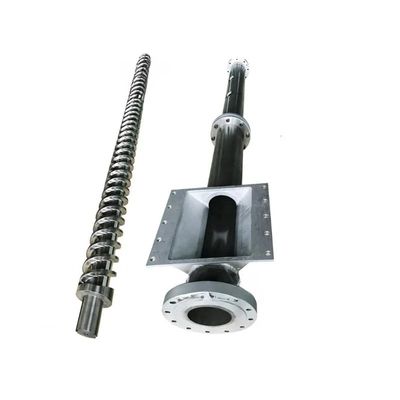

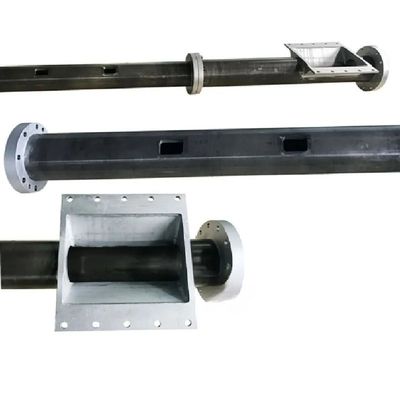

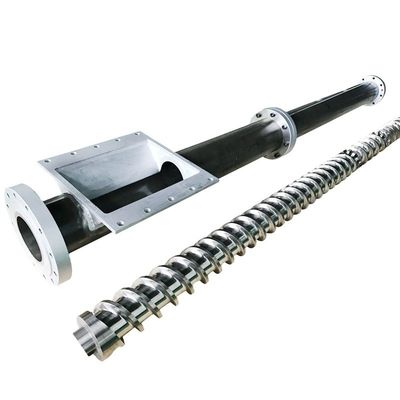

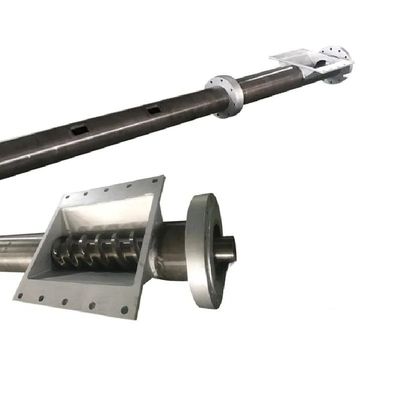

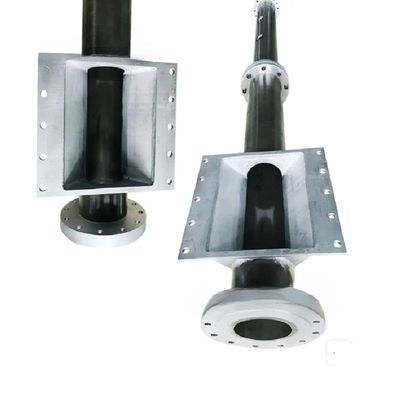

Product Images
