Customized Diameter 55 Screw Barrel for Extruder Machine for PP HDPE PPS LDPE Materials Nitrided or Bimetallic Treatment Plastic machine

Name: Customized Diameter 55 Screw Barrel for Extruder Machine for PP HDPE PPS LDPE Materials Nitrided or Bimetallic Treatment Plastic machine
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: W004
Price: 100.00 USD
Availability: InStock

Brand Name:	WeSeW
Model Number:	W004
MOQ:	1 pc
Price:	US$200~US$1,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

W004

Plastic Processed:

PE, Po, PP, PVC, TPU, PBT, Pet, PLA, Etc.

Product Type:

Profile Extrusion Molding Machine

Feeding Mode:

Multiple Feed

Assembly Structure:

Integral Type Extruder

Screw:

Single-Screw

Engagement System:

Full Intermeshing

Screw Channel Structure:

Deep Screw

Exhaust:

Exhaust

Automation:

Automatic

Computerized:

Computerized

Product Name:

Screw Barrel For Extruder Machine

Service:

OEM/ ODM

Surface Treatment:

Customized

Dimension(L*W*H):

Customized

Key Selling Points:

High-Accuracy

Transport Package:

Bag, Carton, Wooden Case, Customize

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

100.00cm * 20.00cm * 20.00cm

Package Gross Weight:

50.000kg

After-sales Service:

Provide

Warranty:

12 Months

Type:

Pipe Extruder

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Screw Design:

Plastify Extruder Single Screw Barrel

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

custom diameter 55 screw barrel

nitrided extruder screw barrel

bimetallic screw barrel for PP HDPE

Product Description

Custom Diameter 55 Screw Barrel for Extruder Machine

High-performance screw barrel designed for processing PP, HDPE, PPS, LDPE materials with nitrided or bimetallic treatment options.

Application	Film blower, Cast film machine
Screw barrel material	38CrMOALA, SACM645, Sprayed dual alloy, etc.
Screw diameter	Φ30-Φ150
Aspect ratio	L/D=15-35
Overall hardness	HRC58°-68°
Nitriding depth	0.4mm-0.7mm
Straightness	0.015mm-1000mm
Scope of application	PE, PO, PP, PVC, TPU, PBT, PET, PLA, etc.
Technical indicators	Conditioning time 72H, Tempering hardness HB260-290, Gas vacuum nitriding time 168H, Nitride hardness HRC62-65°
Processing method	Vacuum nitriding, high frequency quenching, alloy spraying, electroplating hard chromium layer
Condition	New
Warranty	1 Year
Package	Wooden box

Important Notice: We only accept product customization. Please contact us before placing an order.

Product Overview

The screw is the core component of injection molding machines, determining final product quality. Our plasticizing screws perform critical functions including conveying, melting, mixing, compressing, metering, and exhausting - all essential factors affecting plasticizing quality.

Screw Material Classification

HPT Fully Hardened Powder Alloy Screw: Made from tungsten-cobalt powder alloy tool steel with overall hardening to HRC65°. Ideal for transparent products, precision components, and high-temperature corrosive plastics like LCP, PES, PPA with fibers.
Double Alloy Screw: Base material SACM645/38CrMoAlA with tungsten carbide nickel-based alloy ion spray welding. Surface hardness HRC60°. Suitable for transparent products and engineering materials like PA6, PA66 with fibers.
Electroplating Screw: SACM645/38CrMoAlA base with hard chromium, nickel, or titanium electroplating. Hardness HRC60°. Perfect for PC, PMMA, PET transparent materials and corrosive U-PVC plastics.
Stainless Steel Screw: 9Cr18MoV special stainless tool steel with overall quenching and hardening to HRC55°.
SKD61 Screw: Hitachi SKD61 material with special processing for excellent toughness and torsion resistance.
Ordinary Nitrided Screw: SACM645/38CrMoAlA base with nitride layer depth 0.5-0.8mm and overall hardness HV980~1080°. For processing PP, ABS, PS, AS, PVC and other standard plastics.

Screw Segment Functions

Injection molding machine screws are divided into three segments: feeding section, compression section, and homogenizing section (metering section). Each segment has specific proportions, groove depths, and transition forms tailored to application requirements.

Feeding Section: Fixed groove depth for preheating, conveying, and pushing plastic solids. Ensures plastic begins melting by section end.
Compression Section: Tapering groove depth for melting, mixing, shear compression, and pressurized exhaust. Plastic completely dissolves here with volume shrinkage. Compression ratio design is critical.
Homogenizing Section: Fixed groove depth for mixing, melt transport, and metering. Maintains consistent melt temperature and stable plastic flow rates.

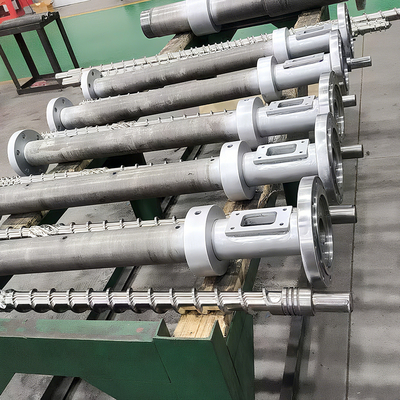

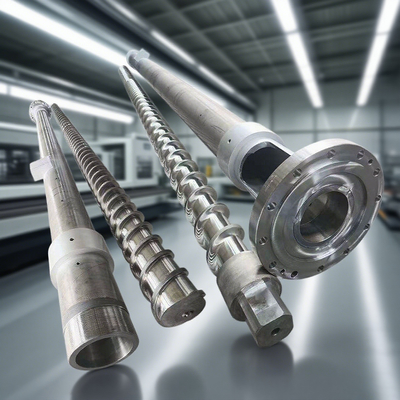

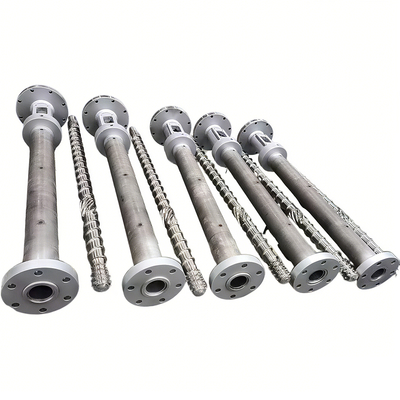

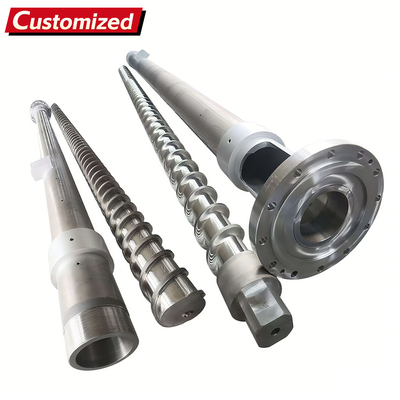

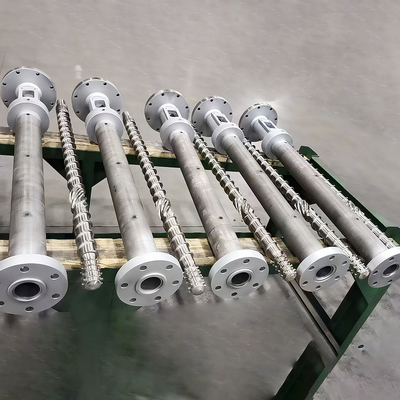

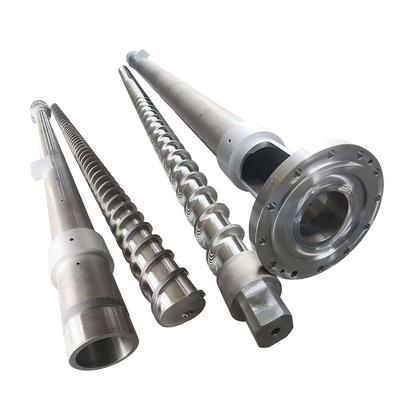

Product Gallery
