High-Accuracy Customized Nitriding Screw Barrel Set for PVC PPR with Multiple Feed Extruder

High-Accuracy Customized Nitriding Screw Barrel Set for PVC PPR with Multiple Feed Extruder

Brand Name:	WeSeW
MOQ:	1 pc
Price:	US$200~US$1,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

AS0039

Plastic Processed:

PE, Po, PP, PVC, TPU, PBT, Pet, PLA, Etc.

Product Type:

Profile Extrusion Molding Machine

Feeding Mode:

Multiple Feed

Assembly Structure:

Integral Type Extruder

Screw:

Single-Screw

Engagement System:

Full Intermeshing

Screw Channel Structure:

Deep Screw

Exhaust:

Exhaust

Automation:

Automatic

Computerized:

Computerized

Product Name:

Screw Auger Nitride Single Twin Extruder

Service:

OEM/ ODM

Surface Treatment:

Customized

Dimension(L*W*H):

Customized

Key Selling Points:

High-Accuracy

Transport Package:

Bag, Carton, Wooden Case, Customize

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

100.00cm * 20.00cm * 20.00cm

Package Gross Weight:

50.000kg

After-sales Service:

Provide

Warranty:

12 Months

Type:

Pipe Extruder

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Accuracy Extruder Nitriding Screw Barrel

Customized Extrusion Screw Barrel

Customized Extruder Screw And Barrel

Product Description

Accuracy Extruder Nitriding Screw Barrel Customized For PVC PPR Multiple Feed

OEM Custom High Quality Extruder Biometalic Screw & Nitriding Barrel for PPDE PP PVC PPR

Application	Film blower, Cast film machine
Screw barrel material	38CrMOALA, SACM645, Sprayed dual alloy, etc.
Screw diameter	Φ30-Φ150
Aspect ratio	L/D=15-35
Overall hardness	HRC58°-68°
Nitriding depth	0.4mm-0.7mm
Straightness	0.015mm-1000mm
Scope of application	PE, PO, PP, PVC, TPU, PBT, PET, PLA, etc.
Technical indicators	Conditioning time 72H, Tempering hardness HB260-290, Gas vacuum nitriding time 168H, Nitride hardness HRC62-65°
Processing method	Vacuum nitriding, high frequency quenching, alloy spraying, electroplating hard chromium layer
Condition	New
Warranty	1 Year
Package	Wooden box

Notice: We only accept product customization, please be sure to contact us before placing an order.

Product Overview

The screw is the main core component of the injection molding machine. The quality of the screw determines the quality of the product. The plasticizing screw of the injection molding machine has the functions of conveying, melting, mixing, compressing, metering and exhausting, and is a key factor affecting the quality of plasticizing.

Injection Molding Machine Screw Material Classification

HPT Fully Hardened Powder Alloy Screw: Made of tungsten-cobalt powder alloy tool steel and integrally hardened by special process. Overall hardness reaches HRC65°. Suitable for transparent products, precision products, and high-temperature corrosive plastics like LCP, PES, PPA with fiber.
Double Alloy Screw: Uses SACM645 and 38CrMoAlA base material with tungsten carbide nickel-based alloy ion spray weld. Surface hardness around HRC60°. Suitable for transparent products and engineering materials like PA6, PA66 with fiber.
Electroplating Screw: SACM645 and 38CrMoAlA base materials with hard chromium, nickel, titanium electroplating. Hardness around HRC60°. Suitable for PC, PMMA, PET transparent materials and corrosive U-PVC materials.
Stainless Steel Screw: 9Cr18MoV special stainless tool steel with overall quenching + hardening. Overall hardness around HRC55°.
SKD61 Screw: Hitachi SKD61 material with special processing for good toughness and strong torsion resistance.
Ordinary Nitrided Screw: SACM645 and 38CrMoAlA base material with special process. Nitride depth 0.5-0.8mm, overall hardness HV980~1080°. Suitable for PP, ABS, PS, AS, PVC and other ordinary plastics.

Injection Molding Machine Screw Segmentation

The screw of an injection molding machine is generally divided into feeding section, compression section, and homogenizing section (metering section). Different screws have varying proportions, screw groove depths, and bottom diameter transition forms.

Feeding Section: Fixed screw groove depth responsible for preheating, conveying and pushing plastic solids. Ensures plastic begins melting at the end of the feed section.
Compression Section: Tapering screw groove depth for melting, mixing, shearing compression and pressurized exhaust. Plastic completely dissolves here with volume shrinkage. Compression ratio design is critical.
Homogenizing Section: Fixed screw groove depth for mixing, melt transportation, and metering. Provides sufficient pressure to maintain uniform melt temperature and stable flow rate.

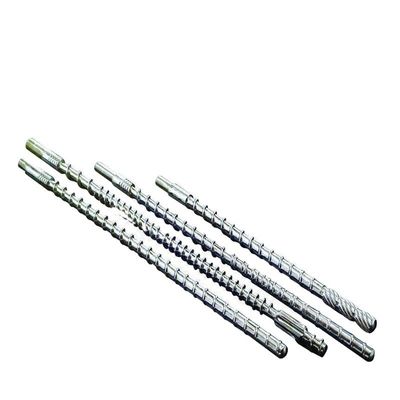

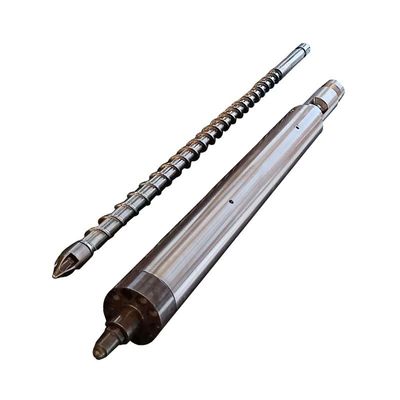

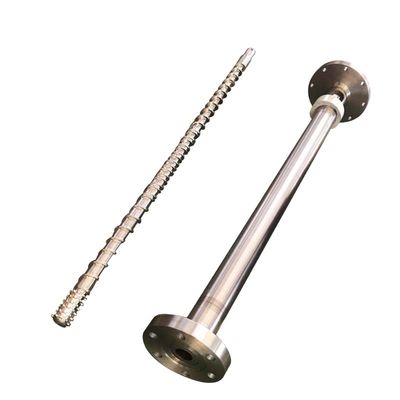

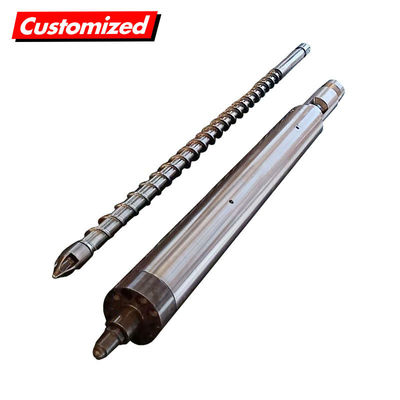

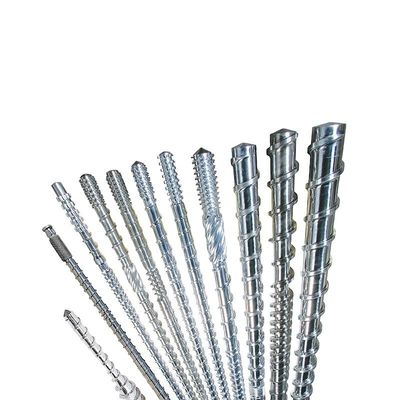

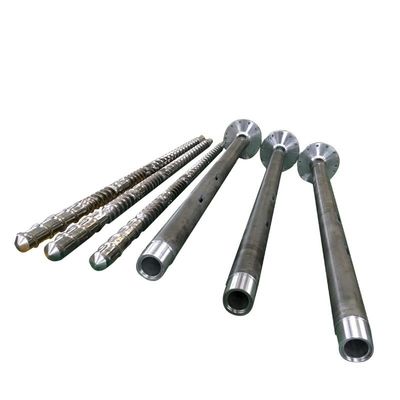

Product Display
