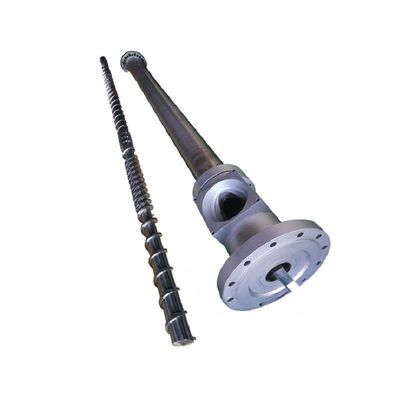

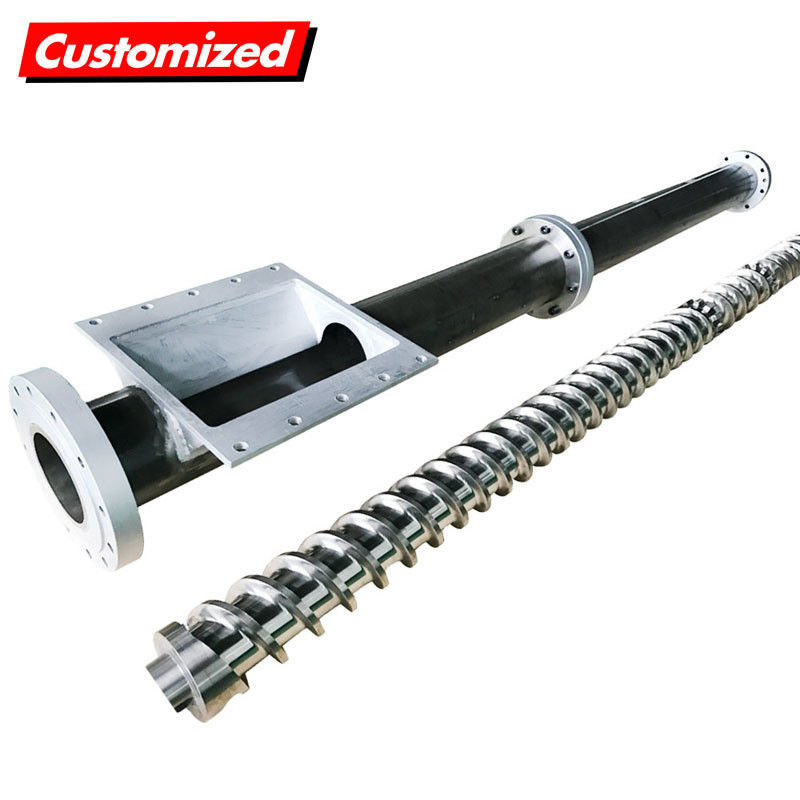

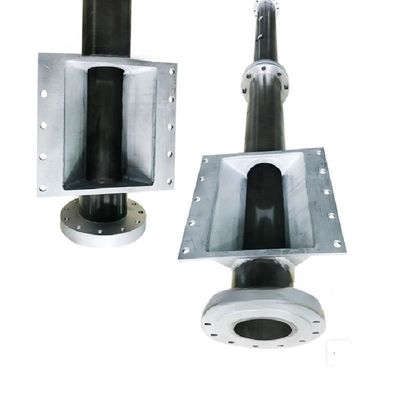

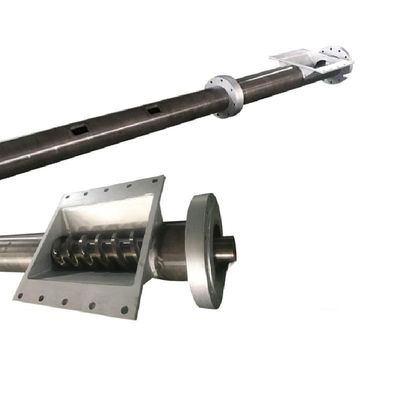

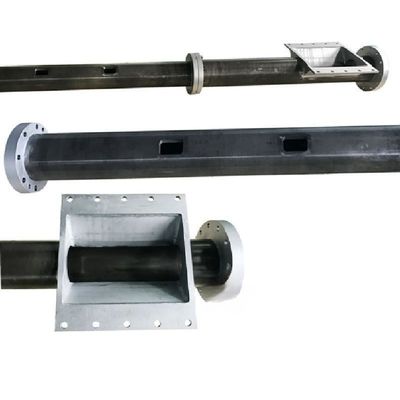

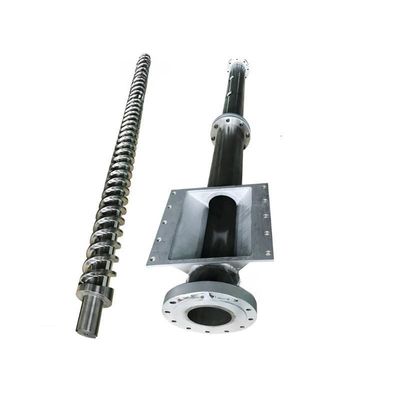

High-Accuracy Customized Nitrided Screw Barrel Set for Granulation Extruder Machine

High-Accuracy Customized Nitrided Screw Barrel Set for Granulation Extruder Machine

Brand Name:	WeSeW
MOQ:	1 pc
Price:	US$200~US$1,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

AS0040

Plastic Processed:

PE, Po, PP, PVC, TPU, PBT, Pet, PLA, Etc.

Product Type:

Profile Extrusion Molding Machine

Feeding Mode:

Multiple Feed

Assembly Structure:

Integral Type Extruder

Screw:

Single-Screw

Engagement System:

Full Intermeshing

Screw Channel Structure:

Deep Screw

Exhaust:

Exhaust

Automation:

Automatic

Computerized:

Computerized

Product Name:

Screw Auger Nitride Single Twin Extruder

Service:

OEM/ ODM

Surface Treatment:

Customized

Dimension(L*W*H):

Customized

Key Selling Points:

High-Accuracy

Transport Package:

Bag, Carton, Wooden Case, Customize

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

100.00cm * 20.00cm * 20.00cm

Package Gross Weight:

50.000kg

After-sales Service:

Provide

Warranty:

12 Months

Type:

Pipe Extruder

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Professional Screw Barrel Set

Injection Extrusion Screw Barrel Set

Injection Extrusion Nitriding Screw Barrel

Product Description

Injection Extrusion Screw Barrel Set for Granulation Extruder Machine

Professional OEM custom injection extrusion single screw barrel designed for optimal performance in granulation extruder machines.

Technical Specifications

Parameter	Specification
Application	Film blower, Cast film machine
Screw Barrel Material	38CrMOALA, SACM645, Sprayed dual alloy, etc.
Screw Diameter	Φ30-Φ150
Aspect Ratio	L/D=15-35
Overall Hardness	HRC58°-68°
Nitriding Depth	0.4mm-0.7mm
Straightness	0.015mm-1000mm
Scope of Application	PE, PO, PP, PVC, TPU, PBT, PET, PLA, etc.
Technical Indicators	Conditioning time 72H, Tempering hardness HB260-290, Gas vacuum nitriding time 168H, Nitride hardness HRC62-65°
Processing Method	Vacuum nitriding, high frequency quenching, alloy spraying, electroplating hard chromium layer
Condition	New
Warranty	1 Year
Package	Wooden box

Important Notice: We only accept product customization. Please contact us before placing an order.

Product Overview

The screw is the main core component of the injection molding machine. The quality of the screw determines the quality of the final product. The plasticizing screw performs essential functions including conveying, melting, mixing, compressing, metering and exhausting, making it a critical factor in plasticizing quality.

Screw Material Classification

HPT Fully Hardened Powder Alloy Screw: Made of tungsten-cobalt powder alloy tool steel with overall hardening. Uniform hardness of HRC65° throughout. Suitable for transparent products, precision items, and high-temperature corrosive plastics like LCP, PES, PPA with fiber.
Double Alloy Screw: Base material SACM645 and 38CrMoAlA with tungsten carbide nickel-based alloy ion spray weld. Surface hardness HRC60°. Ideal for transparent products and engineering materials like PA6, PA66 with fiber.
Electroplating Screw: Base materials SACM645 and 38CrMoAlA with hard chromium, nickel, or titanium electroplating. Hardness HRC60°. Suitable for PC, PMMA, PET transparent materials and corrosive U-PVC plastics.
Stainless Steel Screw: 9Cr18MoV special stainless tool steel with overall quenching and hardening. Overall hardness HRC55°.
SKD61 Screw: Hitachi SKD61 material with special processing for excellent toughness and torsion resistance.
Ordinary Nitrided Screw: Base materials SACM645 and 38CrMoAlA with nitride layer depth 0.5-0.8mm and overall hardness HV980~1080°. Suitable for PP, ABS, PS, AS, PVC and other standard plastics.

Screw Segment Functions

Feeding Section

Fixed screw groove depth section responsible for preheating, conveying and pushing plastic solids. Ensures plastic begins melting at the end of this section.

Compression Section

Tapering screw groove depth section handling melting, mixing, shear compression and pressurized exhaust. Plastic completely dissolves here with volume shrinkage. Compression ratio design is critical.

Homogenizing Section (Metering Section)

Fixed screw groove depth section for mixing, melt transportation and metering. Provides sufficient pressure to maintain uniform melt temperature and stable plastic flow rate.

Product Display
