Heat Resistant Customized High Efficiency Screw Auger Conveyor for Chemical Industry

Name: Heat Resistant Customized High Efficiency Screw Auger Conveyor for Chemical Industry
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: Kai001
Price: 19.00 USD
Availability: InStock

Brand Name:	WeSeW
Model Number:	Kai001
MOQ:	1 pc
Price:	US$8,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

Kai001

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Machinery Test Report:

Provided

Usage:

Conveyor

Width Or Diameter:

Customized

Dimension(L*W*H):

Customized

Function:

Transmission System

Feature:

High Efficiency

Speed:

High Speed

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

800.00cm * 50.00cm * 50.00cm

Package Gross Weight:

200.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Conveyor System

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Carbon Steel Screw Auger Conveyor

Heat Transport Screw Auger Conveyor

Chemical Industry Heating Screw Conveyor

Product Description

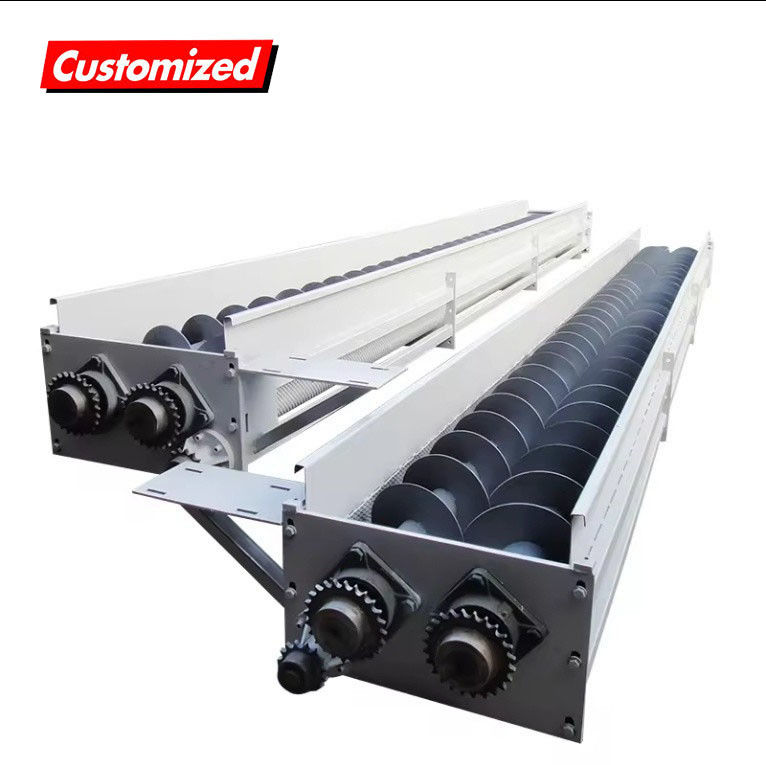

Carbon Steel Heat Transport Screw Auger Conveyor For Chemical Industry

OEM Custom Cooling or Heating U-Trough Double Auger Screw Conveyor

Auger Types	Single/Twin/Multi screw
Instrumentation	Temperature in/out readout, Flowmeters, Variety of pressure gauges available, Customized control panels
Seal Types	Rotating Mechanical, Packing Gland, Custom
Heaters/Coolers	Single, dual or triple zone configurations, -50°F to 600°F temperature control, Designed for your needs
Jacket Types	Heating jackets, Cooling jackets, Integral or bolt-on, ASME "U" and "R" stamp
Customization	Inlet and outlet custom designs, Built-to-order support stands, NDE and X-ray options, Various insulation options
Sample Applications	Drying, Polymerization, Heat curing, Cooling/freezing, Microbial kill, Sintering/calcining, Dewatering

Product Overview

Heat Systems screw conveyors are simple, robust and flexible, often employed to adjust the temperature of solid materials prior to storage or further processing. The unit is essentially a screw conveyor with heat transfer capability, providing both material movement and temperature adjustment in one device.

Unlike conventional systems that rely solely on external jackets with limited material contact due to voidage and movement, our screw conveyors utilize the screw itself to supply or withdraw heat. This design penetrates deep into solids that are often poor conductors (such as spent carbon), resulting in a more compact footprint and reduced costs.

A liquid heat transfer medium ensures stable and precise control of final product temperature (using cooling water, thermal oil, glycol, etc.). Custom screw conveyor designs are available to suit your individual requirements.

Key Features

Thermal treatment during material conveyance for cost savings

Precise temperature control during material transfer for maximum efficiency

Accurate control of thermal treatment time to meet precise requirements

Greater heat transfer surface area per unit of product than batch mixer systems

Bolt-on or integral external thermal heating and cooling jacket

Technical Advantages

Efficient Heat Transfer

Full heat surface utilization with both heated vessel and rotor. Short-pitch screw design promotes gentle material tumbling for uniform and efficient heat transfer.

Residence Time Control

Near plug-flow operation ensures consistent time and temperature exposure with controlled, narrow residence time distribution.

Minimize Processing Damage

Even treatment and slow mixing action prevents burning, sticking, abrasion, dusting, crushing, or breaking of materials.

Thick Material Processing

Twin-rotor designs process difficult, dough or paste-like materials. Intermeshing flights promote even heat transfer while preventing sticking and enabling self-cleaning.

Steam Injection

Optional injection capabilities for steam injection into material for cooking or sterilizing applications.

Operating Cost Savings

Material is heated, cooled, mixed, or dried during conveyance, resulting in lower costs, increased efficiency and no product damage or spillage.

Industry Applications

Heating and cooling screw conveyors are used globally in industries including biomass conversion, paper and pulp, biofuels, food and dairy, chemicals, petrochemicals, minerals processing, and many more.
