Screw Auger Feeder
Created with Pixso.

PLC Controlled Twin Screw Auger Feeder with Deep Screw Channel and Customizable Output Capacity for Continuous Material Conveying

PLC Controlled Twin Screw Auger Feeder with Deep Screw Channel and Customizable Output Capacity for Continuous Material Conveying

Brand Name: WeSeW
Model Number: kz feeder002
MOQ: 1 pc
Price: Price Negotiation
Payment Terms: T/T,Western Union
Supply Ability: 10,000 pieces per month
Detail Information
Place of Origin:
china
Certification:
CE/UL
Specification:
Customized
Screw Channel Structure:
Deep Screw
Control System:
PLC
Applicable:
Cement, Grain, Food, Waster Water Etc.
Size:
Customizable
Transport Package:
Wooden Box
Core Components:
Motor, Gearbox, Casing, Circle Blade
Output Capacity:
Customized
Packaging Details:
Wooden Case
Supply Ability:
10,000 pieces per month
Highlight:

PLC Controlled Screw Auger Feeder

,

Micro Plastic Screw Auger Feeder

,

Continuous Conveyor Screw Auger Feeder

Product Description
Micro Plastic Forced Hopper Twin Screw Auger Continuous Conveyor Pellet Powder Material Loss In Weight Feeder
This advanced loss-in-weight feeder system features a twin screw auger design with forced hopper technology, providing precise continuous conveying and metering of pellet and powder materials across various industrial applications.
Auger Screw Feeder Function
The auger screw feeder efficiently conveys bulk materials including powders, granules, and small lumps such as coal dust, cement, ash residue, and grain. Utilizing rotating auger blades, it provides continuous, uniform material transport from intake to discharge points.
As a precision metering device, the feeder controls material flow rates by regulating auger rotation speed and adjusting structural parameters. This capability is essential for applications requiring exact material measurement in chemical, food, and pharmaceutical processing.
During operation, the auger blades provide material mixing and homogenization while accommodating diverse working conditions including high temperatures, humidity, and corrosive environments.
Industry Applications
  • Chemical Industry: Conveys pigments, resins, and corrosive materials including sulfuric and nitric acid preparations. Prevents clogging while handling sticky or fine materials.
  • Building Materials: Transports cement, sand, gravel, and fly ash with enclosed design to minimize spillage and maintain clean operations.
  • Food Industry: Handles grain, flour, sugar, and salt with hygienic construction suitable for cleaning and sterilization requirements.
  • Metallurgical Industry: Controls feed rates and mixing ratios for iron ore, coke, and other smelting materials to ensure process stability.
  • Pharmaceutical Industry: Provides precise metering of raw materials and formulations for pharmaceutical production processes.
Technical Specifications
Attribute Specification
Material Compatibility Powder and Granules
Core Selling Point Competitive Pricing
Feeding Range Granules, free-flowing powders, etc.
Feed Rate 3-30 Liters per Hour (3-30 L/h)
Feeding Accuracy Greater than or Less than 0.5%
Hopper Size 10 Liters (10 L)
Screw Size 10 (Diameter)
Weighing Sensor Mettler Toledo
Internal Resolution of Weighing Chip 1/2 Million
Screw Diameter Customizable (mm)
Screw L/D Ratio 22:1

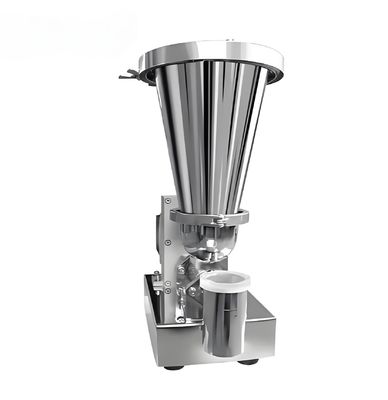

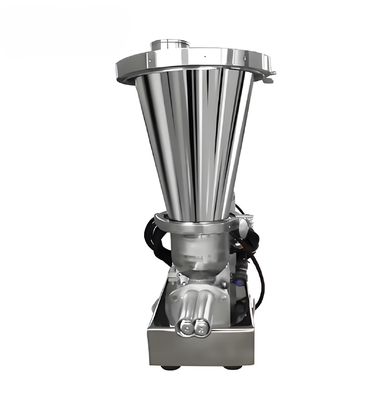

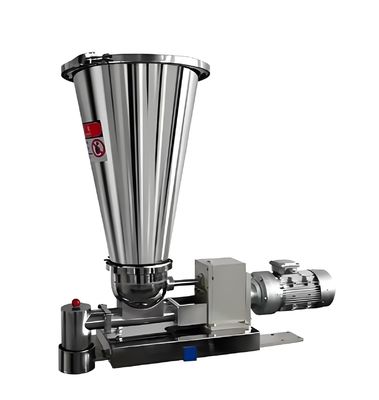

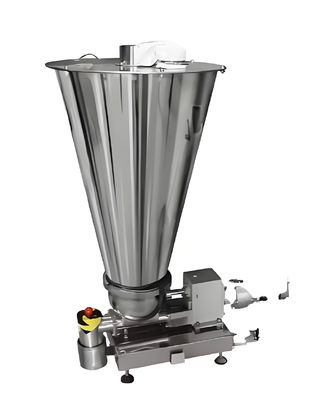

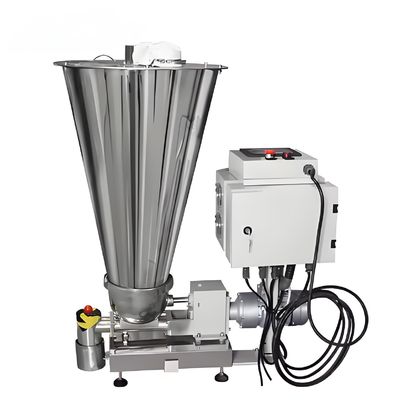

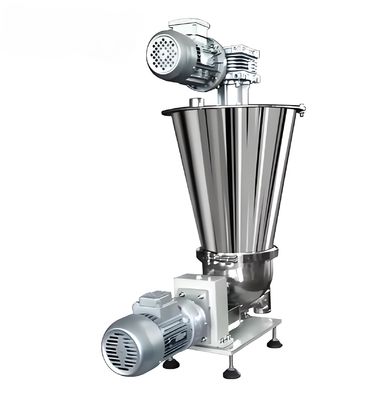

Product Images
PLC Controlled Twin Screw Auger Feeder with Deep Screw Channel and Customizable Output Capacity for Continuous Material Conveying 0 PLC Controlled Twin Screw Auger Feeder with Deep Screw Channel and Customizable Output Capacity for Continuous Material Conveying 1 PLC Controlled Twin Screw Auger Feeder with Deep Screw Channel and Customizable Output Capacity for Continuous Material Conveying 2 PLC Controlled Twin Screw Auger Feeder with Deep Screw Channel and Customizable Output Capacity for Continuous Material Conveying 3 PLC Controlled Twin Screw Auger Feeder with Deep Screw Channel and Customizable Output Capacity for Continuous Material Conveying 4
