Custom Industrial Commercial Juicer/Juice Extractor/Orange Juicer Suitable for juicing apples, pears, watermelons, grapes, oranges, and various other fruits.

Custom Industrial Commercial Juicer/Juice Extractor/Orange Juicer Suitable for juicing apples, pears, watermelons, grapes, oranges, and various other fruits.

Brand Name:	WeSeW
Model Number:	AC0075
MOQ:	1pcs
Price:	US$200~US$1000/pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,UL

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Core Components:

Motor

Product Name:

Commercial Stainless Steel Fruit And Vegetable Juicer

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

commercial fruit juicer machine

industrial orange juice extractor

heavy-duty juicer for apples

Product Description

Custom Industrial Commercial Juicer/Juice Extractor

High-performance industrial juicing equipment designed for extracting juice from apples, pears, watermelons, grapes, oranges, and various other fruits with maximum efficiency and yield.

Key Features

Automatic water slag separation system
High juice yield extraction technology
High-pressure pressing force capability
Rapid juice extraction process
Integrated juice extraction, dehydration, filtration, and pressing

Technical Operation

This industrial juicing system combines a crusher unit with a spiral juicer for optimal performance. The crusher, mounted directly above the juicer feed port, processes materials that then flow directly into the juicing mechanism.

Crusher Components

The crusher assembly includes a cylinder, high-speed flying knife rotor, bottom knife, motor, and pulley system. The rotating knife rotor operates within precise clearance to the bottom knife, creating an efficient cutting action that prepares materials for optimal juice extraction.

Juicer Construction

The juicer consists of a front support structure, feed hopper, precision spiral mechanism, filtration system, juice collection container, rear support, and dedicated slag discharge chute for continuous operation.

Working Principle

During operation, the motor drives the main shaft at constant speed via pulley transmission. Materials are initially chopped by high-speed rotating hammers and, through centrifugal force, pass through waist-shaped screen openings. This process reduces fruits and vegetables to 2-5mm particles before entering the spiral juicing system.

The spiral component features a gradually increasing bottom diameter and decreasing pitch toward the slag outlet. As materials advance through the spiral, the reduced cavity volume creates progressive compression. Raw materials fed into the hopper are pressed by the advancing screw, with extracted juice flowing through the filter into collection containers while waste materials discharge through the adjustable annular gap between screw and pressure-regulating cone.

Technical Specifications

Model	Capacity (kg/h)	Power	Dimensions	Feed Inlet	Juice Outlet Tube	Slag Discharge Opening Width
DRB-PS0.5T	300-500	3+2.2	11004501550	170135140	DN30	140
DRB-PS1.5T	800-1500	1.5+4	15605801470	170135140	DN30	140

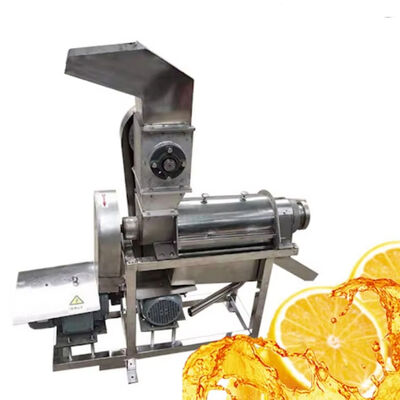

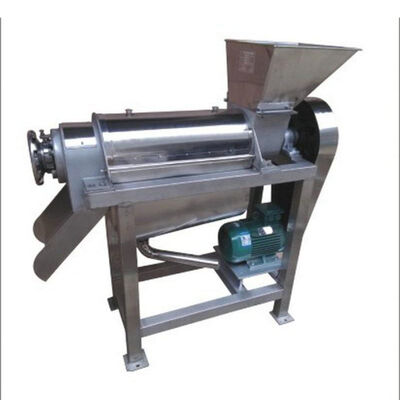

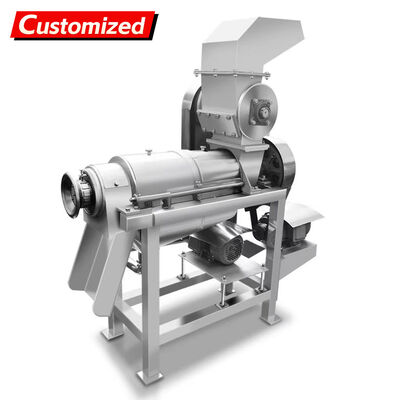

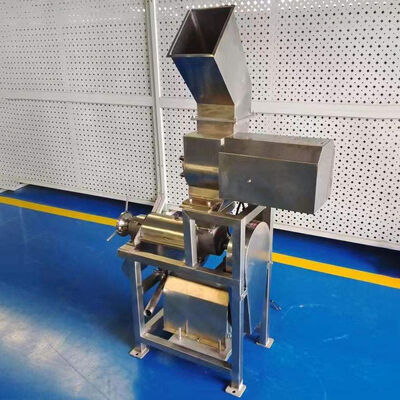

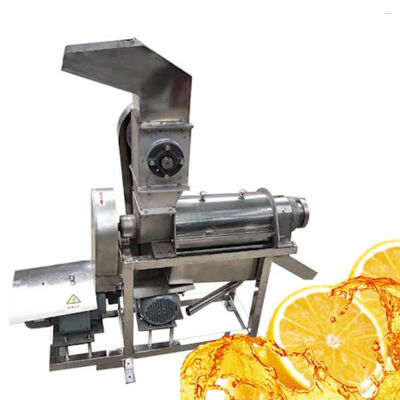

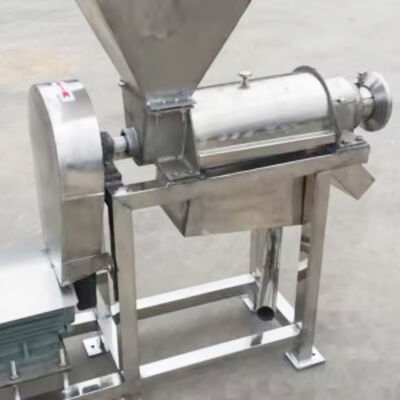

Product Images
