Customizable Double-Door Distribution Panel with IP54 Protection and Hot-Dip Galvanized Steel for Indoor and Outdoor Use

Customizable Double-Door Distribution Panel with IP54 Protection and Hot-Dip Galvanized Steel for Indoor and Outdoor Use

Brand Name: WeSeW
MOQ: 1pcs
Price: US$200~US$1000/pc
Payment Terms: T/T,Western Union
Supply Ability: 10,000 pieces per month
Detail Information
Place of Origin:
China
Certification:
CE,UL
Application:
Outdoor, Industrial, Electric Power Transmission
Power Phase Number:
Waterproof Distribution Box
Nominal Voltage:
220V/380V
Packaging Details:
Wooden Case
Supply Ability:
10,000 pieces per month
Highlight:

Double-Door Design Distribution Panel

,

IP54 Protection Switchgear

,

Hot-Dip Galvanized Steel Electrical Enclosure

Product Description

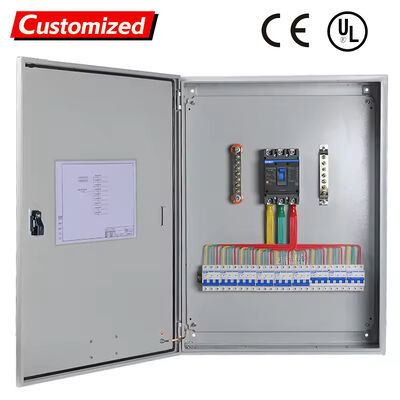

Customizable Three-Phase Distribution Panels
Customizable three-phase distribution panels, double-door distribution panels for shopping malls, fire protection cabinets with inner and outer doors, and low-voltage switchgear suitable for primary and secondary distribution equipment in both indoor and outdoor environments.
Product Name Control Box Set
Installation Type Surface Mounted/Outdoor
Box Material High Quality Hot-Dip Galvanized Steel Plate
Panel Material Steel
Protection Level IP54

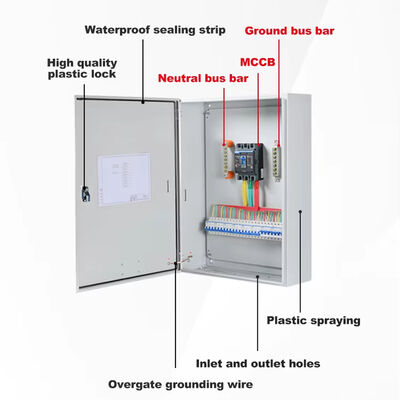

These distribution panels are manufactured from hot-dip galvanized sheet metal that is pressed and welded, with surfaces sealed and baked using high-temperature epoxy resin electrostatic spraying for an attractive and durable finish. The strong sealing design provides excellent protection against dust and rainwater infiltration. With IP54 protection rating, the enclosure features outlet holes with cover plates and includes mounting plates for easy installation of electrical equipment.
Suitable for both indoor and outdoor installation, these products are available in diverse specifications that can be customized according to electrical component installation requirements, ensuring perfect integration with your electrical systems.
Double-Door Distribution Box Features
Structural Design

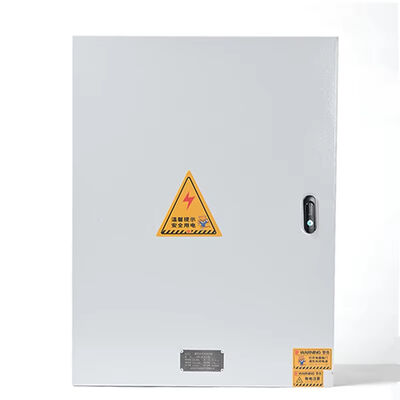

Features a double-door structure where the outer door provides protective functionality while the inner door allows clear visibility of internal component layout, balancing safety with operational convenience. The light gray enclosure features a corrosion-resistant surface finish suitable for various installation environments.
Specifications

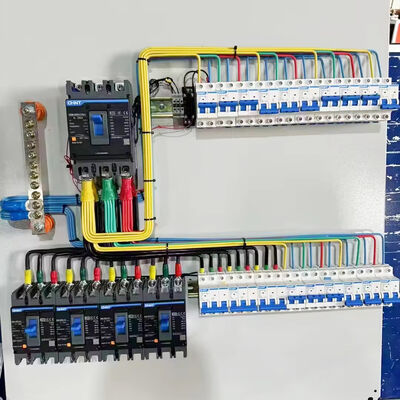

Common dimensions are 400×300×200mm (W×H×D). Supports surface-mounted installation for indoor low-voltage distribution scenarios, accommodating multiple switches and circuits.
Safety Features
  • Built-in insulating partitions effectively prevent electric shock risks

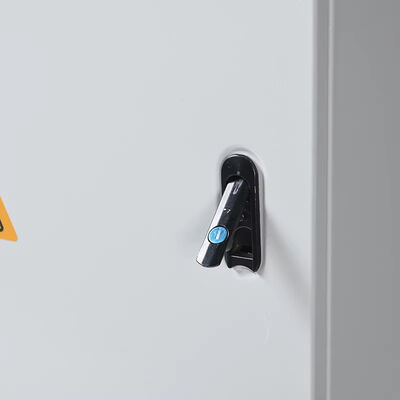

  • Door lock design prevents unauthorized operation
  • Complies with electrical safety standards
Applications
Widely used for lighting and power control in residential buildings, shopping malls, office buildings, and similar settings. Supports customized configurations to meet diverse electrical requirements.
