OEM Customized Stainless Steel High Efficiency Thermal Screw Conveyor for Chemical and Mining Industries

Name: OEM Customized Stainless Steel High Efficiency Thermal Screw Conveyor for Chemical and Mining Industries
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: CH0006
Price: 30.00 USD
Availability: InStock

Brand Name:	WeSeW
Model Number:	CH0006
MOQ:	1 pc
Price:	US$10,000~US$50,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

CH0006

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Machinery Test Report:

Provided

Usage:

Conveyor

Width Or Diameter:

Customized

Dimension(L*W*H):

Customized

Function:

Transmission System

Feature:

High Efficiency

Speed:

High Speed

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

600.00cm * 60.00cm * 50.00cm

Package Gross Weight:

200.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Conveyor System

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

OEM Customized Thermal Screw Conveyor

Heat Resistant Thermal Screw Conveyor

High Speed Electrically Heated Screw Conveyor

Product Description

OEM Customized Thermal Screw Conveyor

Heat Systems thermal screw conveyors provide efficient material movement and precise temperature control in a single, compact unit. These custom-engineered systems combine heating, cooling, and conveying capabilities for optimal process efficiency.

Technical Specifications

Auger Types	Single/Twin/Multi screw
Instrumentation	Temperature in/out readout, Flowmeters, Pressure gauges, Custom control panels
Seal Types	Rotating Mechanical, Packing Gland, Custom designs
Heaters/Coolers	Single, dual or triple zone configurations, -50°F to 600°F temperature range
Jacket Types	Heating jackets, Cooling jackets, Integral or bolt-on, ASME "U" and "R" stamp
Customization	Custom inlet/outlet designs, Built-to-order support stands, NDE and X-ray options, Various insulation options

Sample Applications

Drying and dewatering processes
Polymerization and heat curing
Cooling and freezing operations
Microbial kill sterilization
Sintering and calcining

Key Features

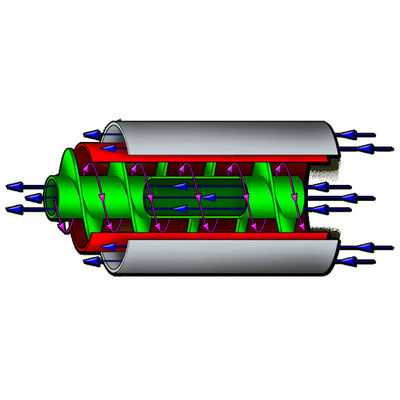

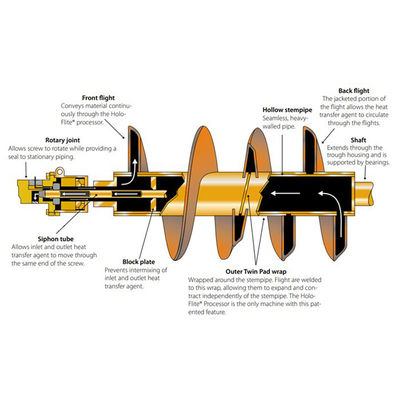

Efficient Heat Transfer

Full heat surface utilization with heated vessel and rotor. Short-pitch screw design promotes gentle material tumbling for uniform heat distribution.

Precise Residence Time Control

Near plug-flow operation ensures consistent time and temperature exposure with narrow residence time distribution.

Gentle Material Handling

Slow mixing action minimizes burning, sticking, abrasion, dusting, crushing, or breaking of sensitive materials.

Thick Material Processing

Twin-rotor designs handle difficult, dough or paste-like materials with intermeshing flights that prevent sticking.

Steam Injection Capability

Optional steam injection for cooking or sterilizing applications with precise control.

Operating Cost Savings

Combined heating, cooling, mixing, and conveying functions reduce costs while increasing efficiency.

Industry Applications

Our thermal screw conveyors serve diverse industries including biomass conversion, paper and pulp, biofuels, food and dairy processing, chemicals, petrochemicals, and minerals processing.

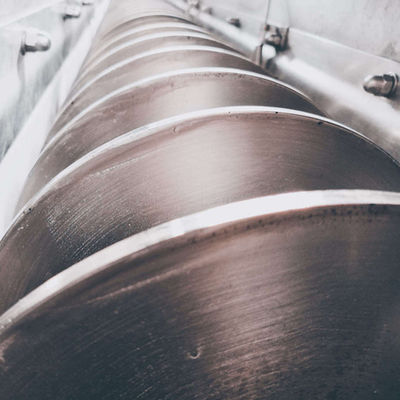

Product Display
