Stainless Steel Thermal Screw Conveyor CH0003 Heat Transfer For OEM Requirement

Name: Stainless Steel Thermal Screw Conveyor CH0003 Heat Transfer For OEM Requirement
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: CH0003
Price: 30.00 USD
Availability: InStock

Brand Name:	WeSeW
Model Number:	CH0003
MOQ:	1 pc
Price:	US$10,000~US$50,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

CH0003

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Machinery Test Report:

Provided

Usage:

Conveyor

Width Or Diameter:

Customized

Dimension(L*W*H):

Customized

Function:

Transmission System

Feature:

High Efficiency

Speed:

High Speed

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

500.00cm * 60.00cm * 70.00cm

Package Gross Weight:

200.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Conveyor System

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Stainless Steel Thermal Screw Conveyor

Heat Transfer Thermal Screw Conveyor

Heat Transfer Auger Conveyor Systems

Product Description

Stainless Steel Thermal Screw Conveyor CH0003

Custom heat transfer solution for OEM requirements with steam heating capabilities

Product Overview

Heat Systems thermal screw conveyors provide robust, flexible temperature adjustment solutions for solid materials during transport. These units combine material movement with precise thermal control in a single, efficient device.

Auger Configurations

Single, Twin, or Multi-screw designs
Heated/Cooled shaft options

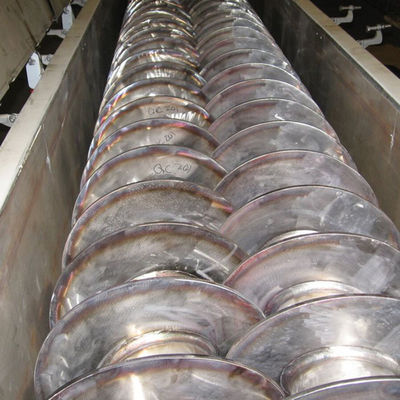

Hollow flights for enhanced heat transfer
Ribbon or cut flighting available

Instrumentation & Controls

Temperature input/output readouts
Flowmeters for precise monitoring
Various pressure gauge options
Customized control panels

Seal Systems

Rotating Mechanical seals
Packing Gland options
Custom seal solutions

Heating & Cooling

Single, dual, or triple zone configurations
Temperature range: -50°F to 600°F
Designed for specific application needs

Jacket Options

Heating and cooling jackets
Integral or bolt-on designs
ASME "U" and "R" stamp certified

Customization

Custom inlet and outlet designs
Built-to-order support stands
NDE and X-ray inspection options
Various insulation choices

Technical Advantages

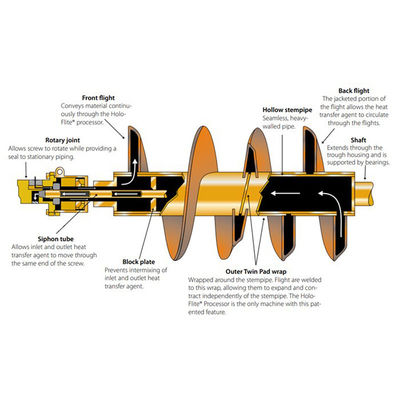

Unlike conventional systems that rely solely on external jackets with limited material contact, our thermal screw conveyors utilize both the vessel and rotor for heat transfer, penetrating deep into poorly conductive materials like spent carbon. This results in more compact units with superior efficiency.

Key Features

Simultaneous thermal treatment and material conveyance for operational cost savings
Precise temperature control during material transfer for maximum efficiency
Accurate thermal treatment timing to meet specific process requirements
Greater heat transfer surface area per unit compared to batch mixer systems
Bolt-on or integral external thermal heating and cooling jackets

Performance Benefits

Efficient Heat Transfer: Full surface utilization with heated vessel and rotor; short-pitch screw design promotes gentle tumbling for uniform heat distribution
Residence Time Control: Near plug-flow operation ensures consistent time and temperature exposure with narrow residence time distribution
Minimized Processing Damage: Even treatment and slow mixing action prevents burning, sticking, abrasion, dusting, crushing, or breaking

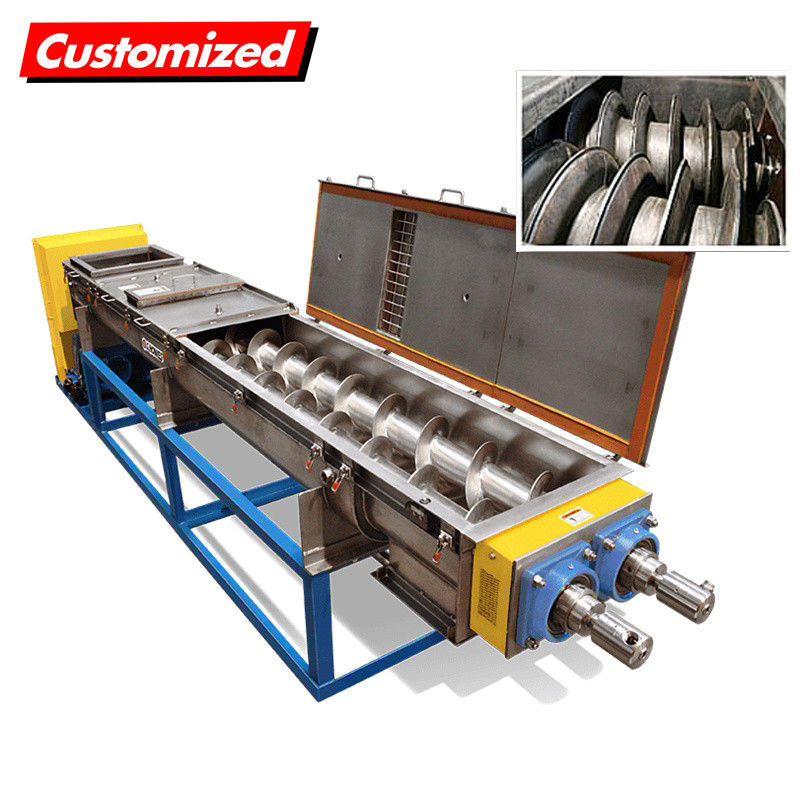

Thick Material Processing: Twin-rotor designs handle difficult, dough or paste-like materials; intermeshing flights prevent sticking and promote self-cleaning
Steam Injection: Optional injection capabilities for cooking or sterilizing applications
Operating Cost Savings: Combined heating, cooling, mixing, and conveying functions reduce costs while preventing product damage or spillage

Application Industries

Heating and cooling screw conveyors serve global industries including biomass conversion, paper and pulp, biofuels, food and dairy, chemicals, petrochemicals, minerals processing, and numerous other sectors requiring precise thermal control during material handling.

Sample Applications

Drying	Polymerization
Heat Curing	Cooling/Freezing
Microbial Kill	Sintering/Calcining
Dewatering	Various Thermal Processes
