Thermal Screw Conveyor
>
Fire Resistant High Efficiency Thermal Screw Conveyor with Customized Transmission System

Fire Resistant High Efficiency Thermal Screw Conveyor with Customized Transmission System

Brand Name: WeSeW
Model Number: CH0001
MOQ: 1pcs
Price: US$10,000~US$50,000 per pc
Packaging Details: Wooden Case
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE,UL
Material Feature:
Heat Resistant, Fire Resistant
Condition:
New
Machinery Test Report:
Provided
Width Or Diameter:
Customized
Function:
Transmission System
Speed:
High Speed
Specification:
Customized
Origin:
China
Material:
Stainless Steel
Application:
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory...
Usage:
Conveyor
Dimension(L*W*H):
Customized
Feature:
High Efficiency
Transport Package:
Wooden Box
Trademark:
WESEW
Supply Ability:
10000 sets per month
Highlight:

High Efficiency Thermal Screw Conveyor

,

Fire Resistant Thermal Screw Conveyor

,

Fire Resistant Cooling Screw Conveyor

Product Description

Product Description




OEM Custom Conveying System Cooling Auger Heating Screw Conveyors For Sale

Auger types Single/Twin/Multi screw
Heated/Cooled shaft
Hollow flights
Ribbon or cut flighting
Instrumenation Temperature in/out readout
Flowmeters
Variety of pressure gauges available
Customized control panels
Seal types Rotating Mechanical
Packing Gland
Custom
Heaters/ Coolers Single, dual or triple zone configurations
-50oF to 600oF temperature control
Designed for your needs
Jacket types Heating jackets
Cooling jackets
Integral or bolt-on
ASME "U" and "R" stamp
Customization Inlet and outlet custom designs
Built-to-order support stands
NDE and X-ray options
Various insulation options
Sample applications Drying
Polymerzation
Heat curing
Cooling/ freezing
Microbial kill
Sintering/ calcining
Dewatering


Product Description:
Heat Systems screw conveyors are simple, robust and flexible, often employed to adjust the temperature of a solid material prior to storage or further processing. The unit is essentially a screw conveyor with heat transfer capability, providing both material movement and temperature adjustment in one device.
Other suppliers typically employ an external jacket to act as the sole heat transfer surface. The problem is that this surface has limited contact with the material due to voidage and movement, generally resulting in a larger unit than necessary being specified to compensate. However, the Heat Systems screw conveyors also use the screw itself to supply or withdraw heat, thereby penetrating deep into the solid which is often a poor conductor (e.g. spent carbon). This effectively results in a smaller, more compact footprint and cost.
A liquid heat transfer medium ensures stable and precise control of the final product temperature (e.g. cooling water, thermal oil, glycol etc). As always, custom screw conveyor designs are available to suit your individual need.

Features:
Thermal treatment is accomplished while the product material is conveyed for cost savings;
Control of temperature during material transfer for maximum efficiency;
Accurate control of thermal treatment time ensures precise requirements are met;
Greater heat transfer surface area per unit of product than batch mixer systems;
Bolt-on or integral external thermal heating and cooling jacket.

Advantages:
Efficient Heat Transfer
The thermascrew provides full heat surface utilization with both a heated vessel and rotor. The rotor's short-pitch screw design promotes gentle material tumbling, promoting more uniform and efficient heat transfer.
Residence Time Control
Near plug-flow operation means consistent time and temperature exposure for treating material and providing controlled, narrow residence time distribution.
Minimize Processing Damage
Even treatment and slow mixing action minimizes burning, sticking, abrasion, dusting, crushing, or breaking.
Thick Material Processing
Twin-rotor designs are available to process difficult, dough or paste-like materials. Intermeshing flights on the rotor helps promote more even heat-transfer while preventing sticking and promoting self-cleaning.
Steam Injection
Optional injection capabilities inject steam into the material for cooking or sterilizing applications.
Operating Cost Savings
Material is heated, cooled, mixed, or dried as it is conveyed, resulting in lower costs, increased efficiency and no product damage or spillage.

Application:
Heating and cooling screw conveyors are used around the globe in industries such as biomass conversion, paper and pulp, biofuels, food and dairy, chemicals, petrochemicals, minerals processing, and many more.

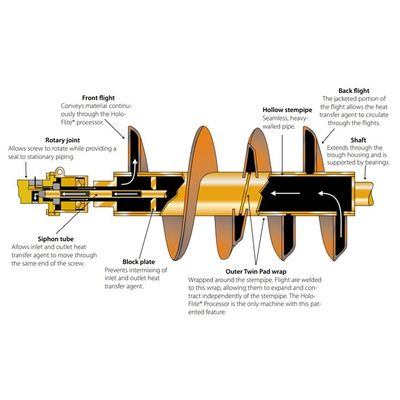

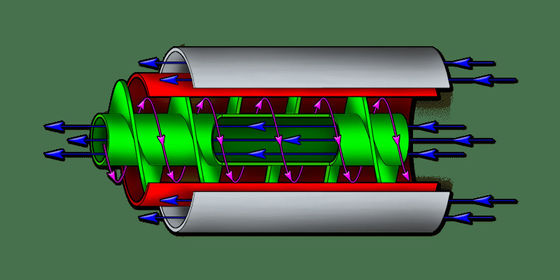

Drawing:

Fire Resistant High Efficiency Thermal Screw Conveyor with Customized Transmission System 0

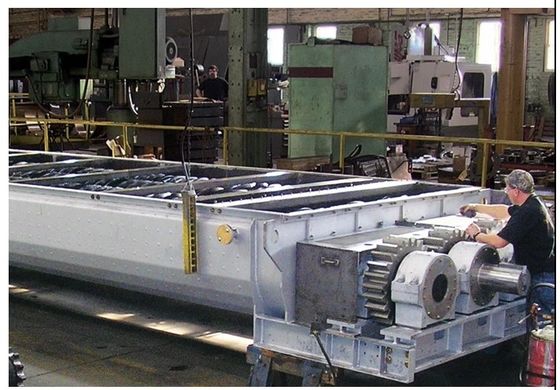

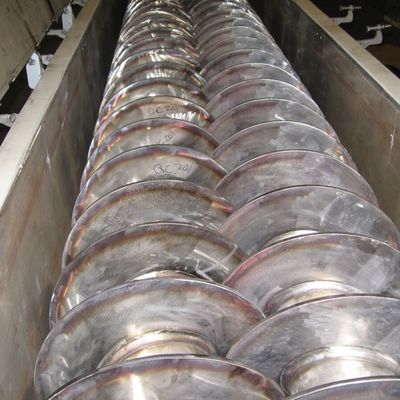

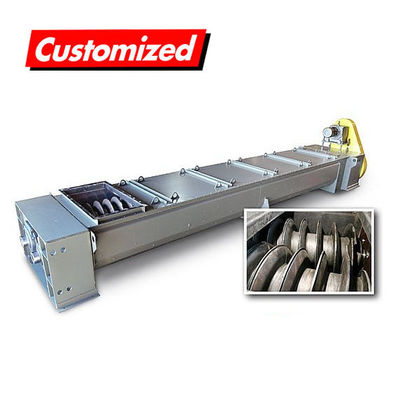

Product Display
