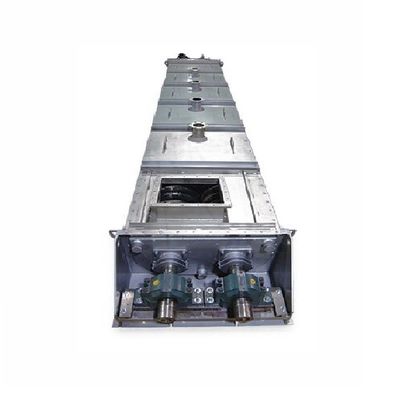

U Trough Double Helix Flexible Spiral Conveyor CH0004 For Optional Cooling Or Heating

U Trough Double Helix Flexible Spiral Conveyor CH0004 For Optional Cooling Or Heating

Brand Name:	WeSeW
MOQ:	1 pc
Price:	US$10,000~US$50,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

CH0004

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Machinery Test Report:

Provided

Usage:

Conveyor

Width Or Diameter:

Customized

Dimension(L*W*H):

Customized

Function:

Transmission System

Feature:

High Efficiency

Speed:

High Speed

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

300.00cm * 80.00cm * 50.00cm

Package Gross Weight:

200.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Conveyor System

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

U Trough Flexible Spiral Conveyor

Double Helix Flexible Spiral Conveyor

Cooling Portable Auger Conveyor

Product Description

U Trough Double Helix Flexible Spiral Conveyor CH0004

Custom cooling or heating optional U trough double auger screw conveyor designed for precise temperature control during material transfer.

Configuration Options

Auger Types	Single/Twin/Multi screw
Instrumentation	Temperature in/out readout, Flowmeters, Variety of pressure gauges available, Customized control panels
Seal Types	Rotating Mechanical, Packing Gland, Custom
Heaters/Coolers	Single, dual or triple zone configurations, -50°F to 600°F temperature control, Designed for your needs
Jacket Types	Heating jackets, Cooling jackets, Integral or bolt-on, ASME "U" and "R" stamp
Customization	Inlet and outlet custom designs, Built-to-order support stands, NDE and X-ray options, Various insulation options
Sample Applications	Drying, Polymerization, Heat curing, Cooling/freezing, Microbial kill, Sintering/calcining, Dewatering

Product Overview

Heat Systems screw conveyors are simple, robust and flexible, often employed to adjust the temperature of solid materials prior to storage or further processing. The unit combines material movement and temperature adjustment in one efficient device.

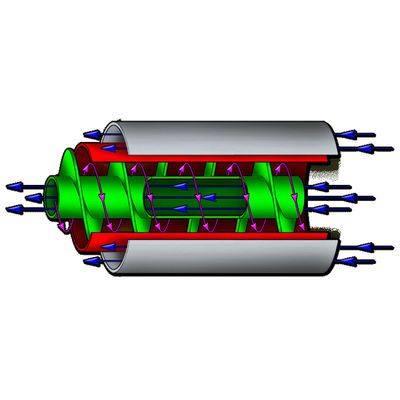

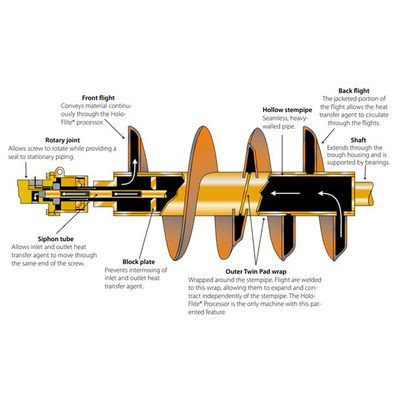

Superior Design: Unlike conventional systems that rely solely on external jackets with limited material contact, our screw conveyors utilize both the heated vessel and rotor for deep heat penetration into poorly conductive materials like spent carbon. This results in a more compact footprint and reduced costs.

Key Features

Thermal treatment during conveyance for significant cost savings
Precise temperature control during material transfer
Accurate thermal treatment time control
Greater heat transfer surface area per unit than batch mixer systems
Bolt-on or integral external thermal heating and cooling jackets

Performance Advantages

Efficient Heat Transfer

Full heat surface utilization with heated vessel and rotor. Short-pitch screw design promotes gentle material tumbling for uniform heat distribution.

Residence Time Control

Near plug-flow operation ensures consistent time and temperature exposure with controlled, narrow residence time distribution.

Minimize Processing Damage

Even treatment and slow mixing action prevents burning, sticking, abrasion, dusting, crushing, or breaking of materials.

Thick Material Processing

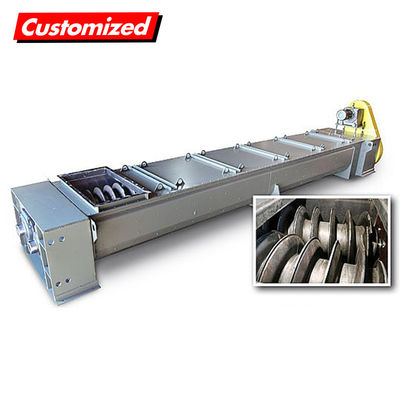

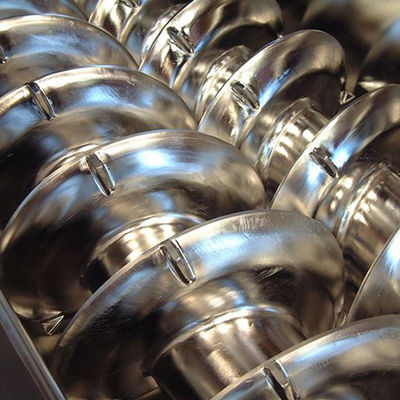

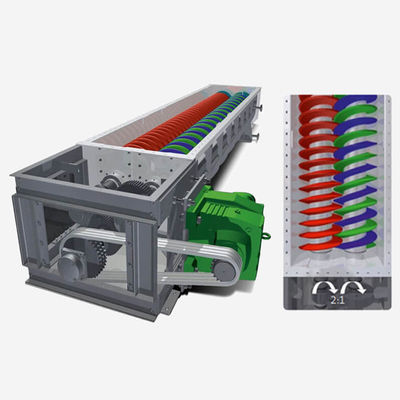

Twin-rotor designs handle difficult, dough or paste-like materials with intermeshing flights that prevent sticking and promote self-cleaning.

Steam Injection

Optional steam injection capabilities for cooking or sterilizing applications.

Operating Cost Savings

Material is heated, cooled, mixed, or dried during conveyance, resulting in lower costs, increased efficiency and no product damage.

Industry Applications

Heating and cooling screw conveyors are used globally in industries including biomass conversion, paper and pulp, biofuels, food and dairy, chemicals, petrochemicals, minerals processing, and many more.
