Customized Heat Resistant Fire Resistant Screw Auger Conveyor for Flexible Screw Feeder

Customized Heat Resistant Fire Resistant Screw Auger Conveyor for Flexible Screw Feeder

Brand Name:	WeSeW
MOQ:	1 pc
Price:	US$8,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

KX0011

Material:

Carbon Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable:

Cement, Grain, Food, Waster Water Etc.

Machinery Test Report:

Provided

Core Components:

Bearing, Gearbox, Motor

Dimension(L*W*H):

Customized

Spiral Diameter:

Customize

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

500.00cm * 60.00cm * 50.00cm

Package Gross Weight:

100.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Conveyor System

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Custom Concrete Grain Auger Conveyor

Product Description

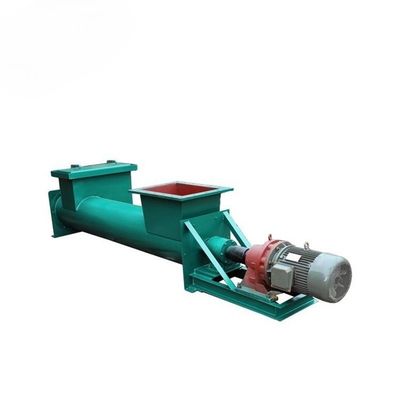

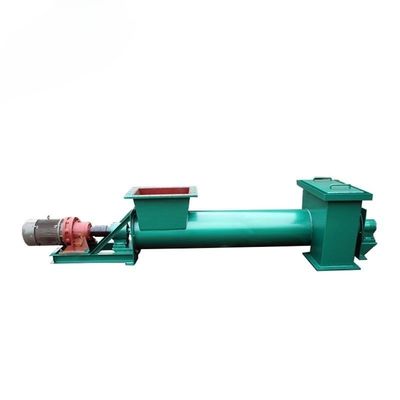

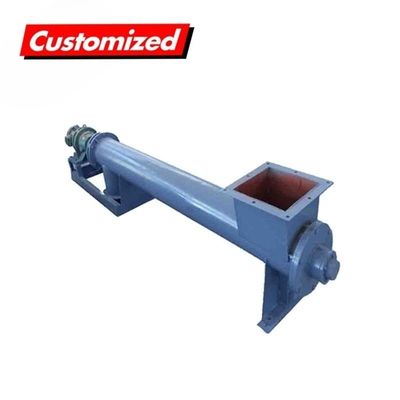

Custom Concrete Grain Auger Conveyor for Flexible Screw Feeder

Condition	New
Material Feature	Fire Resistant
Voltage	220V/380V/415V/660V
Dimension (L×W×H)	Customizable
Application	Cement, Grain, Food, Waste Water, etc.
Motor Reducer	Homemade
Hope Size	As per requirement
Material	Carbon Steel/Stainless Steel
Structure	Inclining Conveyor
Power	2.2KW
Warranty	1 Year
Usage	0-90 Degree Material Transmission
Screw Diameter	100mm
Rotate Speed	140 r/min

Product Overview

The LS/GX type screw conveyor machine is engineered according to JB/T7679-95 standards. The LS screw conveyor represents the next generation, replacing the GX type model. Key improvements include relocating head and tail bearings outside the shell, incorporating sliding bearings, dustproof sealed devices, and slide blocks for enhanced installation and maintenance convenience. This system utilizes rotary spiral vanes to continuously push materials within a closed, round-section housing.

Screw Conveyor Types

U-type Screw Conveyor (Groove Type)
Tubular Screw Conveyor
Shaftless Screw Conveyor
Flexible Screw Conveyor with Wheels
Vertical Screw Conveyor

Key Features

Excellent sealing, high capacity, long conveying distance
Superior sealing performance and transportation efficiency
Flexible technological arrangement, easy installation, dismantling, and movement with safe operation
Compact structure, small cross-section, lightweight design
Capable of mixing, heating, and cooling during conveying process

Applications

Food & Pharmaceutical Industries

Fluidic or low-fluidity materials including milk powder, protein powder, rice powder, coffee powder
Solid drinks, condiments, white sugar, dextrose, food additives
Animal feed, pharmaceuticals, agricultural pesticides

Industrial & Construction Materials
