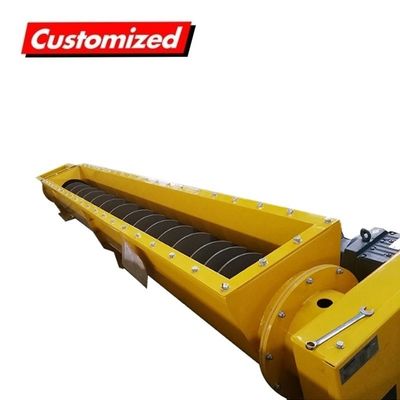

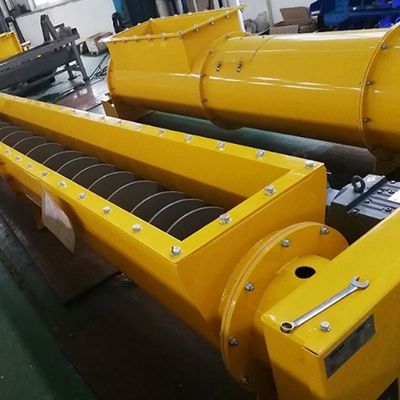

Customized Stainless Steel Heat Resistant Screw Auger Conveyor for Oil Waste Sludge Conveying

Customized Stainless Steel Heat Resistant Screw Auger Conveyor for Oil Waste Sludge Conveying

Brand Name:	WeSeW
MOQ:	1 pc
Price:	US$8,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

AC0016-1

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Product Name:

Feeding Spiral Auger Conveyor

Applicable Industries:

Manufacturing Plant, Energy & Mining

Machinery Test Report:

Provided

Core Components:

Motor, Engine

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

800.00cm * 50.00cm * 60.00cm

Package Gross Weight:

100.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Conveyor System

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Sludge Conveying Feeding Spiral Conveyor

Product Description

Customized Transmission System Feeding Spiral Conveyor

OEM Custom Transmission System Feeding Spiral Auger Conveyor for Oil Waste Sludge Conveying

Specification	Details
Applicable Industries	Garment Shops, Building Material Shops, Machinery Repair
Material	Carbon steel
Warranty	1 Year
Machinery Test Report	Provided
Core Components	Motor, Bearing, Gear
Product Name	Spiral Conveyor Screw Conveyor
Conveyor Type	Automatic Conveyor Line
Length	1-40 Meters
Width	500mm-1200mm Customized
Application	Agriculture
Condition	New
Material Feature	Heat Resistant
Dimension (LWH)	Customized
Width or Diameter	Customized
Video Outgoing-Inspection	Provided
Frame Material	Carbon Steel Stainless Steel
Thickness	1mm-10mm/Customized

Product Overview

Shaftless screw conveyor is designed for conveying strong adhesion, pasty viscous materials and materials that are easy to tangle. This continuous conveying equipment is ideal for chemical raw materials, waste paper pulp, malt, sludge, dust, small particles and small blocks. It can transport materials horizontally and obliquely with unique advantages, offering 1.5 times the conveying capacity of traditional shaft screw conveyors with the same diameter. Single machine conveying length can reach up to 60 meters.

Key Features

Environmental protection design with totally enclosed construction prevents material contamination during transport
1.5 times higher delivery volume compared to traditional shaft screw conveyors of the same diameter
Minimal blockages during operation
Extended transmission distance up to 60-70 meters
Space-saving design with generous appearance, easy operation, and competitive pricing

Performance Advantages

Strong flexibility: Customizable conveying pipes with different lengths, heights and angles for limited space applications
High transmission efficiency: Adjustable screw rotation speed with reliable performance and minimal material jams
High reliability: Simple structure, convenient maintenance, and long service life for material transportation applications

Technical Drawing
