Custom Carbon Steel Double Shaft Screw Conveyor - Heat Resistant Auger Conveyor for Industrial Applications

Custom Carbon Steel Double Shaft Screw Conveyor - Heat Resistant Auger Conveyor for Industrial Applications

Brand Name:	WeSeW
MOQ:	1 pc
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

AC0029

Material:

Carbon Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Industry

Machinery Test Report:

Provided

Core Components:

Motor

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

600.00cm * 60.00cm * 50.00cm

Package Gross Weight:

110.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Conveyor System

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Supply Ability:

10,000 pieces per month

Highlight:

Custom Carbon Steel Screw Conveyor

Double Shaft Screw Conveyor

110.000kg Screw Conveyor

Product Description

Custom Carbon Steel Double Shaft Screw Conveyor

OEM custom carbon steel double shaft screw auger conveyor designed for efficient material handling in industrial applications.

Model: SLS300-3500

Applicable Industries: Food & Beverage Factory, Construction works, Cement, etc.

Material: Stainless steel, Carbon steel

Structure: Conveyor System

Warranty: 1 Year

Core Components: Motor, Bearing

Feeding Material: Powder or granule

Length: Customized 1~30m

Processing: Painting, burnishing, Bead blasting

Speed: Adjustable Speed

Material Feature: Heat Resistant

Type: Tube, trough, shaftless, vertical

Product Introduction

The double-shaft screw conveyor features a solid screw in a U-shaped groove, with one left-handed and one right-handed screw. When operating, the two screws rotate through a pair of gears at the shaft extension position. The rotation of the spiral body enables axial material movement for efficient conveying.

Working Principle

Material enters through the feed port. When the rotating shaft rotates, the material receives normal thrust from the helical blade. While the radial component of this thrust and blade friction could potentially rotate the material around the axis, material gravity and trough friction prevent rotation. Instead, the material moves axially along the trough under the axial component of the blade's normal thrust.

Key Features

Left-handed and right-handed combined conveying
Large cross-sectional area for increased conveying capacity
Multiple physical functions: conveying, stirring, crushing, and pushing

Technical Parameters

Serial No.	Model	Conveyance Capacity (m³/h)	Power (kw)	Groove Inner Width (mm)	Material
1	SLS100	0.1-0.5	Specifically customized according to material, conveying volume and angle	198	carbon steel/stainless steel
2	SLS150	0.3-1.5	Specifically customized according to material, conveying volume and angle	294	carbon steel/stainless steel
3	SLS200	0.8-4.0	Specifically customized according to material, conveying volume and angle	388	carbon steel/stainless steel
4	SLS250	1.5-7.5	Specifically customized according to material, conveying volume and angle	486	carbon steel/stainless steel
5	SLS300	5.0-13.00	Specifically customized according to material, conveying volume and angle	576	carbon steel/stainless steel

Scope of Application

Suitable for powdery, granular and small block materials in chemical industry, environmental protection, food and other industrial applications.

Technical Drawing

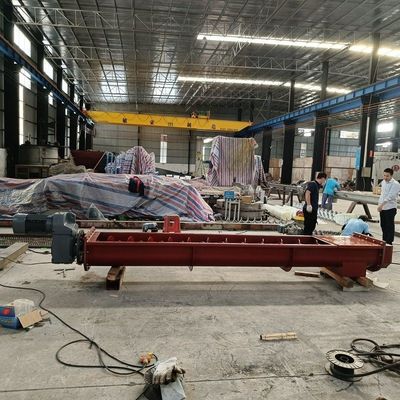

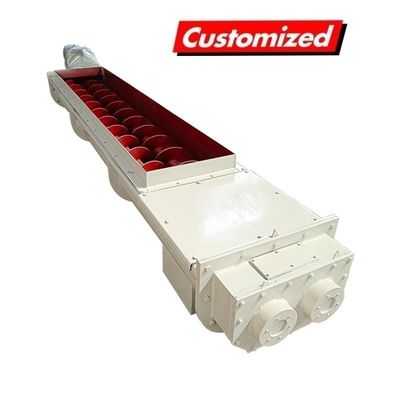

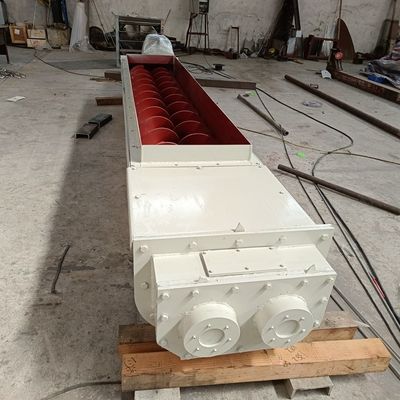

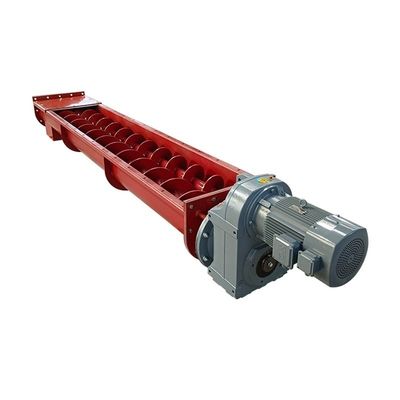

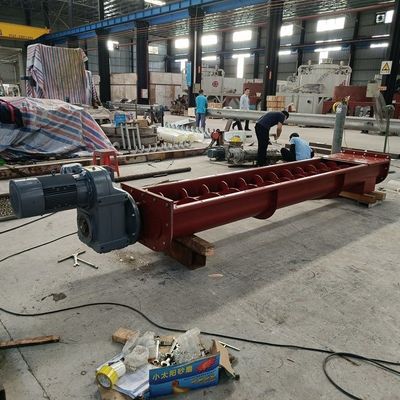

Product Display
