products details

Home Products

Customizable Stainless Steel Heat Resistant Screw Auger Conveyor System for Industrial Applications

Customizable Stainless Steel Heat Resistant Screw Auger Conveyor System for Industrial Applications

Brand Name:	WeSeW
MOQ:	1 pc
Price:	US$8,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

AC0029-1

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Industry

Machinery Test Report:

Provided

Core Components:

Motor

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

800.00cm * 60.00cm * 60.00cm

Package Gross Weight:

120.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Conveyor System

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Stainless Steel Spiral Auger Conveyor

Customization Spiral Auger Conveyor

OEM Spiral Auger Conveyor System

Product Description

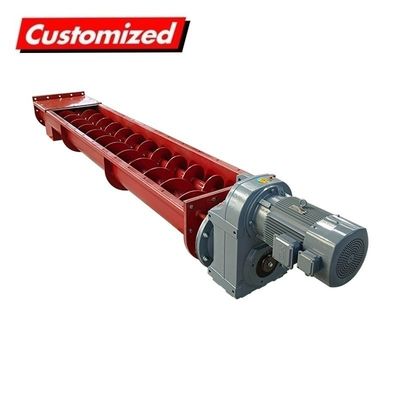

Custom Stainless Steel Spiral Auger Conveyor System

Product Overview

OEM custom stainless steel spiral auger conveyor designed for efficient material handling in various industrial applications.

Specifications

Model	SLS300-3500
Applicable Industries	Food & Beverage Factory, Construction Works, Cement, and more
Material	Stainless Steel, Carbon Steel
Structure	Conveyor System
Warranty	1 Year
Core Components	Motor, Bearing
Feeding Material	Powder or Granule
Length	Customized 1-30m
Processing	Painting, Burnishing, Bead Blasting
Speed	Adjustable Speed
Material Feature	Heat Resistant
Type	Tube, Trough, Shaftless, Vertical

Product Introduction

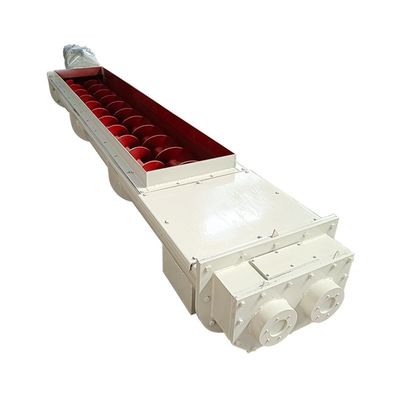

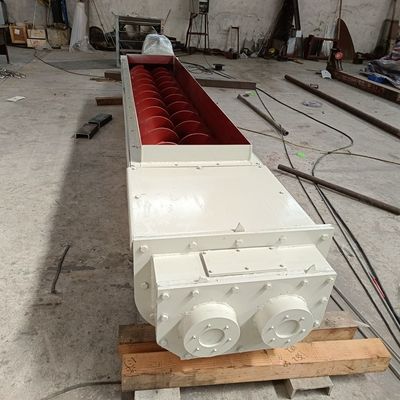

The double-shaft screw conveyor features a solid screw in a U-shaped groove with left-handed and right-handed configurations. When operating, the two screws rotate through a gear pair at the shaft extension, enabling axial material movement for efficient conveying.

Working Principle

Material enters through the feed port. As the rotating shaft turns, the helical blades generate thrust that moves material axially along the trough. Material gravity and trough friction prevent rotation with the blades, ensuring controlled forward movement.

Key Features

Left-handed and right-handed combined conveying system
Large cross-sectional area for enhanced conveying capacity
Multi-functional capabilities including conveying, stirring, crushing, and pushing

Technical Parameters

Serial No.	Model	Conveyance Capacity (m³/h)	Power (kw)	Groove Inner Width (mm)	Material
1	SLS100	0.1-0.5	Customized per material and requirements	198	Carbon Steel/Stainless Steel
2	SLS150	0.3-1.5	Customized per material and requirements	294	Carbon Steel/Stainless Steel
3	SLS200	0.8-4.0	Customized per material and requirements	388	Carbon Steel/Stainless Steel
4	SLS250	1.5-7.5	Customized per material and requirements	486	Carbon Steel/Stainless Steel
5	SLS300	5.0-13.00	Customized per material and requirements	576	Carbon Steel/Stainless Steel

Application Scope

Ideal for handling powdery, granular, and small block materials across chemical, environmental protection, food processing, and various industrial sectors.

Technical Documentation & Support

Machinery test report and video outgoing-inspection provided. Comprehensive after-sales support includes video technical support and online assistance.
