Screw Auger Conveyor
Created with Pixso.

Stainless Steel Heat Resistant U Type Spiral Conveyor Screw Auger Conveyor with Customized Dimensions

Stainless Steel Heat Resistant U Type Spiral Conveyor Screw Auger Conveyor with Customized Dimensions

Brand Name: WeSeW
MOQ: 1 pc
Price: US$10,000~US$20,000 per pc
Payment Terms: T/T,Western Union
Supply Ability: 10,000 pieces per month
Detail Information
Place of Origin:
china
Certification:
CE/UL
Model NO.:
AC0039-1
Material:
Stainless Steel
Material Feature:
Heat Resistant, Fire Resistant
Application:
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition:
New
Product Name:
U Type Spiral Conveyor Screw Auger Conveyor
Applicable Industries:
Industry
Machinery Test Report:
Provided
Core Components:
Motor
Dimension(L*W*H):
Customized
Transport Package:
Wooden Box
Specification:
Customized
Trademark:
WESEW
Origin:
China
Supply Ability:
500000/Year
Package Size:
800.00cm * 60.00cm * 60.00cm
Package Gross Weight:
150.000kg
After-sales Service:
Provided
Warranty:
1 Year
Structure:
Conveyor System
Customization:
Available Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Packaging Details:
Wooden Case
Supply Ability:
10,000 pieces per month
Highlight:

Spiral Screw Auger Conveyor

Product Description
U-Type Spiral Screw Auger Conveyor AC0039-1
Product Specifications
Applicable Industries Energy & Mining
Material Carbon Steel
Structure Conveyor System
Warranty 1 Year
Core Components Bearing, Gear, Gearbox, Engine
Color Customized
Condition New
Material Feature Heat Resistant
Dimensions Custom Specifications Available
Product Usage Continuous Conveying Equipment
Product Overview
The LS Type Helical Conveyor meets ISO1050-75 standards and is manufactured according to ZBJ81005.1~2-88 professional specifications. This advanced screw conveyor features superior technical performance compared to traditional GX models, with external head and tail bearings for improved accessibility and maintenance.
Key Features
  • External head and tail bearing placement for easy maintenance
  • Dual suspension bearing options: rolling and sliding interchangeability
  • Advanced dustproof sealing with nylon and plastic components
  • Low resistance design with excellent wear resistance
  • Multiple lubrication options including cast copper and alloy wear-resistant cast iron
  • Integrated cleaning device at discharge end
  • Flexible inlet and outlet port positioning
  • Optional shaft alarm system available
  • Low noise operation with simple maintenance requirements
Application & Operation
This helical conveyor operates as a continuous conveying system without disturbing traction members. The rotating spiral mechanism transports materials along the fixed casing through surface movement, similar to how a nut moves along a screw thread. Material movement is achieved through gravity and frictional resistance against the casing.
Technical Drawing
Stainless Steel Heat Resistant U Type Spiral Conveyor Screw Auger Conveyor with Customized Dimensions 0
Product Gallery

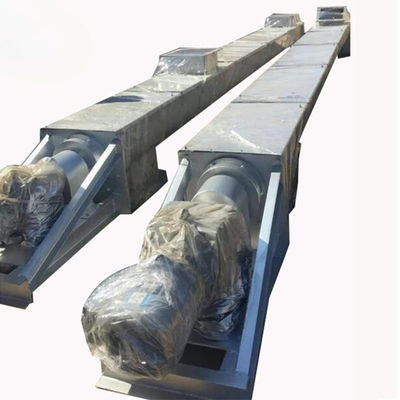

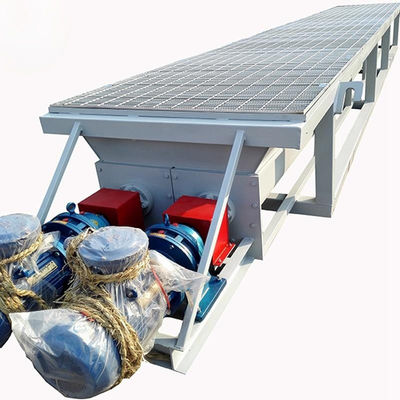

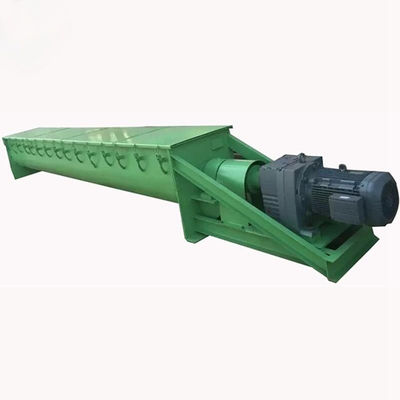

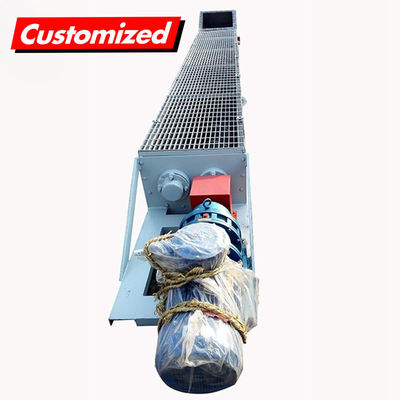

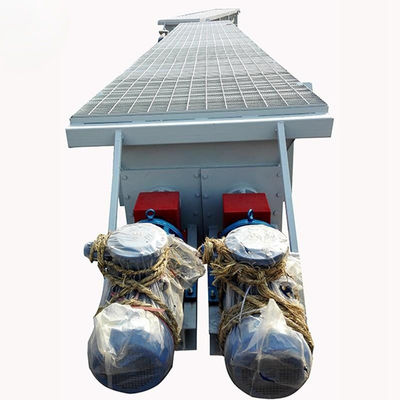

Stainless Steel Heat Resistant U Type Spiral Conveyor Screw Auger Conveyor with Customized Dimensions 1 Stainless Steel Heat Resistant U Type Spiral Conveyor Screw Auger Conveyor with Customized Dimensions 2 Stainless Steel Heat Resistant U Type Spiral Conveyor Screw Auger Conveyor with Customized Dimensions 3 Stainless Steel Heat Resistant U Type Spiral Conveyor Screw Auger Conveyor with Customized Dimensions 4 Stainless Steel Heat Resistant U Type Spiral Conveyor Screw Auger Conveyor with Customized Dimensions 5 Stainless Steel Heat Resistant U Type Spiral Conveyor Screw Auger Conveyor with Customized Dimensions 6
Quality Assurance
Comprehensive machinery test reports and video outgoing-inspection are provided. Professional after-sales service ensures optimal performance and reliability for your industrial operations.
