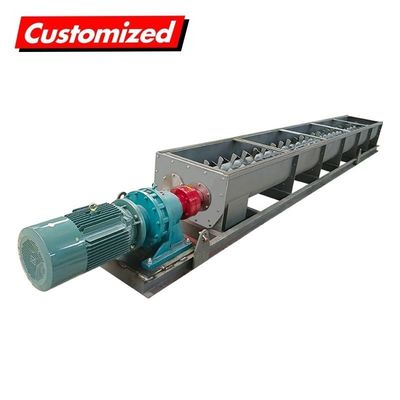

Stainless Steel Heat Resistant U-Shaped Screw Auger Conveyor with Customized Length for Granules and Grain Feeding

Name: Stainless Steel Heat Resistant U-Shaped Screw Auger Conveyor with Customized Length for Granules and Grain Feeding
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: AC0071
Price: 19.00 USD
Availability: InStock

Brand Name:	WeSeW
Model Number:	AC0071
MOQ:	1 pc
Price:	US$8,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

AC0071

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Industry

Machinery Test Report:

Provided

Core Components:

Motor

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

800.00cm * 50.00cm * 60.00cm

Package Gross Weight:

150.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Conveyor System

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

U Shaped Pipe Screw Conveyor

Sludge Pipe Screw Conveyor

U Shaped Screw Auger Conveyor

Product Description

U Shaped Sludge Pipe Screw Conveyor For Granules And Grain Feeding

U-shaped Sludge Pipe Conveyor Granules Grain Feeding Machine Screw Auger Conveyor

Model	SLS350-6000
Applicable Industries	Food & Beverage Factory, Construction works, Cement
Material	Stainless steel
Structure	Conveyor System
Warranty	1 Year
Machinery Test Report	Provided
Core Components	Motor, Bearing
Feeding material	Powder or granule
Length	Customized 1~30m
Processing	Painting, burnishing, Bead blasting
Speed	Adjustable Speed
Material Feature	Heat Resistant
Dimension(LWH)	Depends on the model
Video outgoing-inspection	Provided
After Warranty Service	Video technical support, Online support
After-sales Service Provided	Online support
Type	Tube, trough, shaftless, vertical

Product Description

The double-shaft screw conveyor is equipped with solid screws in a U-shaped groove, featuring one left-handed and one right-handed screw. When operating, the two screws rotate through a pair of gears at the shaft extension position. The rotation of the spiral body causes material to move axially, achieving efficient conveying.

Working Principle

Material enters through the feed port. When the rotating shaft turns, the material receives normal thrust from the helical blades. While the radial component of this thrust and blade friction could potentially rotate the material around the axis, the material's own gravity and friction against the trough prevent rotation. Instead, the material moves axially along the trough under the axial component of the blade's normal thrust.

Key Features

Left-handed and right-handed combined conveying system
Large cross-sectional area for enhanced conveying capacity
Multiple physical functions including conveying, stirring, crushing, and pushing

Scope of Application

Suitable for powdery, granular, and small block materials in chemical industry, environmental protection, food processing, and related industries.

Technical Drawing

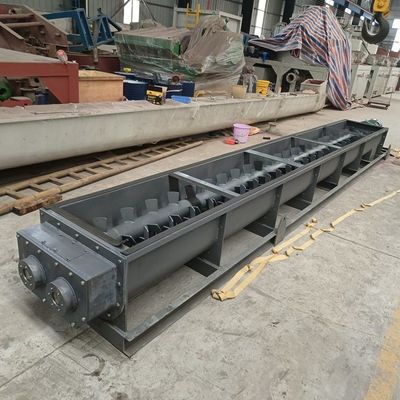

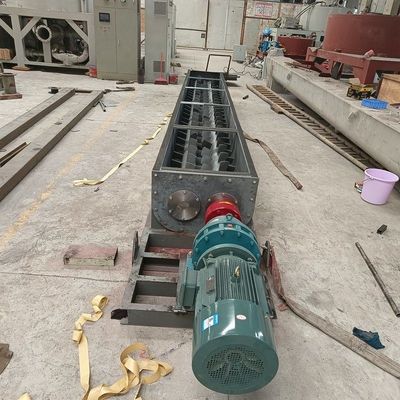

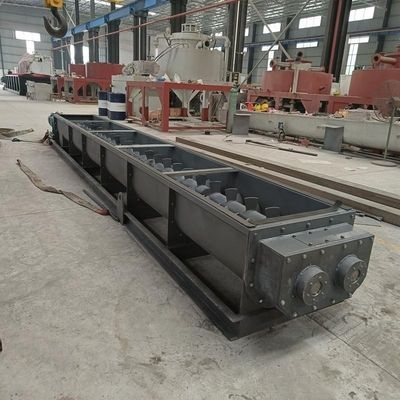

Product Display
