Automatic Stainless Steel Heat Resistant Screw Auger Feeder with Customized Design

Automatic Stainless Steel Heat Resistant Screw Auger Feeder with Customized Design

Brand Name:	WeSeW
MOQ:	1 pc
Price:	US$800~US$8,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

KX0021

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Product Name:

Roller Pneumatic Screw Conveyor Screw Feeder

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Machinery Test Report:

Provided

Core Components:

Motor, Gearbox, Casing, Circle Blade

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

500.00cm * 60.00cm * 60.00cm

Package Gross Weight:

100.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Roller Conveyor

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Automatic Powder Auger Feeder

Dependable Performance Powder Auger Feeder

Heat Resistant Screw Lift Conveyor

Product Description

Automatic Powder Auger Feeder Heat Resistant with Dependable Performance

OEM Custom Dependable Performance Conveyor Roller Pneumatic Screw Conveyor Screw Feeder

Applicable Industries	Energy & Mining, Chemical, Metallurgy, Building Material
Material	Carbon steel
Structure	U-shape screw conveying
Power	1.5-18.5kW
Warranty	1 Year
Machinery Test Report	Provided
Core Components	Spiral wind turbines, Vortex air pump
Product Name	U shape screw conveyor
Condition	New
Material Feature	Abrasion resistant
Voltage	110V / 220V / 380V / As client's demand
Dimension (LWH)	Size customized
Width or Diameter	Size customized
Video Outgoing Inspection	Provided

Product Introduction

The screw conveyor is available in two configurations: horizontal and vertical screw conveyors, designed for transporting powder, granular, and small lump materials including cement, coal powder, grain, fertilizer, ash, slag, and sand. This equipment is not suitable for materials that are prone to deterioration, sticky, or large lumpy substances.

Screw conveyors are widely utilized across multiple industries including building materials, chemical, electric power, coal, metallurgy, and grain processing. They are designed for horizontal and slight inclination arrangements with maximum inclination angles not exceeding 20°. Operating environment temperatures typically range from -20°C to 50°C, while material temperatures should remain below 200°C. Maximum vertical lifting height is limited to 8 meters.

Compared with other conveying equipment types, screw conveyors offer significant advantages including simple structure, compact cross-sectional dimensions, excellent sealing performance, capability for intermediate multi-point loading and discharging, safe and convenient operation, and cost-effective manufacturing.

Screw conveyors are widely adopted due to their high reliability, extended service life, strong adaptability, and straightforward installation and maintenance requirements.

Structural Principle

Screw conveyors typically consist of three main components: conveyor body, inlet/outlet system, and driving mechanism. The body structure includes first section, middle section, and tail section configurations.

The first section incorporates thrust bearings to manage axial forces
Middle and tail sections feature support bearings for spiral shaft stability
Tail section includes radial bearings with axial movement capability to compensate for spiral shaft length variations and accommodate temperature changes
Spiral shafts connect via flange-type couplings to enhance interchangeability and simplify maintenance
Available in both double shaftless and single shaftless configurations to meet diverse operational requirements

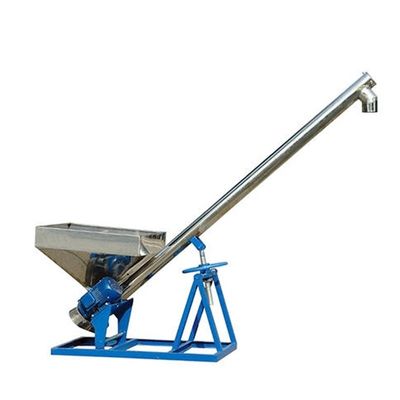

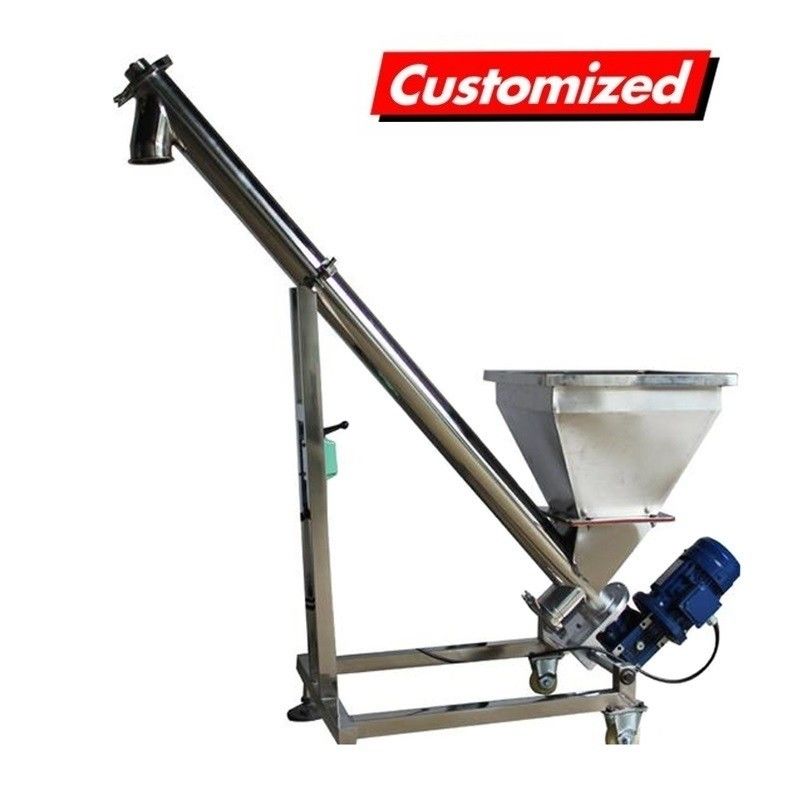

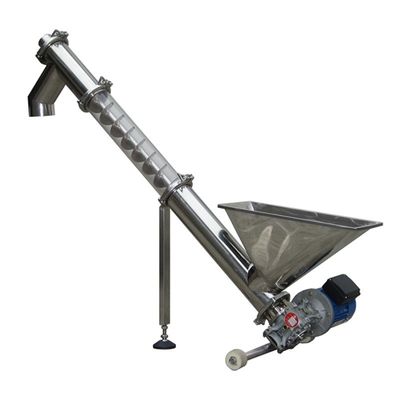

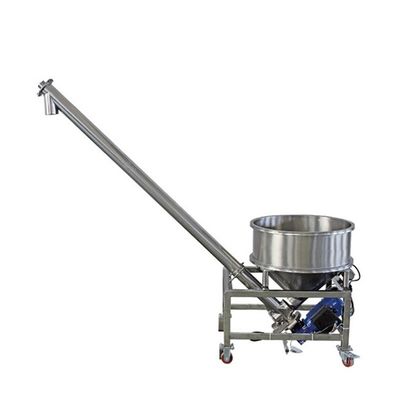

Product Display
