Stainless Steel Heat Resistant Vertical Screw Auger Feeder with Customized Dimensions

Stainless Steel Heat Resistant Vertical Screw Auger Feeder with Customized Dimensions

Brand Name:	WeSeW
MOQ:	1 pc
Price:	US$800~US$8,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

AC0046

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Industry

Machinery Test Report:

Provided

Core Components:

Motor

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

60.00cm * 80.00cm * 200.00cm

Package Gross Weight:

50.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Conveyor System

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

High Strength Screw Auger Feeder

Vertical Screw Auger Feeder

Electric Screw Conveyor Feeder

Product Description

Granule Conveying Vertical Screw Auger Feeder Electric With High Strength

Industrial stainless steel inclined screw auger conveyor for efficient powder and granule conveying applications.

Model No.	GXT168-3500
Material	304 Stainless Steel
Color	Multi Color
Warranty	1 Year
Condition	New
Customized	Customized
Operation	Automatic Continuous Operation
After-sales Service	Online Video
Keyword	Screw Conveyor
Installation	Engineer Guide
Name	For Grain Powder Stainless Steel Screw Auger Conveyor
Length	Customized
Original	China
Transport Package	Standard Export Wooded Case
Production Capacity	50 Set/Sets Per Month
HS Code	8428320000

Product Description

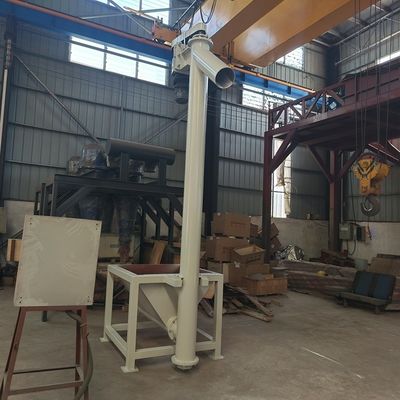

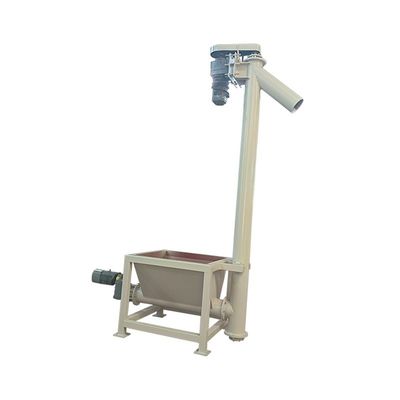

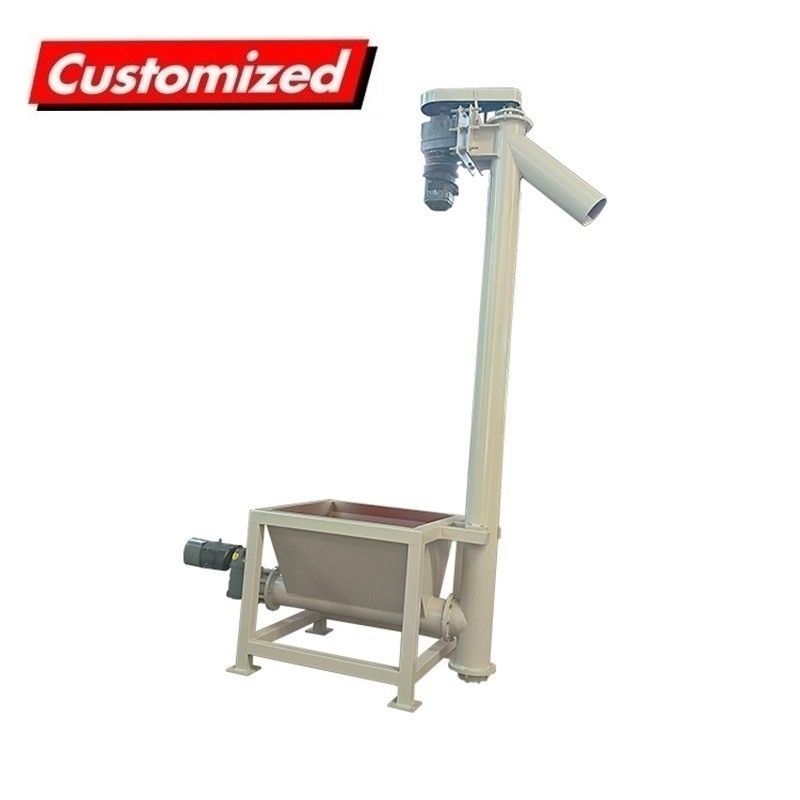

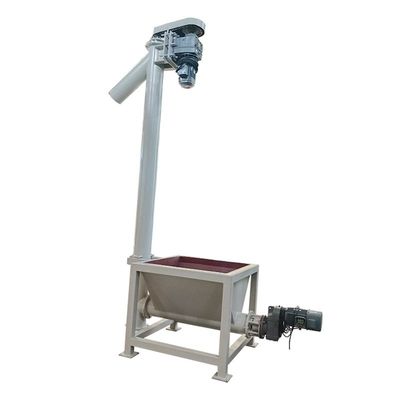

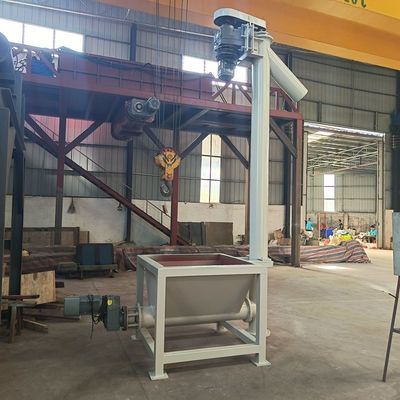

This vertical screw auger conveyor is designed for lifting powdery, granular, and small non-abrasive/abrasive materials. It integrates seamlessly with other conveying equipment such as feeders, belt conveyors, and screw conveyors to create customized transportation systems. Constructed from welded seamless steel pipes and spiral blades with a movable support frame for easy relocation.

Working Principle

Utilizes rotating helical blades to transport materials horizontally and obliquely along spiral guides. This non-detour traction system provides regular control and continuous conveyance of powdery, granular, and small block materials. Features include high thrust capacity, rapid speed, multi-point feeding/discharging capabilities, and excellent sealing to prevent dust leakage.

Machine Features

Sealed transportation system prevents material flying, ideal for hot and strong-smelling materials while reducing environmental pollution and improving worker safety
Compact design with small sectional dimensions for minimal space requirements
Energy efficient operation consuming only 1/3 of the power required by pneumatic conveying systems
Reliable performance with minimal maintenance requirements and straightforward operation

Machine Applications

Primarily used in grain purchasing facilities, feed mills, chemical plants, fertilizer plants, and similar industrial settings for lifting and conveying materials including grain, feed, coal powder, cement, clinker, compound fertilizer, and rapeseed.
