Sand Screw Washer
Created with Pixso.

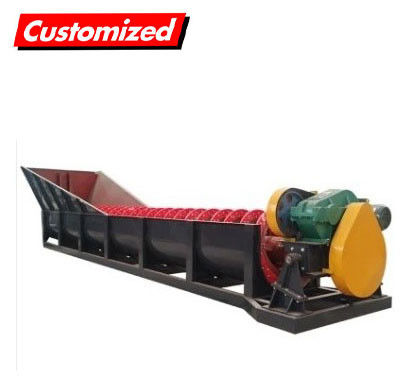

15Tons Per Hour Spiral Sand Washer Spiral Sand Washing Machine Auger Conveyor Customize

15Tons Per Hour Spiral Sand Washer Spiral Sand Washing Machine Auger Conveyor Customize

Brand Name: WeSeW
Model Number: Kai001
MOQ: 1 pc
Price: US$20,000~US$80,000 per pc
Payment Terms: T/T,Western Union
Supply Ability: 10,000 pieces per month
Detail Information
Place of Origin:
china
Certification:
CE/UL
Model NO.:
Kai001
Material:
Stainless Steel
Material Feature:
Heat Resistant, Fire Resistant
Application:
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition:
New
Applicable Industries:
Industry
Machinery Test Report:
Provided
Core Components:
Motor
Dimension(L*W*H):
Customized
Transport Package:
Wooden Box
Specification:
Customized
Trademark:
WESEW
Origin:
China
Supply Ability:
500000/Year
Package Size:
800.00cm * 100.00cm * 100.00cm
Package Gross Weight:
1000.000kg
After-sales Service:
Provided
Warranty:
1 Year
Structure:
Conveyor System
Customization:
Available Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Packaging Details:
Wooden Case
Supply Ability:
10,000 pieces per month
Highlight:

15Tons Per Hour Spiral Sand Washer

,

Stainless Steel Spiral Sand Washer

,

Heat Resistant Screw Sand Washing Machine

Product Description
15 Tons Per Hour Spiral Sand Washer
OEM Mining Machinery Mineral Spiral Classifier Sand Washing Machine Auger Conveyor
Applicable Industries Energy & Mining
Machinery Test Report Provided
Core Components PLC, Motor
Motor Type AC Motor
Dimension (L*W*H) Based on different model
Warranty 1 year
Application Silica sand, gravel, stone, sand, mica, pebble, rock
Spare parts Spiral blade
Operation Automatically
Video outgoing-inspection Provided
Spiral blade material Cast steel, stainless steel (or as client request)
Flow chart and foundation Supply by seller (or as client request)
Related product Belt conveyor, water pump, hopper
Product Description
The spiral sand washing machine efficiently cleans and screens sand and gravel through its spiral mechanism. Soil and water are mixed and discharged through the equipment orifice, while cleaned sand and gravel are gradually screened and discharged from the top outlet.
Working Principle
The motor drives the impeller through V-belt and gear reduction. Sand and gravel enter the washing tank, roll under impeller drive to remove surface impurities and destroy water vapor layers. Water flow carries away lightweight impurities through the overflow port, producing clean machine-made sand.
Key Features
  • Simple, stable structure with high processing capacity and low power consumption
  • Bearings separated from water and materials to prevent contamination and rust
  • High wear-resistant blades for extended service life
  • Minimal material loss with high washing efficiency for premium results
  • Minimal maintenance requirements reducing operational costs
Scope of Application
Suitable for fine and medium crushing of hard, brittle materials including abrasives, refractory materials, cement, quartz sand, steel sand, slag powder, copper ore, iron ore, gold ore, concrete aggregate, and asphalt aggregate. Used for washing, grading, and impurity removal in road construction, hydropower, and building industries.
Product Display
15Tons Per Hour Spiral Sand Washer Spiral Sand Washing Machine Auger Conveyor Customize 0 15Tons Per Hour Spiral Sand Washer Spiral Sand Washing Machine Auger Conveyor Customize 1 15Tons Per Hour Spiral Sand Washer Spiral Sand Washing Machine Auger Conveyor Customize 2 15Tons Per Hour Spiral Sand Washer Spiral Sand Washing Machine Auger Conveyor Customize 3 15Tons Per Hour Spiral Sand Washer Spiral Sand Washing Machine Auger Conveyor Customize 4
