Professional Heat Resistant Stainless Steel Screw Auger Conveyor with Customized Transmission Chains

Name: Professional Heat Resistant Stainless Steel Screw Auger Conveyor with Customized Transmission Chains
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: Kai001
Price: 5.00 USD
Availability: InStock

Brand Name:	WeSeW
Model Number:	Kai001
MOQ:	1 pc
Price:	US$1,000~US$10,000 per pcs
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

Kai001

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Industry

Machinery Test Report:

Provided

Core Components:

Motor

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

750.00cm * 100.00cm * 100.00cm

Package Gross Weight:

200.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Conveyor System

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Professional Screw Auger Conveyor

Transmission Chains Screw Auger Conveyor

Professional Flexible Screw Auger Conveyor

Product Description

Professional Heat Resistant Screw Auger Conveyor

OEM custom stainless steel spiral auger conveyor designed for demanding industrial applications with heat-resistant properties.

Product Specifications

Model	SLS300-3500
Applicable Industries	Food & Beverage Factory, Construction works, Cement, etc.
Material	Stainless steel, Carbon steel
Structure	Conveyor System
Warranty	1 Year
Core Components	Motor, Bearing
Feeding Material	Powder or granule
Length	Customized 1~30m
Processing	Painting, burnishing, Bead blasting
Speed	Adjustable Speed
Material Feature	Heat Resistant
Type	Tube, trough, shaftless, vertical

Product Introduction

The double-shaft screw conveyor features a solid screw in a U-shaped groove configuration, with one left-handed and one right-handed screw. These screws rotate through a pair of gears at the shaft extension position, enabling axial material movement for efficient conveying operations.

Working Principle

Material enters through the feed port and, as the rotating shaft turns, receives normal thrust from the helical blades. While radial components and blade friction could potentially rotate the material around the axis, gravity and trough friction prevent rotation, allowing the material to move axially along the trough under the blade's thrust force.

Key Features

Left-handed and right-handed combined conveying system
Large cross-sectional area for enhanced conveying capacity
Multi-functional capabilities including conveying, stirring, crushing, and pushing

Technical Parameters

Model	Conveyance Capacity (m³/h)	Power (kw)	Groove Inner Width (mm)	Material
SLS100	0.1-0.5	Customized per material and requirements	198	Carbon steel/Stainless steel
SLS150	0.3-1.5	Customized per material and requirements	294	Carbon steel/Stainless steel
SLS200	0.8-4.0	Customized per material and requirements	388	Carbon steel/Stainless steel
SLS250	1.5-7.5	Customized per material and requirements	486	Carbon steel/Stainless steel
SLS300	5.0-13.00	Customized per material and requirements	576	Carbon steel/Stainless steel

Scope of Application

Ideal for handling powdery, granular, and small block materials across various industries including chemical processing, environmental protection, and food production.

Quality Assurance: Machinery test report and video outgoing-inspection provided

After-Sales Support: Video technical support and online assistance available

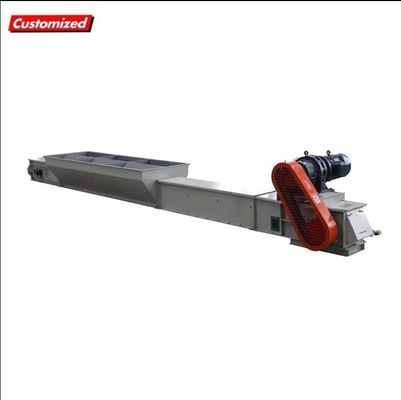

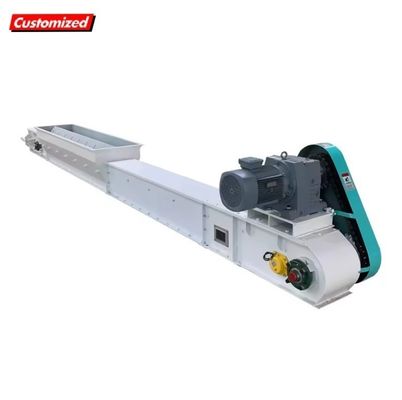

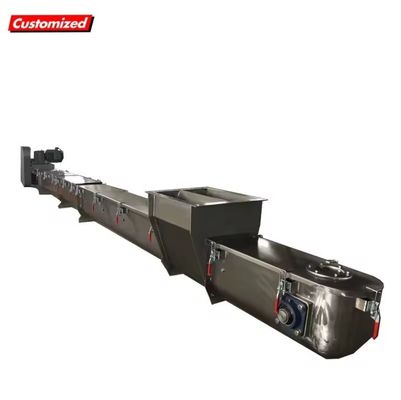

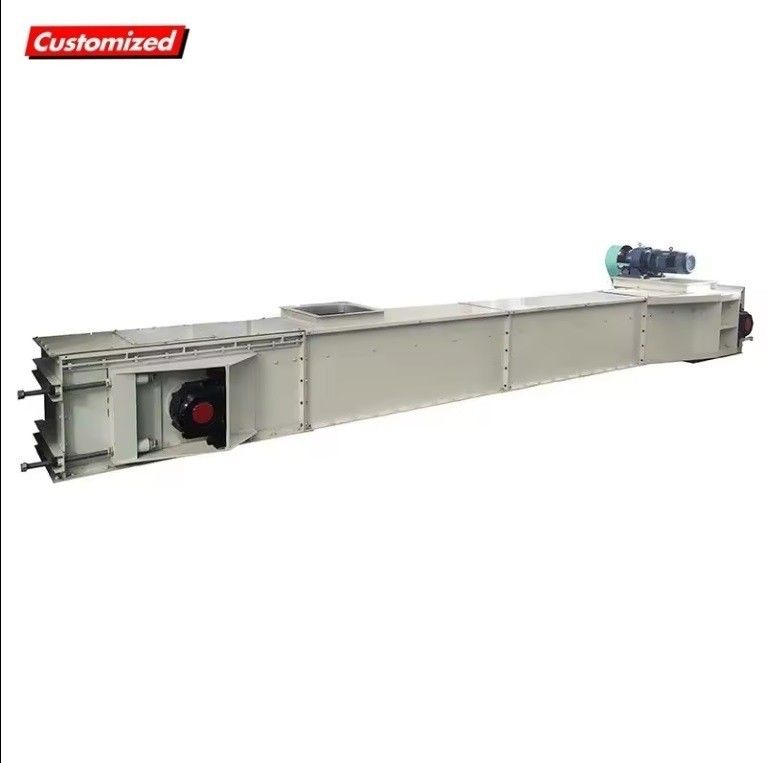

Product Display
