Customizable Drawer Grate Magnetic Separator For Chemical Industry

Customizable Drawer Grate Magnetic Separator For Chemical Industry

Brand Name:	WeSeW
Model Number:	CX-717
MOQ:	1 pc
Price:	Price Negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Customizable Magnetic Separator

Drawer Grate Magnetic Separator

Chemical Industry Magnetic Separator

Product Description

Customizable Drawer Grate Magnetic Separator For Chemical Industry

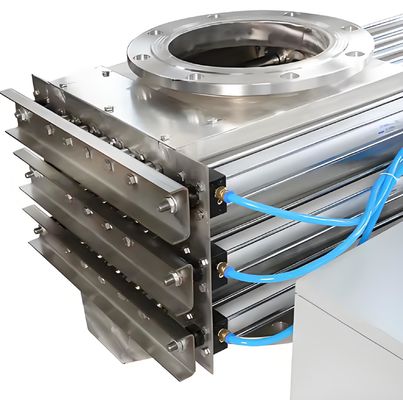

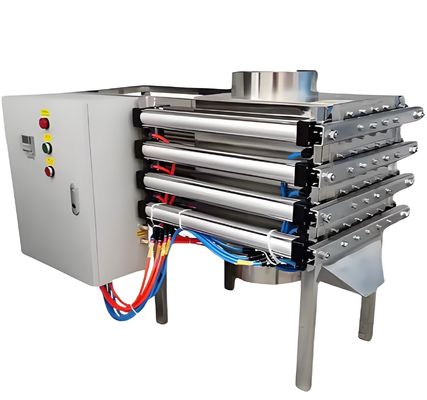

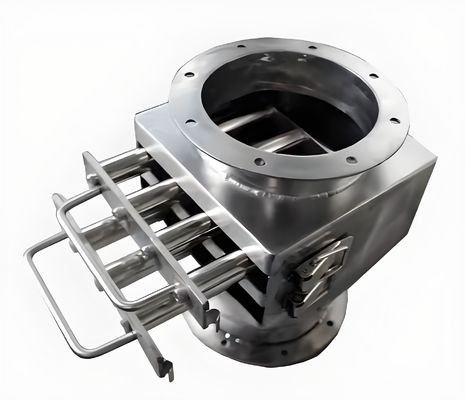

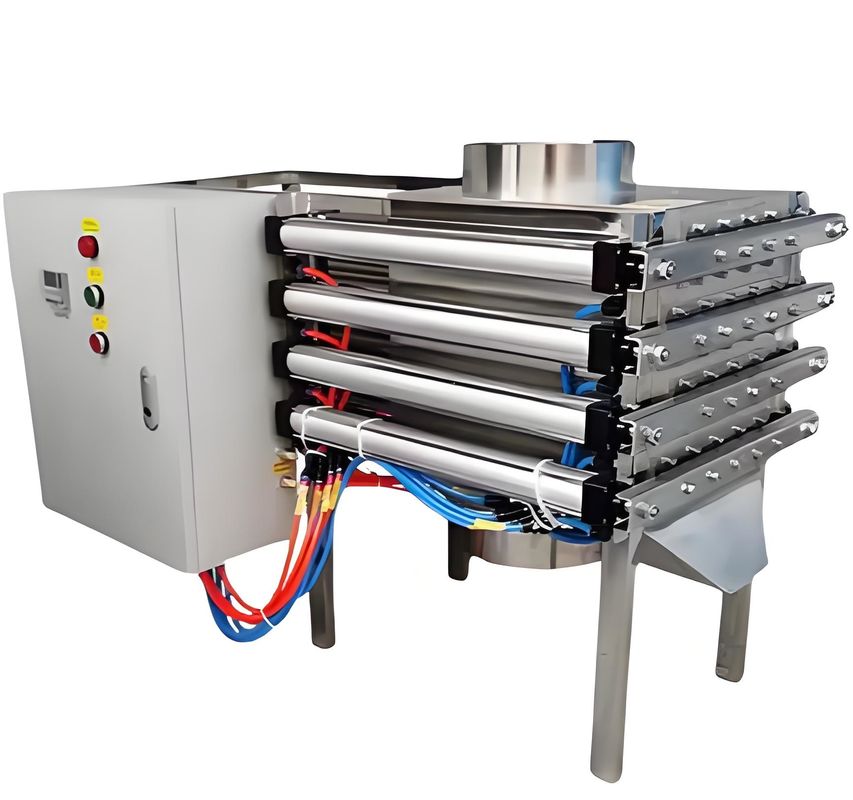

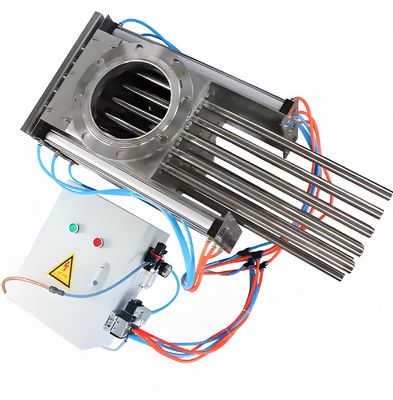

This stainless steel drawer magnetic separator with 12,000 Gauss magnetic bars is specifically engineered for removing iron contamination from flowing powders and chemical materials. Constructed entirely from 304 stainless steel, it effectively eliminates fine iron and paramagnetic particles from various dry, free-flowing products.

Key Features & Benefits

Efficient Ferromagnetic Removal: Powerful magnetic field captures fine iron and iron filings from dry bulk materials

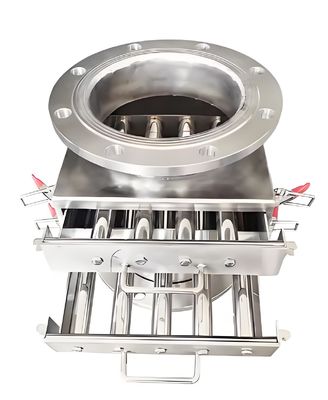

Easy Maintenance: Drawer design enables quick cleaning and reduces operational downtime
Customizable Configuration: Adjustable magnetic bar layers, capacity, and connection types to meet specific requirements
Optimized Flow Path: Zigzag material flow pattern ensures maximum tramp metal capture efficiency
Versatile Installation: Available for both square and round piping systems

Industry Applications

Food Processing: Removes ferromagnetic impurities from grains, sugar powder, tea, and other food raw materials
Chemical Industry: Purifies chemical raw materials to ensure product quality and process safety
Mining & Metallurgy: Eliminates iron impurities from ores and metal raw materials during processing
Plastics & Rubber: Protects product performance by removing ferromagnetic contaminants from raw materials
Environmental Protection: Separates ferromagnetic materials in waste treatment and recycling processes

Technical Specifications

Parameter	Specification
Product Name	Drawer Magnetic Separator
Magnetic Force	12,000 GS
Magnetic Bar Diameter	Customizable
Layers	Adjustable from 1 to 6 layers
Capacity	300-20,000 kg/h
Tolerance	±1%
Material	Nd2Fe14B / SUS 304 / SUS 316
Surface Treatment	Smooth
Connection Type	Flange or Quick-opening Type
Applicable Materials	Chemical Raw Materials, Dry Bulk Materials
