Stainless Steel Pneumatic Vacuum Screw Auger Conveyor for PVC Powder with Auger Tube

Stainless Steel Pneumatic Vacuum Screw Auger Conveyor for PVC Powder with Auger Tube

Brand Name:	WeSeW
Model Number:	SS-717
MOQ:	1 pc
Price:	Price Negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Features:

Insulated, Jacketed, Or Heated Options

Tensile Strength:

100,000 PSI

Thread Type:

Coarse

Usage:

For Drilling And Moving Materials

Application:

Industrial And Commercial

Spiral Diameter:

Customized

Point Type:

Sharp

Durability:

High

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Pneumatic Vacuum Screw Conveyor

PVC Powder Screw Conveyor

Stainless Steel Screw Conveyor

Product Description

Stainless Steel Pneumatic Vacuum Screw Conveyor for PVC Powder

This advanced screw conveyor system with auger tube is engineered for efficient material handling of PVC powder and similar materials in industrial applications.

Key Functions & Features

Efficient Material Handling: Advanced conveying technology ensures stable transportation of powder, granular, and bulk materials with precise regulation for continuous, uniform flow and enhanced production efficiency.

High Flexibility & Adaptability: Designed for various material characteristics and conveying environments with adjustable speed, pressure, and angle settings to prevent material damage while meeting diverse application requirements.

Intelligent Control System: Features advanced control with touchscreen interface and remote monitoring capabilities for real-time status tracking, parameter adjustments, and fault diagnosis to reduce maintenance costs and downtime.

Industrial Applications

Food Processing: Conveying flour, sugar, salt, grains, and finished products with hygienic design meeting food safety standards
Chemical Industry: Transporting powdered, granular, and bulk chemical materials including plastic pellets, fertilizers, and pigments with corrosion and wear resistance
Environmental Protection: Handling sludge, waste materials, and recycling processes with robust conveying capacity
Mining & Quarrying: Conveying ore, crushed stone, sand, and soil with durable construction for efficient operations
Agriculture & Livestock: Transporting feed, grain, and crops with strong adaptability for improved production efficiency

Technical Specifications

Attribute/Parameter	Description/Specification
Material Construction	Conveying Pipeline & Spiral Blade: 304/316 Stainless Steel Frame: Carbon Steel with Plastic Spraying
Conveying Capacity	5-50m³/h (adjusted based on material characteristics and distance)
Conveying Distance	Horizontal: ≤30m Incline/Vertical: Determined by design and material characteristics
Conveying Speed	Adjustable range: 0.5-5m/s
Motor Power	1.5-11kW (based on capacity and configuration)
Voltage/Frequency	380V/50Hz (customizable)
Control Mode	Smart Touch Control Panel + Remote Monitoring (PLC optional)
Safety Protection	Overload Protection, Emergency Stop, Fault Alarm System
Installation Options	Horizontal, Incline, Vertical (customized to site conditions)
Applicable Materials	Powdered, Granular, Lumpy materials
Working Environment	Temperature: -20°C to +40°C; Humidity: ≤90% (non-condensing)

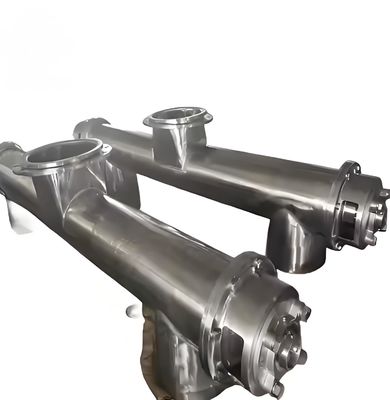

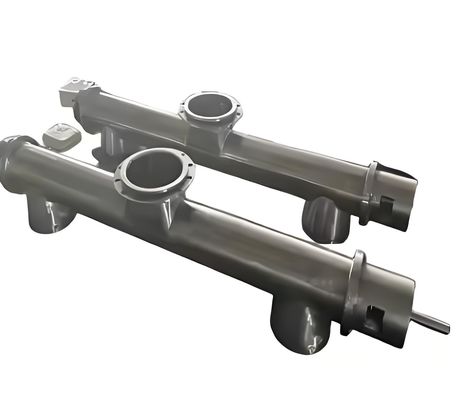

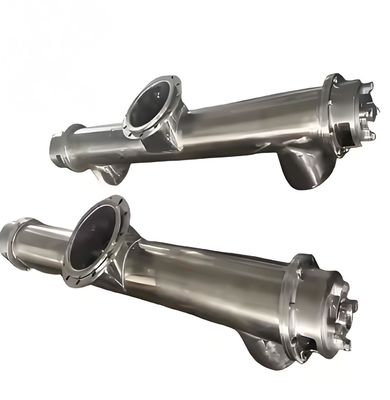

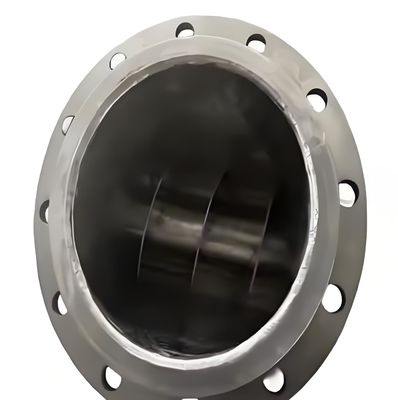

Product Images
