304/316L Stainless Steel Spiral Conveyor with High Conveyance Efficiency and Customizable Dimensions for Industrial Applications

304/316L Stainless Steel Spiral Conveyor with High Conveyance Efficiency and Customizable Dimensions for Industrial Applications

Brand Name:	WeSeW
Model Number:	SS-717
MOQ:	1 pc
Price:	Price Negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Flight Type:

Helicoid Or Sectional

Feature:

High Efficiency

Core Components:

Motor, Gearbox, Engine

Function:

Transmission System

Type:

Flexible Screw Conveyor

Electrical Component:

Customize

Strength:

High Tensile Strength

Drive Type:

Direct Drive

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

304 Stainless Steel Spiral Conveyor System

Sludge Spiral Conveyor System

Product Description

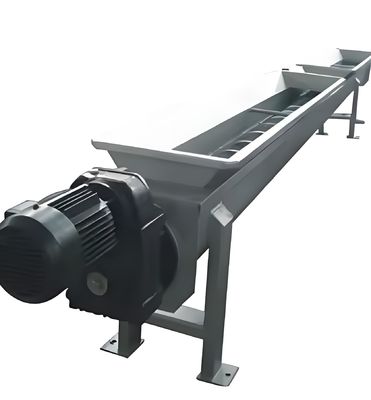

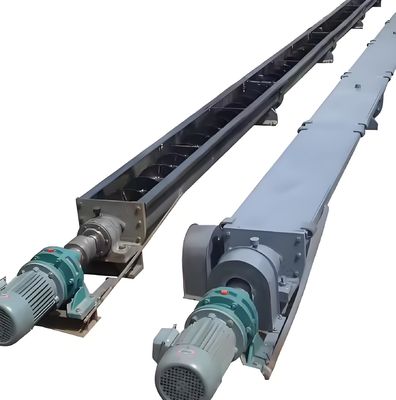

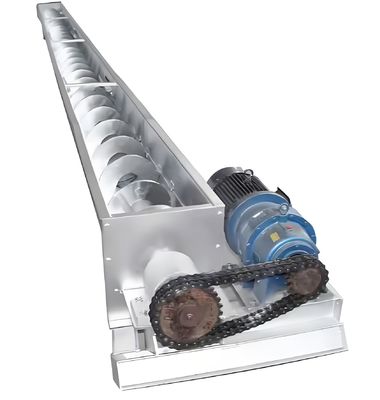

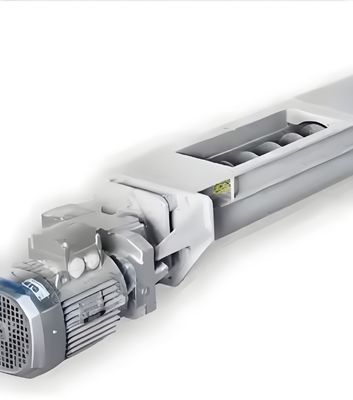

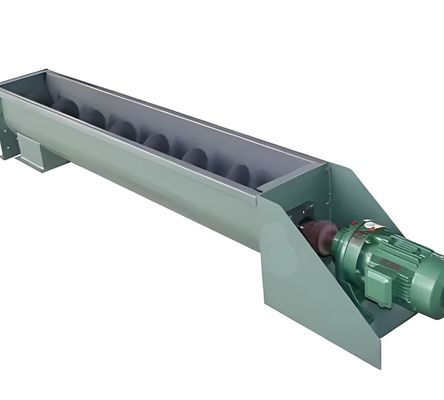

304/316L Stainless Steel Spiral Conveyor System

Advanced shaftless spiral conveyor system designed for handling coal ash, sludge, grain, and other materials with industrial spiral shaft construction.

Key Features

Advanced Sealing Technology: Ensures zero leakage during material conveyance, protecting the environment and maintaining cleanliness
High Conveyance Efficiency: Designed for efficient handling of various materials, especially viscous and sticky ones like oil-contaminated sludge
User-Friendly Operation and Maintenance: Easy to operate and maintain, reducing downtime and operational costs

Industry Applications

Environmental Remediation: Oil sludge conveyance and treatment in wastewater treatment plants and oil spill cleanup operations
Food & Beverage Industry: Conveying viscous food ingredients in processing lines, ensuring smooth production
Agricultural & Horticultural Waste: Efficiently conveying manure, compost, and other organic waste for recycling
Construction & Demolition Waste: Handling and recycling debris, sand, and other materials from construction sites
Mining & Mineral Processing: Conveying ore, tailings, and other minerals in mining operations

Technical Specifications

Attribute	Description
Product Name	Advanced Shaftless Spiral Conveyor System
Material Construction	304/316L Stainless Steel (Corrosion Resistant)
Power Rating	0.5-30HP (Customizable)
Dimensions	Custom Designed to Fit Site Requirements
Conveyor Diameter Range	150-1200mm (Customizable)
Frame & Support Structure	Heavy-Duty Stainless Steel
Operation Mode	Automatic/Semi-Automatic
Conveying Velocity	5-40m/min (Adjustable)
Conveyor Length	1-60m (Customizable)
Pipe Thickness	1.2-10mm (Customizable)
Electrical Supply	220V/380V, 50/60HZ (Customizable)
Target Industries	Environmental Remediation, Food & Beverage, Agriculture & Horticulture, Construction & Demolition, Mining & Mineral Processing
