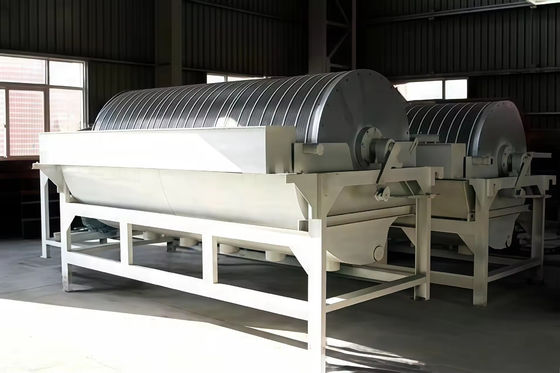

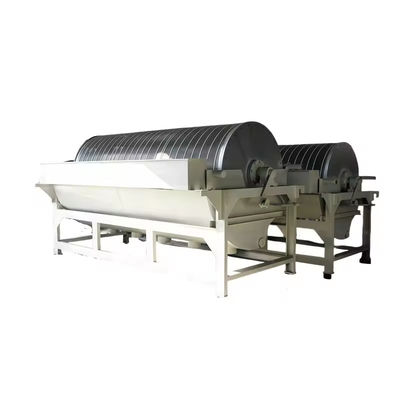

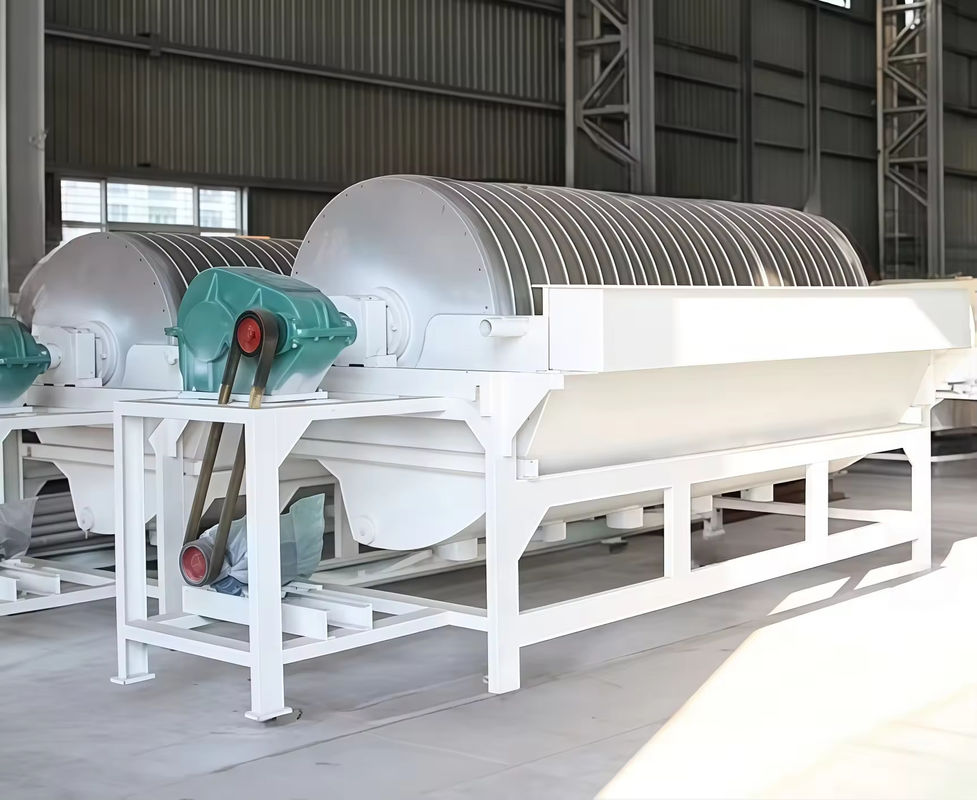

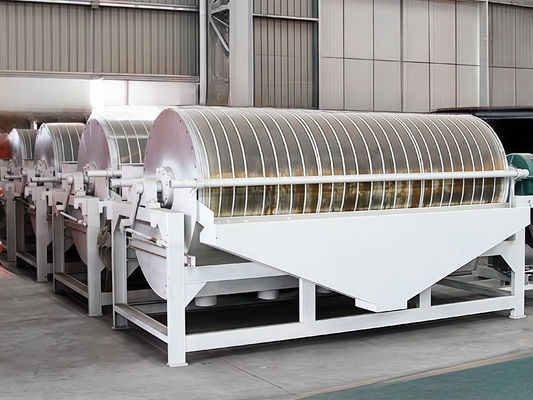

High Capacity Magnetic Drum Concentrator For Mineral Processing

Brand Name:	WeSeW
Model Number:	CX-717
MOQ:	1 pc
Price:	Price Negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Magnetic Field Strength:

≥3000GS

Voltage:

220V

Customized:

Customized

Core Components:

Bearing

Frequency:

50Hz

Customization:

Available Customized Request

Type:

Magnetic Separator

Material:

Stainless Steel

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Mineral Processing Magnetic Drum Concentrator

High Capacity Magnetic Drum Concentrator

Mineral Processing Drum Concentrator

Product Description

High Capacity Magnetic Drum Concentrator For Mineral Processing

High Intensity Magnetic Roller Separator for Sand Magnetic Separator Machine for Tin Ore

Magnetic Separator Function

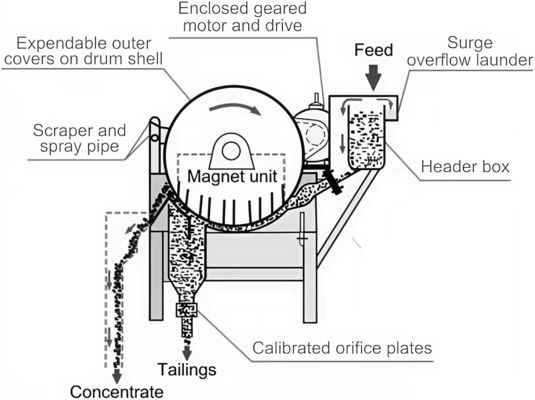

Magnetic separators, particularly the drum type shown here, function to separate ferromagnetic materials from non-ferromagnetic materials in a mixture. This is accomplished by strategically placing powerful permanent magnets or electromagnets within a rotating drum or above a conveying system. As material flows over or under the magnetic field, ferromagnetic particles are attracted to the magnetic source and adhere to the surface of the drum or belt. As the drum rotates or the belt is freed from the magnetic field, the magnetic particles are released and discharged, while the non-magnetic materials continue on their original trajectory due to gravity or momentum.

Key Functions Include:

Ferromagnetic Material Removal: Efficiently extract iron, steel, nickel, cobalt and other magnetic materials from various process streams
Material Purification: Remove unwanted metal contaminants to improve the quality of the final product
Resource Recovery: Separate valuable ferrous metals from waste streams for recycling
Equipment Protection: Remove stray metals that can damage downstream processing equipment such as crushers, grinders and conveyors
Magnetic Ore Concentration: Increase the concentration of valuable magnetic minerals in mined ore

Magnetic Separator Applications

Magnetic separators are widely used in numerous industries where separation of magnetic and non-magnetic materials is critical. Major application areas include:

Mining and mineral processing: Concentrate iron ore, remove magnetic contaminants from non-ferrous ores, and separate valuable magnetic minerals
Recycling: Recover ferrous metals from municipal solid waste, electronic waste, and scrap metal for reuse
Food processing: Remove stray metals from food to ensure safety and prevent equipment damage
Plastics industry: Remove iron contaminants from plastic regrind and virgin pellets
Grain and feed processing: Remove metal contaminants from grain and animal feed
Glass recycling: Remove iron contaminants from broken glass fragments
Foundries and metal processing: Separate ferrous materials from sand, slag and other by-products
Coal processing: Remove pyrite sulfur and tramp iron from coal
Cement industry: Remove tramp iron from raw materials and clinker

Technical Specifications

Product Attribute	Description/Specification
Product Name	High-Intensity Magnetic Roller Separator for Sand and Tin Ore
Magnetic Field Strength	High-intensity, adjustable for different applications
Separator Type	Roller separator
Processing Capacity	Customized to specific requirements
Feed Particle Size	Customized
Power Consumption	Customized
Dimensions (LxWxH)	Customized
Construction Material	High-strength, corrosion-resistant material
Control System	Manual or automated control options available
Motor Type	AC, DC, variable frequency drive, etc. (customized)
Installation Requirements	Determined based on site conditions
Main Applications	Sand and tin ore separation, mining, ore processing, environmental protection, recycling
