Stainless Steel 304 High-Accuracy Inclined Screw Conveyor with Variable Frequency Drive for Bulk Material Handling

Brand Name:	WeSeW
Model Number:	SS-717
MOQ:	1 pc
Price:	Price Negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Screw Channel Structure:

Deep Screw

Key Selling Points:

High-Accuracy

Installation:

Easy To Install

Control System:

Variable Frequency Drive

Outlet Type:

Discharge Spout Or Slide Gate

Feeding Mechanism:

Screw Auger

Voltage:

110V-240V

Application:

Bulk Material Handling

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Stainless Steel 304 Screw Auger Feeder

Variable Frequency Drive Inclined Screw Conveyor

High-Accuracy Spiral Conveyor Machine

Product Description

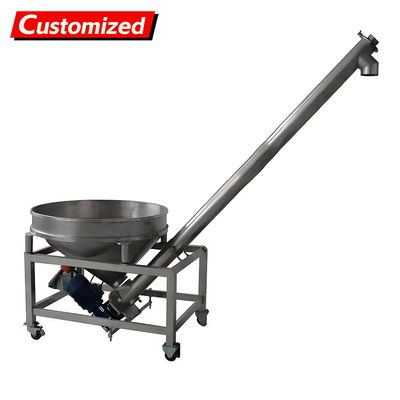

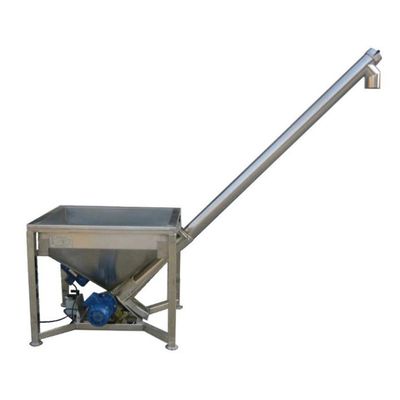

Custom Stainless Steel 304 Inclined Screw Conveyor

This industrial-grade inclined screw conveyor is engineered for efficient handling of food powders, fodder, and additives. Constructed from corrosion-resistant stainless steel 304, it delivers reliable performance across multiple industries.

Key Features & Benefits

Efficient Conveyance: Strong corrosion resistance with large carrying capacity, high speed, and uniform material delivery
Flexible Regulation: Adjustable rotation speed and flexible outlet arrangement for diverse material handling requirements
Durable & Low Maintenance: Compact design with simple installation, long service life, good anti-sticking properties, and easy cleaning

Industrial Applications

Agricultural Industry: Grains, feeds, and agricultural materials
Chemical Industry: Fertilizers, pesticides, pigments, and chemical products
Coal Industry: Coal powder and coal lumps
Food & Beverage: Flour, sugar, salt, and food ingredients
Metallurgical Industry: Ore and ore powder raw materials

Technical Specifications

Parameter	Specification
Product Name	Screw Feed Elevator
Application	Conveying Products
Voltage	220 V, 380 V
Power	2 kW
Core Components	Motor
Warranty	2 Years
Weight	500 kg
Vertical Height	1.8-2.0 m
Feed Opening Size	835 x 800 mm
Tube Length	2623 mm
Tube Diameter	114 mm
Transfer Speed	1000-3000 Kg/h
