oem Multi-Axis Stainless Steel Screw Conveyor Double Shaft Conveyor for Cereal Grains for Cement Mining Applications

oem Multi-Axis Stainless Steel Screw Conveyor Double Shaft Conveyor for Cereal Grains for Cement Mining Applications

Brand Name:	WeSeW
Model Number:	Kai001
MOQ:	1pcs
Price:	US$10,000~US$20,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,UL

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Machinery Test Report:

Provided

Usage:

Conveyor

Dimension(L*W*H):

Customized

Function:

Transmission System

Feature:

High Efficiency

Speed:

High Speed

Specification:

Customized

Package Size:

800.00cm * 50.00cm * 100.00cm

Package Gross Weight:

200.000kg

Structure:

Conveyor System

Packaging Details:

Wooden Case

Supply Ability:

10000 sets per month

Highlight:

stainless steel screw conveyor

double shaft screw conveyor

mining screw conveyor for cement

Product Description

Multi-Axis Stainless Steel Screw Conveyor for Cereal Grains & Cement Mining

Our multi-shaft screw conveyors are engineered for the flour milling industry, specifically designed for efficient transportation of cereal grains, flour, and by-products like bran. Constructed from durable carbon steel with food-grade surface finishing, these conveyors deliver reliable performance in demanding industrial applications.

Construction Details

U-shaped trough design with multiple outlet spouts
End plates at each trough termination point
Helicoid screw flighting welded to center pipe with coupling bushes
Dual end bearing assemblies with integrated shaft sealing units
Intermediate hanger bearings with self-lubricating bushes (quantity varies by length)
Secure bolted trough covers for easy maintenance

Key Conveying Features

Our shaftless screw conveyors excel in handling viscous materials across multiple industries including chemical processing, food production, pharmaceuticals, paper manufacturing, beverage processing, and environmental applications. They are particularly effective for transporting:

High-viscosity materials
Paste-like substances (chemical raw materials, waste pulp, malt, sludge)
Materials prone to winding or tangling

Performance Advantages

Environmental Protection: Fully enclosed design prevents material contamination during transport
Enhanced Capacity: Delivers 1.5x the volume of traditional shaft conveyors with equivalent diameter
Reliable Operation: Minimal risk of blockages during continuous use
Extended Reach: Capable of transmission distances up to 60-70 meters
Space-Efficient Design: Compact footprint with user-friendly operation and competitive pricing

Operational Requirements

a. Startup Procedure: Always initiate operation without load (empty casing). Begin feeding only after the conveyor is running.

b. Feeding Protocol: Gradually increase material input to reach rated capacity. Maintain consistent feed rates to prevent material accumulation and equipment overload.

c. Shutdown Process: Cease feeding before stopping operation to ensure complete material discharge from the casing.

d. Material Specifications: Avoid conveying hard contaminants that could cause jamming or mechanical damage.

e. Maintenance Checks: Regularly inspect all components during operation. Immediately tighten any loose fasteners to maintain structural integrity.

f. Safety Precautions: Never remove the protective cover while the conveyor is in operation.

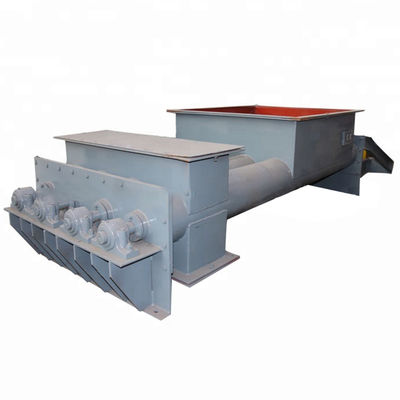

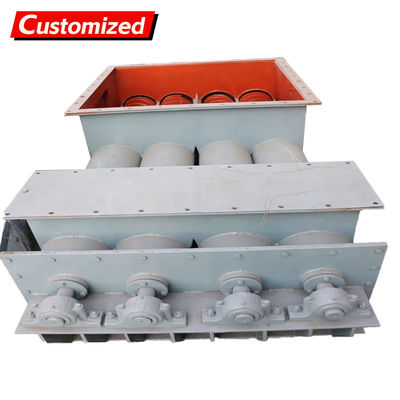

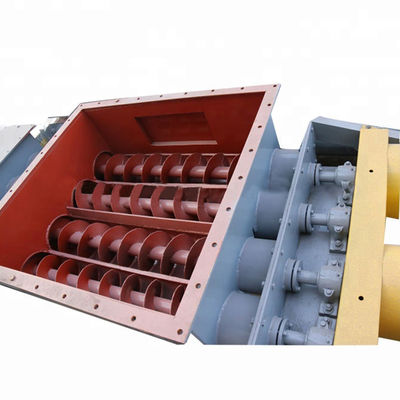

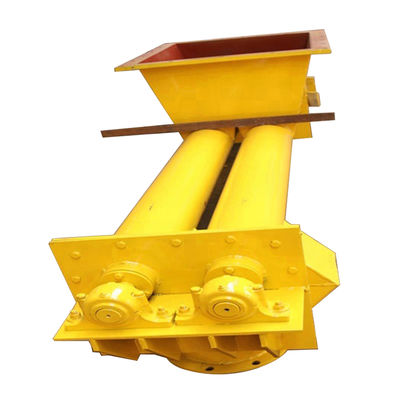

Product Images
