Custom Permanent Strong Magnet Grid 12000 Gauss Neodymium Bar Rod Separator Stainless Filter High Magnetic Hopper Grate Magnet for lithium battery manufacturers, factories, and manufacturing industrie

Brand Name:	WeSeW
Model Number:	CX-717
MOQ:	1 pc
Price:	Price Negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	1000000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,UL

Magnetic Field Strength:

≥3000GS

Voltage:

220V

Customized:

Customized

Core Components:

Bearing

Frequency:

50Hz

Customization:

Available Customized Request

Type:

Permanent High-strength Magnetic Grid High-magnetic-force Hopper Grid Magnet

Material:

Stainless Steel

Packaging Details:

Wooden Case

Supply Ability:

1000000pcs per month

Highlight:

12000 Gauss neodymium bar magnet

stainless steel magnetic separator grate

high power hopper magnet for lithium battery

Product Description

Custom Permanent Strong Magnet Grid 12000 Gauss Neodymium Bar Rod Separator

Food Grade Permanent Strong Round Magnetic Grid With SUS316L

This magnetic grid separator features 1-9 neodymium magnet bars for efficient filtration and separation applications. Designed for various industrial uses including lithium battery manufacturing.

Product Overview

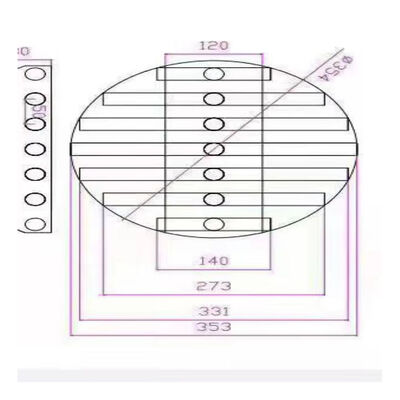

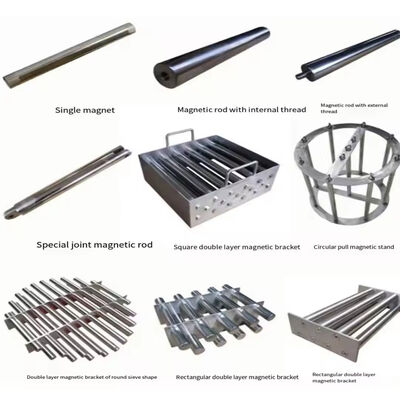

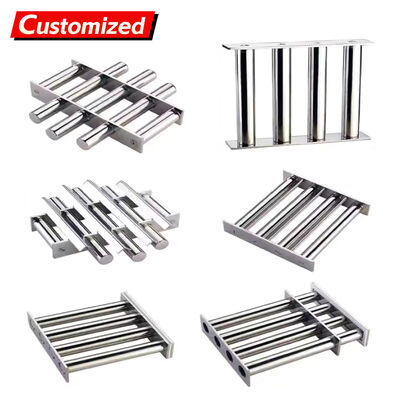

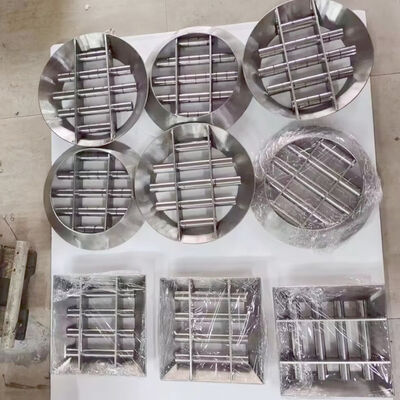

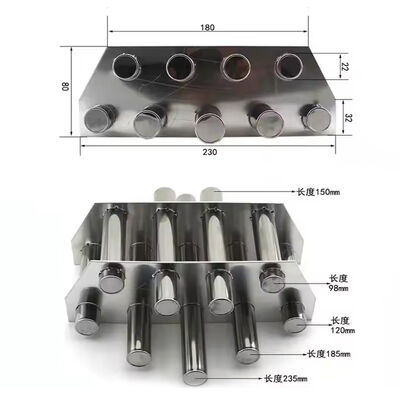

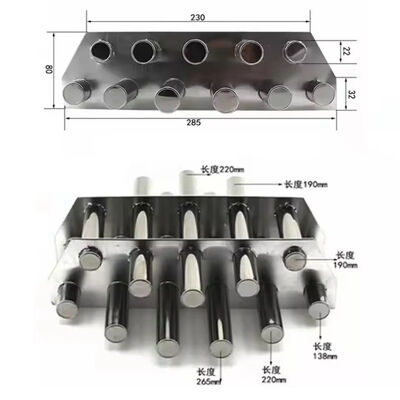

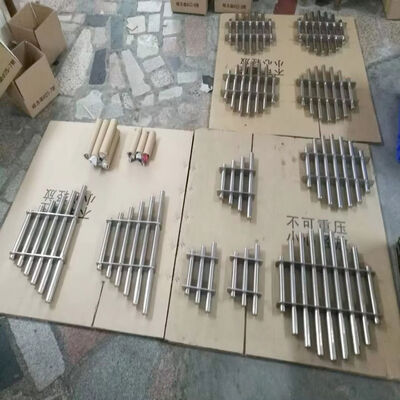

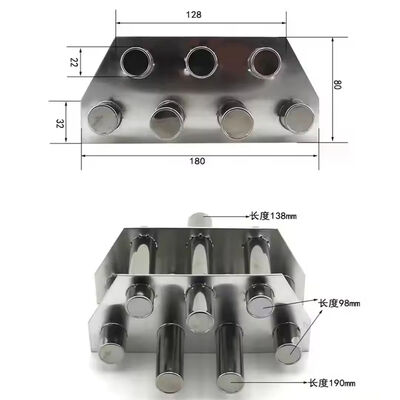

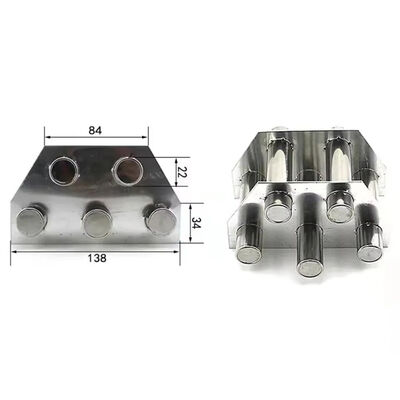

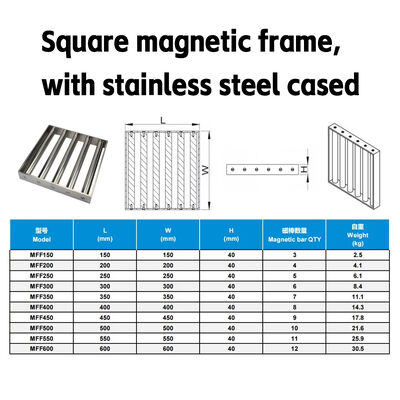

The magnetic grid consists of parallel magnetic bars spaced and firmly fixed to a grid bracket or frame. Available in multiple configurations (square, circular, drawer, wing, rotary) to match different hoppers, chutes, pipes, and openings.

Key Features

Removes ferromagnetic impurities and weak magnetic iron contaminants
Purifies materials and protects downstream equipment
Improves material quality and processing efficiency
Suitable for free-flowing, externally-conveyed materials (pellets, powders)
Effective for small paramagnetic particles

Applications

Medicine, food, chemicals, plastics, ceramics, tobacco, glass and other industries.

Customization Options

Surface Material: SUS304, SUS316L

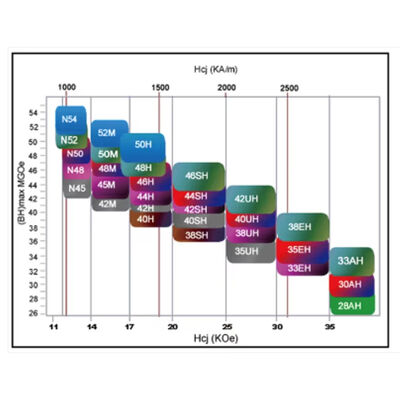

Magnetic Strength: 2000-12000 Gauss with different grade magnets
Working Temperature: ＜80℃ to ＜350℃ options available
Size and Shape: Customized configurations including multi-layers, round, square, irregular, half round
Cleaning Method: Regular type and Easy cleaning type options

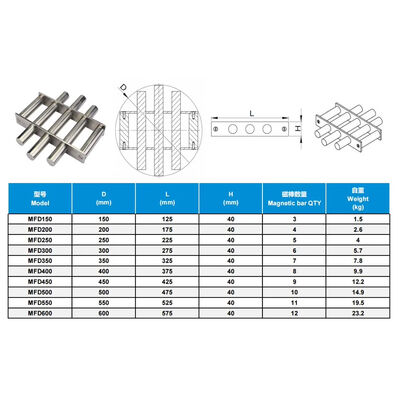

Technical Specifications

Type	Gravity Separator
Dimension	Customized
Material	SS304 or SS316 stainless steel tube + Ceremic/NdFeB magnet
Grade	12000 Gauss
Shape	Magnetic Grid, Round/Rectangular/Custom
Surface Treatment	Mirror Polish
Certification	RoHs CE ISO9001

Note: Special sizes available upon request. Dimensions and specifications are subject to change without notice.
