products details

Home Products

Custom U-Type Mixer (Horizontal Twin-Screw Mixer) High-efficiency, multi-functional powder mixing equipment for blending powdered materials, suitable for food, chemical, and ceramic industries.

Name: Custom U-Type Mixer (Horizontal Twin-Screw Mixer) High-efficiency, multi-functional powder mixing equipment for blending powdered materials, suitable for food, chemical, and ceramic industries.
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: China
Price: 2,785.00 USD
Availability: InStock

Brand Name:	WESEW
Model Number:	China
MOQ:	1 pc
Price:	US$5500~US$70,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ce/ul

Material:

Stainless Steel/custom

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Core Components:

Motor

Dimension(L*W*H):

Customized

Specification:

Customized

Customization:

Available Customized Request

Packaging Details:

Wooden Case

Supply Ability:

10000 sets per month

Highlight:

U-Type powder mixer machine

Horizontal twin-screw mixer equipment

Powder mixing machine for food industry

Product Description

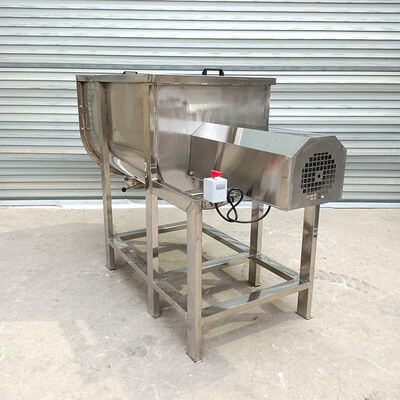

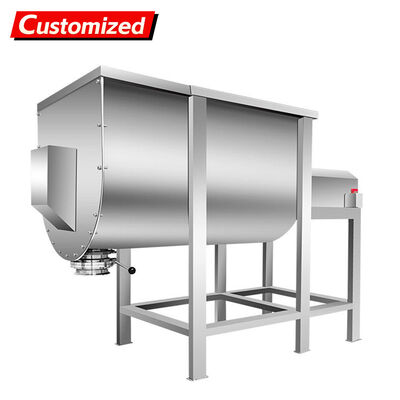

Custom U-Type Mixer (Horizontal Twin-Screw Mixer)

High-efficiency, multi-functional powder mixing equipment for blending powdered materials, suitable for food, chemical, and ceramic industries.

Product Overview

This U-shaped mixer (horizontal twin-screw ribbon mixer) is a highly efficient, versatile powder blending device suitable for multiple industries including food, chemical, and ceramics. Featuring high mixing uniformity, minimal material residue, and easy maintenance, it is particularly well-suited for solid-solid and solid-liquid blending. Widely used for mixing materials such as flour, pesticides, and ceramic powders, it enhances production efficiency while ensuring consistent blending quality.

Equipment Function

The U-type mixer, also known as a horizontal twin-screw mixer, is designed to uniformly blend various powdered and liquid ingredients. It features broad applicability, excellent mixing uniformity, minimal material residue, and convenient maintenance, making it an ideal piece of equipment for processing powdered materials.

Application Areas

Used for solid-solid (powder-to-powder) and solid-paste (powder-to-paste) mixing in pesticides, veterinary drugs, food, chemicals, biotechnology, aquaculture, ceramics, refractories, plastics, compound fertilizers, and other industries. It is particularly suited for mixing viscous materials.

Common Application Sectors

Food Industry: Flour, cornmeal, milk powder, soybean meal, powdered sugar, starch, salt, yeast powder, spice powders, etc.
Metallurgy & Mining: Iron powder, graphite powder, magnetic material powders, mineral powders, etc.
Ceramics Industry: Ceramic powders, kaolin powder, feldspar powder, quartz powder, glaze powders, ceramic granules, etc.

Technical Specifications

Double-Screw Belt Mixer

Model	HCJX-200Type	HCJX-300Type	HCJX-500Type	HCJX-1000Type	HCJX-2000Type
Available Volume (L)	430	580	880	1600	2700
Operating Voltage (V)	220/380	220/380	380	380	380
Motor Power (KW)	3	3	5.5	7.5	11.5
Spindle Speed (rpm)	25	25	25	23	22
Cylinder Wall Thickness (mm)	2	2	2	2.5	3
Single Mixing Time (min)	3-6	4-6	6-9	8-12	10-15
Discharge Port Diameter (mm)	133	159	159	219	219
Cylinder Dimensions (mm)	1150660710	1320760810	1250850900	189010501100	220012501300
Overall Dimensions (mm)	20167421249	22988461424	25639581624	350011581950	380014002350

Product Images
