Magnetic Separation Machine
Created with Pixso.

Custom Mixing Reactors 500L–100,000L Stainless Steel Chemical Reaction Vessels Suitable for mixing and dissolving solid-liquid materials in coatings/pigments/dispersions

Custom Mixing Reactors 500L–100,000L Stainless Steel Chemical Reaction Vessels Suitable for mixing and dissolving solid-liquid materials in coatings/pigments/dispersions

Brand Name: WeSeW
Model Number: RG-717
MOQ: 1 pc
Price: Price Negotiation
Payment Terms: T/T,Western Union
Supply Ability: 1000000pcs per month
Detail Information
Place of Origin:
China
Certification:
CE,UL
Features:
Flexible Design, Easy To Clean
Rotation Direction:
Clockwise/Counterclockwise
Screw Type:
Helicoid Or Sectional
Strength:
High Tensile Strength
Usage:
Conveyor
Inclination Angle:
0-45 Degrees
Packaging Details:
Wooden Case
Supply Ability:
1000000pcs per month
Highlight:

500L stainless steel mixing reactor

,

chemical reaction vessel for coatings

,

solid-liquid mixing reactor for pigments

Product Description
Custom Mixing Reactors 500L–100,000L
Stainless Steel Chemical Reaction Vessels for mixing and dissolving solid-liquid materials in coatings, pigments, and dispersions
Type: Reaction Kettle
Capacity Range: 500L - 100,000L
Voltage: 110V, 220V, 230V or Customized
Operation: Automatic
Power: 11W
Mixing Type: Frame Mixer
Stirring Speed: 1450 rpm
Heating Method: Oil Heating
Warranty: 1 Year
After-sales Service: Video Technical Support
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Applications
Paint, coating, inks, pigment, agrochemical, printing ink, and chemical industries for mixing, dissolving and dispersing liquid and solid-liquid materials
Key Features
  • Minimal air intake and retention during dispersing with excellent mixing and adjustment results
  • Rapid material dissolution with smaller particles achieved through middle or high-speed mixing
  • Available in multiple configurations: vacuum, normal pressure, pressure, cooling, and heating to meet diverse processing requirements
  • Customizable dimensions and colors to suit specific operational needs
Technical Specifications
Type Capacity (L) Power (kW) Disc Diameter (mm) Speed (rpm) Diameter (mm) Height (mm)
FDK0.5 500 7.5 250 0-1450 800 1000
FDK1 1000 15 300 0-1450 1000 1250
FDK2 2000 30 350 0-1450 1400 1540
FDK3 3000 37 400 0-1450 1500 1880
FDK4 4000 45 450 0-1450 1600 2180
FDK5 5000 55 480 0-1200 1800 2235
FDK6 6000 75 500 0-1200 1900 2360
FDK8 8000 90 550 0-1000 2000 2720
FDK10 10000 110 600 0-1000 2200 2820

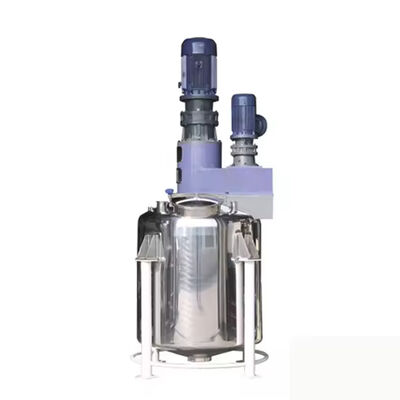

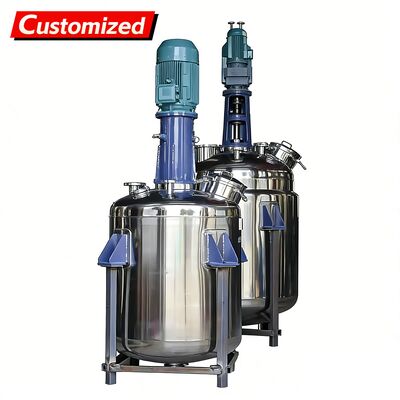

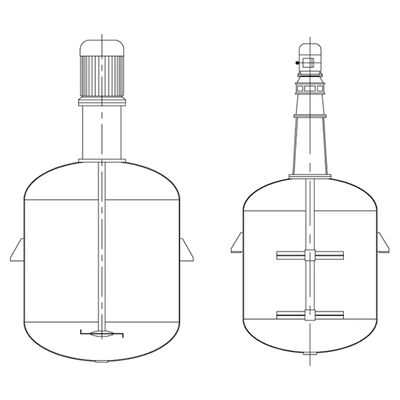

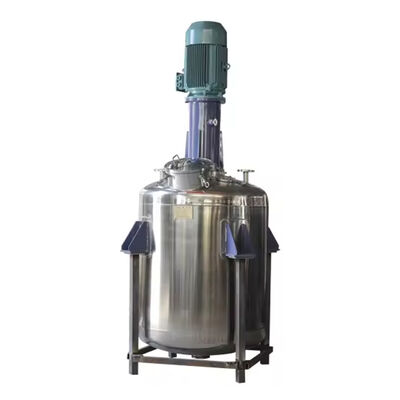

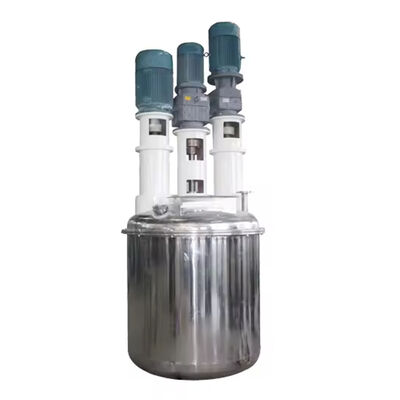

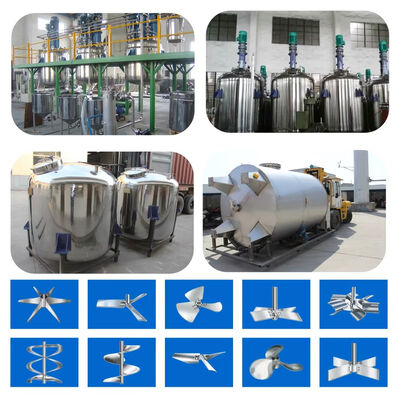

Product Gallery
