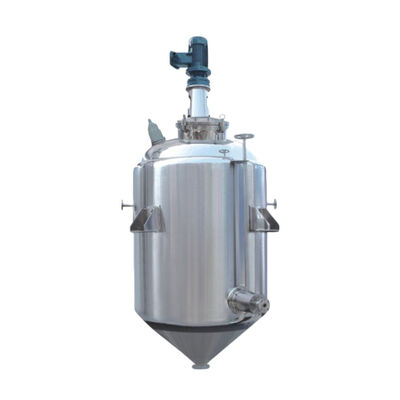

Custom Stainless Steel Reactors Stainless Steel Jacketed Reactors 316L/304 Stainless Steel Construction Internal Surface Polished Finish Suitable for Pharmaceutical and Chemical Industries

Custom Stainless Steel Reactors Stainless Steel Jacketed Reactors 316L/304 Stainless Steel Construction Internal Surface Polished Finish Suitable for Pharmaceutical and Chemical Industries

Brand Name:	WeSeW
Model Number:	RG-717
MOQ:	1 pc
Price:	Price Negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	1000000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,UL

Features:

Flexible Design, Easy To Clean

Rotation Direction:

Clockwise/Counterclockwise

Screw Type:

Helicoid Or Sectional

Strength:

High Tensile Strength

Usage:

Conveyor

Inclination Angle:

0-45 Degrees

Packaging Details:

Wooden Case

Supply Ability:

1000000pcs per month

Highlight:

Stainless steel jacketed reactors

316L stainless steel reactors

Pharmaceutical industry stainless reactors

Product Description

Custom Stainless Steel Reactors

High-quality stainless steel jacketed reactors with 316L/304 stainless steel construction and internal polished finish, specifically designed for pharmaceutical and chemical industries.

Product Specifications

Type	Tank Reactor
Voltage	220V/380V/415V/440V
Capacity	100 L, 200 L, 1000 L
Automatic Grade	Semi-Automatic
Power	0.15~75kw
Weight	1500 KG
Dimensions	According to Capacity

ODM Stainless Steel Steam Jacketed Tank Reactor

This versatile reactor is essential equipment for mixing liquids and solids in pharmaceutical and chemical applications, facilitating chemical reactions under controlled temperature and pressure conditions.

Product Application

The ODM Stainless Steel Steam Jacketed Tank Reactor efficiently mixes multiple liquid and solid components using advanced mixing systems. It maintains precise temperature control through integrated heat exchange systems and ensures uniform material mixing with anchor or frame-type agitators. The variable frequency speed adjustment and temperature display/control capabilities make it ideal for sensitive industrial processes.

Designed with GMP compliance in mind, the reactor features a completely closed system with rotating-pressure machined end plate covers to maintain aseptic conditions.

Technical Specifications

Model	WJG 300	WJG 400	WJG 500	WJG 600	WJG 1000	WJG 2000	WJG 3000	WJG 5000
Volume (L)	300	400	500	600	1000	2000	3000	5000
Vessel Op. Pre. (MPa)	≤0.2
Jacket Op. Pre. (MPa)	≤0.3
Motor Power (Kw)	0.55	0.55	0.75	0.75	1.1	1.5	1.5	2.5
Stirring Speed (r/m)	36~53
Diameter (mm)	900	1000	1150	1150	1400	1500	1700	2000
Height (mm)	1800	1900	2200	2300	2600	2900	3200	3700
Heat Exchanging Area (m2)	2	2.4	2.7	3.1	4.5	7.5	8.6	10.4

Main Features

Constructed with stainless steel 316L or 304, featuring internal mechanical polishing and external 304 full-steel welding with insulation
Multiple jacket types available: full jacket, semi-coil jacket, or dimple jacket
Advanced insulation options: aluminum silicate, polyurethane, pearl wool, or rock wool
Versatile agitation system with top centre-entry or side-entry agitators
Multiple agitator types: frame, anchor, paddle, turbine, propeller
Adjustable agitation speed: 10~120r/min with frequency control

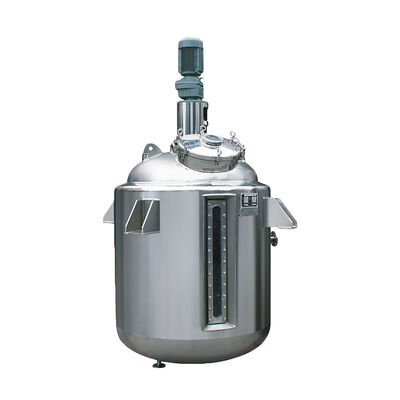

Comprehensive liquid level monitoring with tubular glass or ball float level meters
Complete equipment accessories including quick-open manhole, sight glass, inspection light, thermometer, and sample nozzles
Integrated CIP cleaning system with cleaning balls and air breathing apparatus
Online steam sterilization capability (121℃)
Fully customizable according to customer requirements and product processing needs

Additional Capabilities

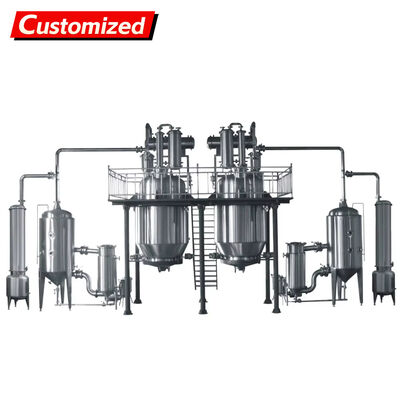

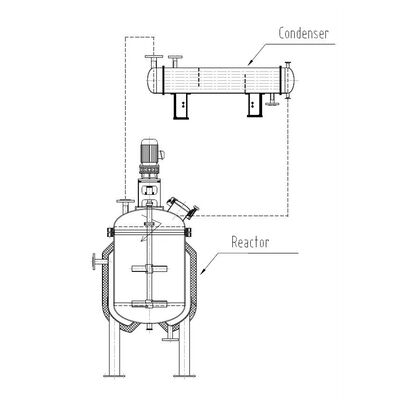

The complete reaction system can be equipped with condensers, condensate receivers, circulation pumps, and piping systems tailored to specific customer requirements and technological processes. The tank body includes CIP automatic rotary spray cleaning balls, thermometers, manholes, pressure gauges, explosion-proof inspection lights, sight glasses, and quick-open feeding inlets for optimal operational convenience.

Product Images
