High-Strength Drum Gear Coupling with Non-Standard Customization and CNC Machining for Heavy Machinery

Brand Name:	WeSeW
Model Number:	CNC0184
MOQ:	1pcs
Price:	US$5~US$50 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001/UL

OEM/ODM:

OEM ODM CNC Milling Turning Machining Service

Material Capabilities:

Aluminum, Brass, Bronze, Copper, Hardened Metals

Application:

Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal Forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery

Standard:

DIN, ASTM, GOST, GB, JIS, ANSI, BS

CNC Machining Or Not:

CNC Machining

Micro Machining Or Not:

Micro Machining

Processing Method:

Customer′s Engineering Drawing

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

High-Strength Gear Coupling

Non-Standard Customization Drum Gear Coupling

CNC Machining Flexible Coupling

Product Description

Custom Gear Shaft Gear Drum Couplings

High-strength drum gear flexible couplings designed for machinery equipment components with non-standard customization capabilities.

Product Overview

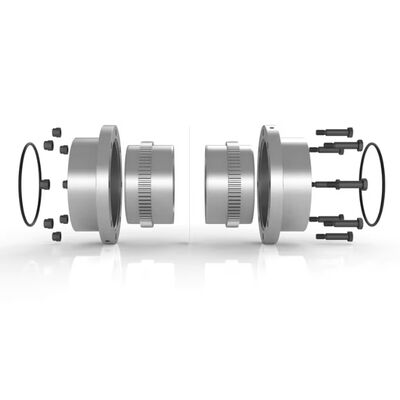

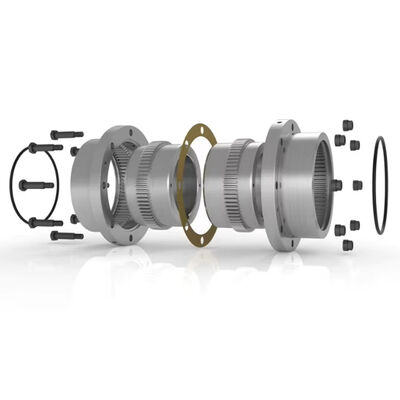

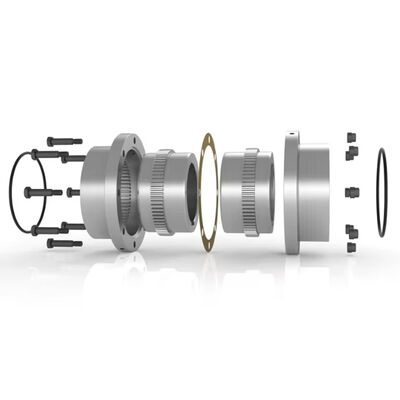

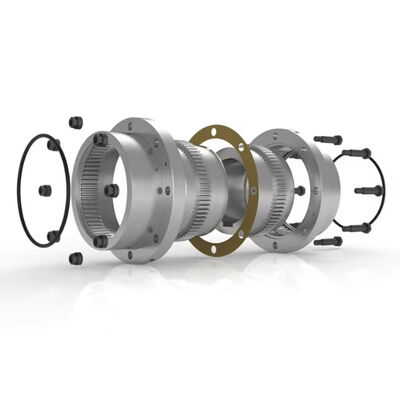

The Drum Gear Coupling consists of two drum-shaped outer gear sleeves and a pair of straight teeth inner gear rings. Torque transmission occurs through the meshing of inner and outer teeth, with angular displacement compensation achieved via the swing of the straight teeth inner ring axis around the drum shaft sleeve.

Key Features

Large angular displacement capacity (up to 6°, typically 1°30'-3°)
Superior tooth pair contact for smooth operation
High transmission capacity and efficiency
Extended service life and reliable performance
Excellent torque transmission capabilities

Applications

Widely used in metallurgical machinery, heavy machinery, mining equipment, lifting machinery, transport machinery, and various industrial transmission systems.

Industries Served

Manufacturing plants, machinery repair shops, construction, energy & mining, food & beverage processing, printing, advertising, retail, hospitality, and agricultural operations.

Technical Specifications

Material	Steel (45# Steel Body)
Standard or Nonstandard	Standard
Structure	Gear
Bore Diameter	10MM
Maximum Speed	3,000 RPM
Rated Torque	500 N·m
Type	Gear
Customized Support	OEM
Flexible or Rigid	Rigid
Product Name	Flexible Couplings Coupler
