Custom Flexible Shaft Coupling with 100 N*m Rated Torque and 1000 RPM Maximum Speed for Industrial Equipment

Brand Name:	WeSeW
Model Number:	CNC0184
MOQ:	1pcs
Price:	US$5~US$50 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001/UL

Name:

Flexible Star Couplings

OEM/ODM:

OEM ODM CNC Milling Turning Machining Service

Material Capabilities:

Aluminum, Brass, Bronze, Copper, Hardened Metals

Application:

Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal Forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery

Standard:

DIN, ASTM, GOST, GB, JIS, ANSI, BS

CNC Machining Or Not:

CNC Machining

Micro Machining Or Not:

Micro Machining

Processing Method:

Customer′s Engineering Drawing

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

100 N*m Rated Torque Flexible Shaft Coupling

1000 RPM Maximum Speed Spider Coupling

Flexible Structure Jaw Coupling

Product Description

Custom Flexible Shaft Couplings

Jaw couplings, spider couplings, and polyurethane elastomer couplings available in aluminum and stainless steel materials.

Product Specifications

Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction Works, Energy & Mining
Material	Aluminum / Stainless Steel
Standard or Nonstandard	Nonstandard
Structure	Jaw / Spider
Warranty	6 months
Bore Diameter	10mm, 20mm, or as requested
Maximum Speed	1,000 RPM
Rated Torque	100 N*m
Type	Flexible
Customized Support	OEM, ODM
Product Name	Spider Coupling
Application	Industrial Equipment
Body Material	Stainless Steel, Aluminum, Steel
Feature	High Torque
Shaft Size	As requested
Color	As requested

Product Overview

Flexible shaft couplings utilize the deformation of elastic elements to compensate for installation errors and relative displacement in axial, radial, and angular directions between two shafts. Functioning as the "shock-absorbing joints" of mechanical systems, they absorb vibrations, reduce impacts, and smoothly transmit torque from the driving shaft to the driven shaft.

Key Advantages

Superior misalignment tolerance that alleviates shaft stress
Effective vibration damping and noise reduction
Enhanced equipment stability and lifespan
Maintenance-free, leak-free designs suitable for harsh environments
Significant advantages compared to rigid couplings

Industry Applications

Our flexible couplings have extensive applications across various industries:

Urban Rail Transit: Flexible fiber couplings connect traction motors to gearboxes, reducing weight and noise to enhance passenger comfort
Steel and Chemical Industries: Synchronous permanent magnet super-elastic couplings achieve 5% energy savings while protecting transmission chains
Precision Equipment: CNC machine tools utilize diaphragm couplings to ensure high-precision positioning

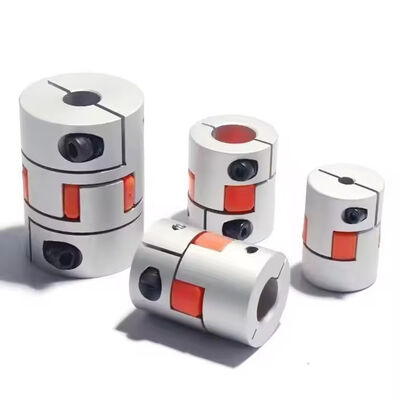

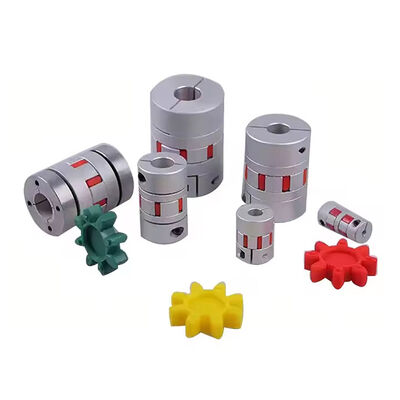

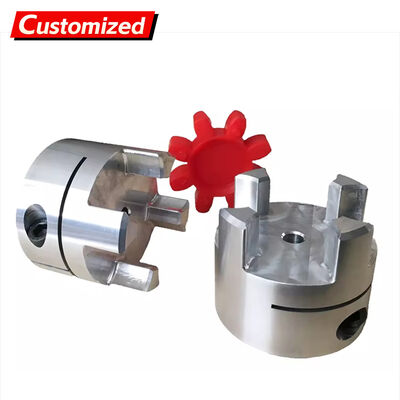

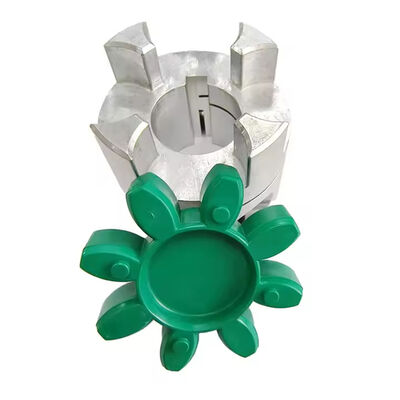

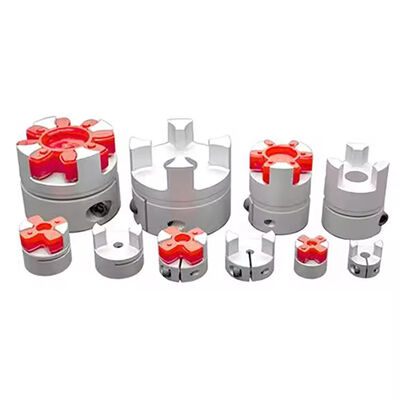

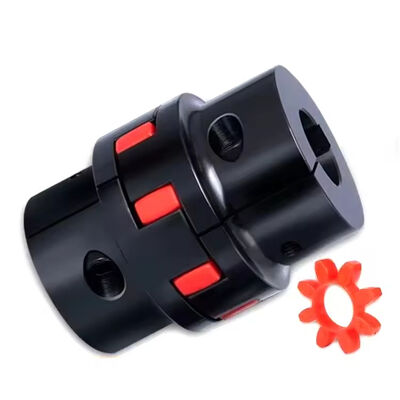

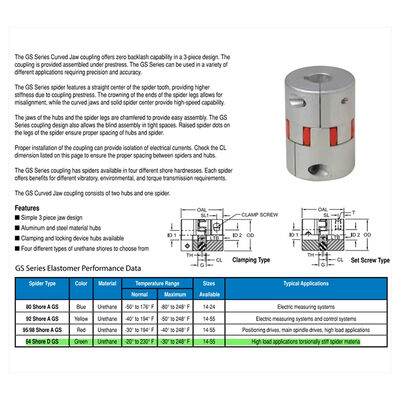

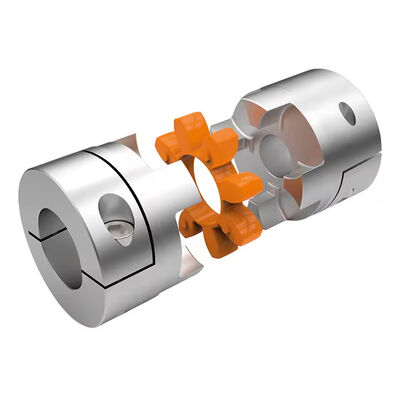

Product Gallery
