Semi-Automatic Granule Filling Machine with Stainless Steel 201/304 Construction and 5-10 Bags/Min Capacity

Brand Name:	WeSeW
Model Number:	Kai003
MOQ:	1 pc
Price:	US$15,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Product Name:

Powder Filling Machine

Core Components:

Motor, Gearbox

Color:

Clients Request

Specification:

Customized

Trademark:

WESEW

Origin:

China

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Product Description

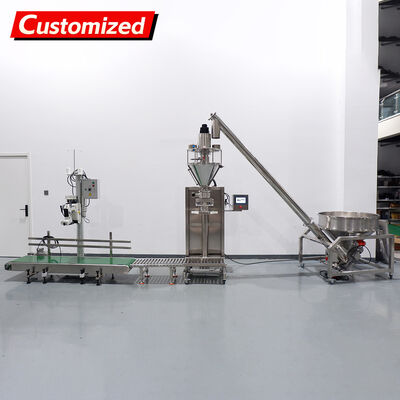

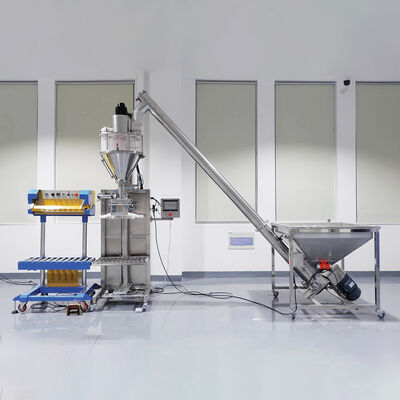

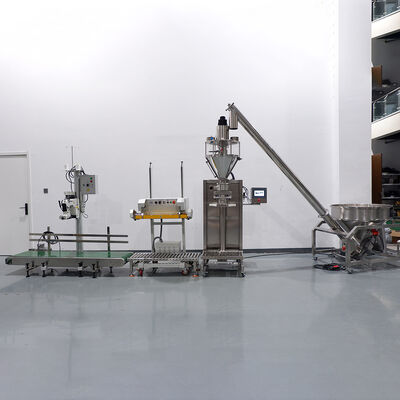

Semi-Automatic Granule Filling and Sealing Machine

Custom large-scale 20kg/30kg/50kg powder filling machine and large bag (ton bag) sealing & sewing machine with stainless steel 201/304 construction and 5-10 bags/min capacity.

Technical Specifications

Filling Material	Powder, Other
Packaging Type	Barrel, Stand-up Pouch, Bags, Pouch
Automatic Grade	Semi-Automatic
Voltage	AC380V
Driven Type	Electric
Application	Food, Beverage, Commodity, Chemical
Packaging Material	Plastic, Paper, Other
Core Components	Motor, PLC, Other
Filling Accuracy	±1%
Weight	500 KG
Dimensions (L×W×H)	1000 × 650 × 2000 mm
Filling Speed	30-200 bags/hour
Operation	Touch Screen Operating System
Warranty	1 Year
After-sales Service	Online support, Video Technical Support, Field installation, commissioning and training

Product Introduction

The powder filling packaging machine is mainly used for coffee powder, flour, yeast powder, sugar, salt, veterinary drugs, premixes, plaster powder, additives, milk powder, starch, seasonings, enzyme preparations, fodder and other powder-like quantitative packing.

Key Features

Integrated mechanical, electrical, optical, and instrument control with single-chip control system
Automatic quantitative filling with automatic adjustment of measurement errors
Working principle: Auger volume or Auger weight
Fast speed using spiral blanking and light-control technology
High precision with servo motor and electronic weighing technology
Filling volume: 5g to 5000g continuously adjustable via electronic keyboard
Wide application range for various fluidity powders
Suitable for bags, cans, bottles and other containers
Automatic tracking of errors caused by material proportion and level changes
50L hopper capacity with openable visibility structure design
Easy cleaning with no need for concentricity adjustment
Photoelectric switch control with manual bagging
Stainless steel material contact parts to prevent cross-contamination
Optional auger feeding device with sensor control
