Custom Stainless Steel 350L Capacity Semi-Automatic Horizontal Ribbon Powder Mixer for PVC

Custom Stainless Steel 350L Capacity Semi-Automatic Horizontal Ribbon Powder Mixer for PVC

Brand Name: WeSeW
Model Number: Kai003
MOQ: 1 pc
Price: US$15,000~US$30,000 per pc
Payment Terms: T/T,Western Union
Supply Ability: 10,000 pieces per month
Detail Information
Place of Origin:
china
Certification:
CE/UL
Model NO.:
Kai003
Condition:
New
Control System:
Button Control
Cooling Method:
Air Cooling
Heating Method:
Electric Heating
Main Material:
Alloy Steel, Carbon Steel, Stainless Steel
Mixing Capacity:
500-1000L
Safety Features:
Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard
Speed Control:
Variable Speed
Speed Range:
30-39 R/min
Stirring Type:
Spiral
Temperature Control:
With Heating
Working:
High Speed Mixer
Material Processed:
Plastics, Chemicals, Food, Medicine
Key Selling Points:
Easy To Operate
Machinery Test Report:
Provided
Application Scope:
Food Pharmacy Chemical
Core Components:
Motor, Gearbox
Color:
Clients Request
Transport Package:
Wooden Box
Specification:
Customized
Trademark:
WESEW
Origin:
China
Supply Ability:
500000/Year
Package Size:
150.00cm * 50.00cm * 50.00cm
Package Gross Weight:
80.000kg
After-sales Service:
Engineers Available To Service Machinery Overseas
Application:
Granules, Liquid, Liquid With Suspended Solids, Powder, Viscous Fluid
Application Area:
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical
Customization:
Available Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Packaging Details:
Wooden Case
Supply Ability:
10,000 pieces per month
Product Description
Custom-made Industrial Stainless Steel Semi-Automatic 350-Liter Horizontal Belt-Type PVC Powder Mixer
This industrial-grade ribbon mixer features a 350-liter capacity with a single-batch output of 300 kg. Powered by a 5.5 kW motor and constructed from durable stainless steel, it is designed for efficient mixing of plastic powders including EVA, PE, PP, PVC, PU, TPR, ABS, and PBS materials.
Product Specifications
Product Type: Ribbon Mixer
Voltage: 380V/415V/440V
Configuration: Horizontal
Automatic Grade: Semi-Automatic
Material: Stainless Steel
Core Components: Motor
Capacity: 350L
Output: 300 kg/time
Weight: 700 kg
Dimensions: 2100×920×1650 mm
Power: 5.5 kW
Usage: Plastic Powder
Technical Specifications - Horizontal Plastic Blender Series
Specification 125L 350L 500L 1000L 1500L
Heating Power 6 kW 8 kW 10 kW 15 kW 18 kW
Motor Power 4 kW 5.5 kW 7.5 kW 11 kW 15 kW
Main Spiral Rotate Speed 22 r/min 14 r/min 12 r/min 11 r/min 10 r/min
Capacity 125 L 350 L 500 L 1000 L 1500 L
Output (Kg/time) 100 350 500 1000 1500
Mixing Time (Min/time) 35-45 35-45 40-50 40-50 40-50
Overall Dimensions (mm) 2300×900×1300 2100×920×1650 2450×1000×2100 2820×1305×2355 3315×1500×2525
Weight 750 Kg 1000 Kg 1400 Kg 2000 Kg 2500 Kg
Product Images

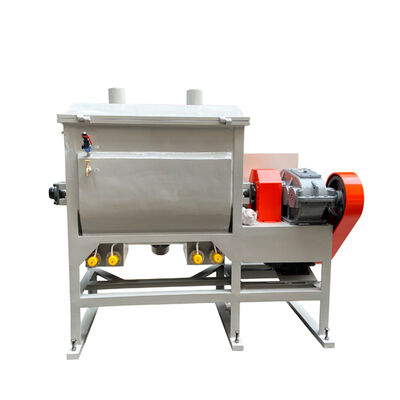

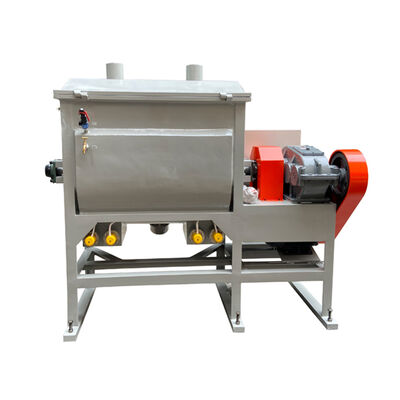

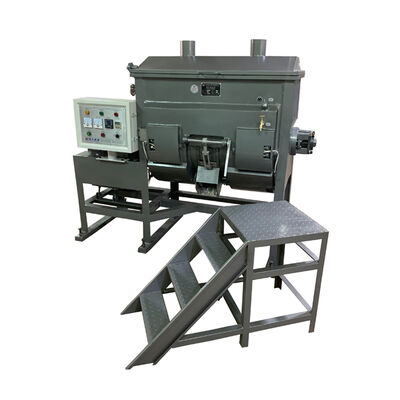

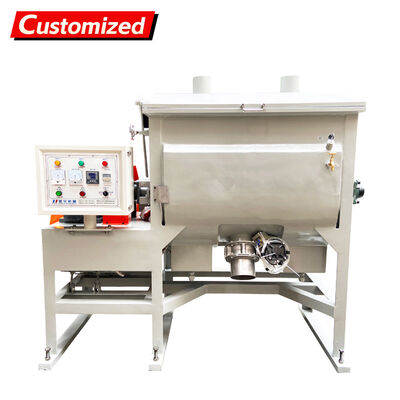

Industrial stainless steel horizontal ribbon mixer - front view Industrial stainless steel horizontal ribbon mixer - side view Industrial stainless steel horizontal ribbon mixer - operational view Industrial stainless steel horizontal ribbon mixer - detailed component view
