Custom Low Energy Consumption Continuous Paddle Mixer with Variable Speed and Safety Features for Various Industries

Custom Low Energy Consumption Continuous Paddle Mixer with Variable Speed and Safety Features for Various Industries

Brand Name:	WeSeW
Model Number:	Kai003
MOQ:	1 pc
Price:	US$15,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Control System:

Button Control

Cooling Method:

Air Cooling

Heating Method:

Electric Heating

Main Material:

Alloy Steel, Carbon Steel, Stainless Steel

Mixing Capacity:

500-1000L

Safety Features:

Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard

Speed Control:

Variable Speed

Speed Range:

30-39 R/min

Stirring Type:

Spiral

Temperature Control:

With Heating

Working:

High Speed Mixer

Material Processed:

Plastics, Chemicals, Food, Medicine

Key Selling Points:

Easy To Operate

Machinery Test Report:

Provided

Application Scope:

Food Pharmacy Chemical

Core Components:

Motor, Gearbox

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Product Description

Custom Low Energy Consumption Continuous Paddle Mixer for Various Processing Industries

The CM-series continuous mixer enables simultaneous feeding and discharging operations. Designed for large-scale production lines, it ensures consistent and stable product quality while maintaining uniform material mixing. The CMS (Continuous Single Shaft Plough Mixer) specializes in mixing and can also function as a conveyor. Its unique internal structure accommodates varying feeding speeds to achieve desired productivity levels.

The CMD (Continuous Double Shaft Paddle Mixer) maximizes productivity through vigorous mixing that scatters materials, promoting diffusion and thorough blending within the twin shafts' meshing space. This model is particularly effective for mixing fibers and granules.

Continuous Powder Mixer Operating Principles

Overflow Method

This method controls discharge by maintaining a specific material volume in the mixer tank during continuous operation. The retained material mixes with incoming new material through alternating and superimposing actions, maintaining discharge-ready conditions as material overflows out.

Advance and Retreat Supplies Method

Utilizing the mixing agitator, this method achieves synchronous or alternating feeding and retreat forces. Operators can select from three approaches based on material properties and mixing requirements: more feeding/less retreat, less feeding/more retreat, or equal feeding/retreat ratios.

Continuous Mixer Operational Guidelines

Ensure stable and continuous feeding operations
Maintain correct feeding speed ratios according to material formulas
Coordinate discharge equipment to handle material promptly and prevent blockages
Premix small additives (less than 5%) before loading into continuous mixer
Mixer productivity is determined by feeding system speed
Select mixer model and size based on productivity requirements, homogeneity needs, and material properties

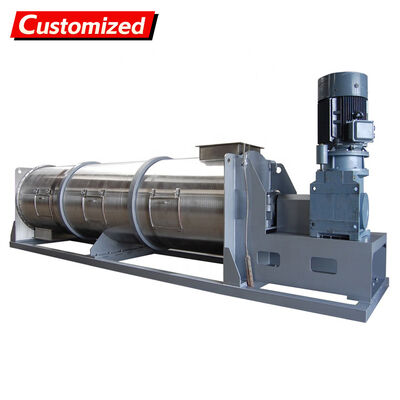

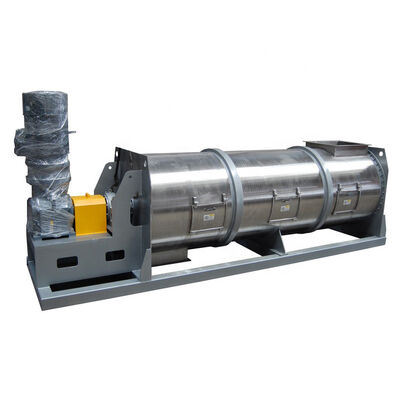

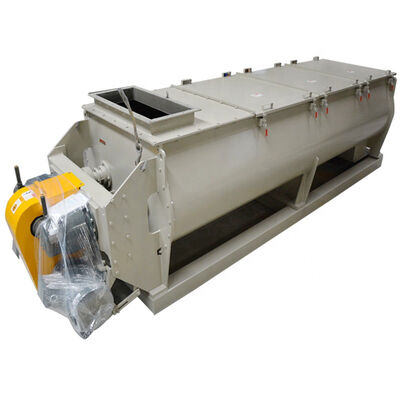

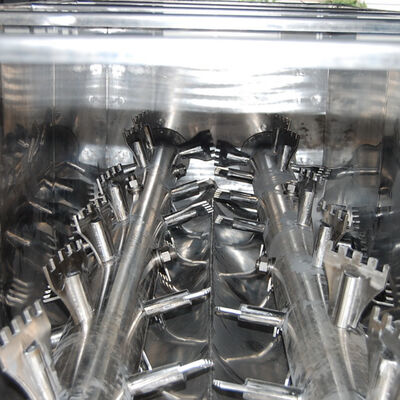

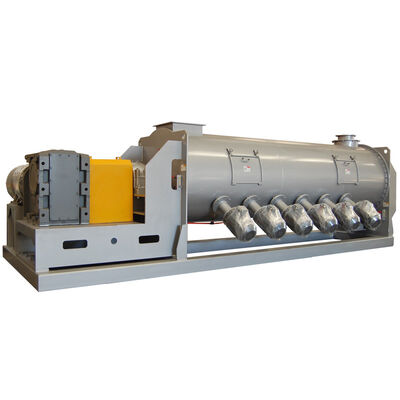

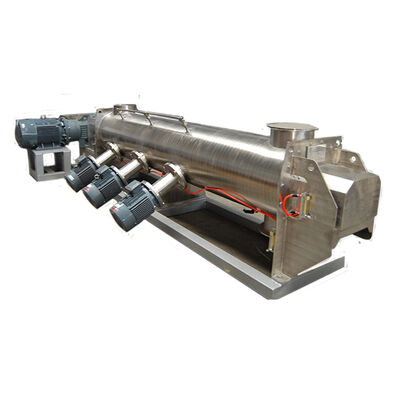

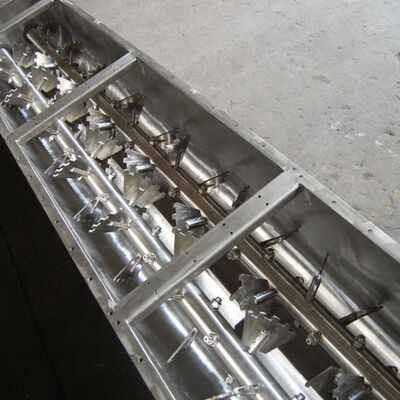

Product Images
