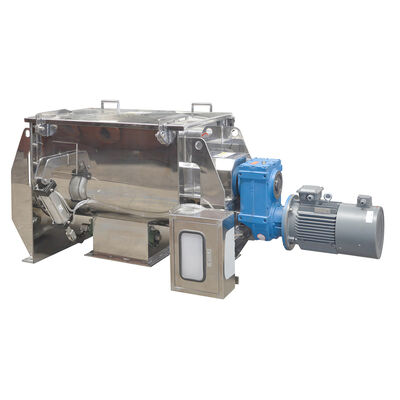

Variable Speed Stainless Steel Horizontal Powder Mixer with 500-1000L Mixing Capacity

Variable Speed Stainless Steel Horizontal Powder Mixer with 500-1000L Mixing Capacity

Brand Name:	WeSeW
Model Number:	Kai003
MOQ:	1 pc
Price:	US$15,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Control System:

Button Control

Cooling Method:

Air Cooling

Heating Method:

Electric Heating

Main Material:

Alloy Steel, Carbon Steel, Stainless Steel

Mixing Capacity:

500-1000L

Safety Features:

Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard

Speed Control:

Variable Speed

Speed Range:

30-39 R/min

Stirring Type:

Spiral

Temperature Control:

With Heating

Working:

High Speed Mixer

Material Processed:

Plastics, Chemicals, Food, Medicine

Key Selling Points:

Easy To Operate

Machinery Test Report:

Provided

Application Scope:

Food Pharmacy Chemical

Core Components:

Motor, Gearbox

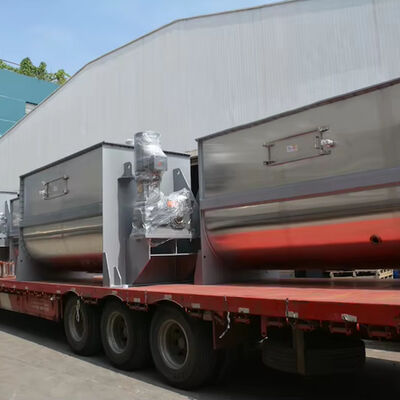

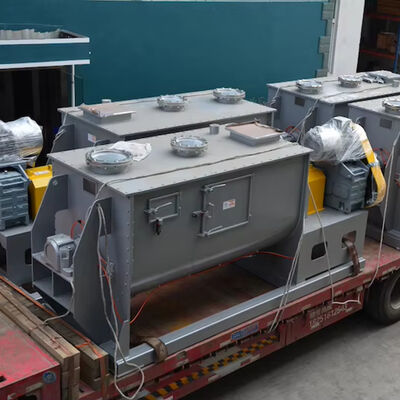

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Product Description

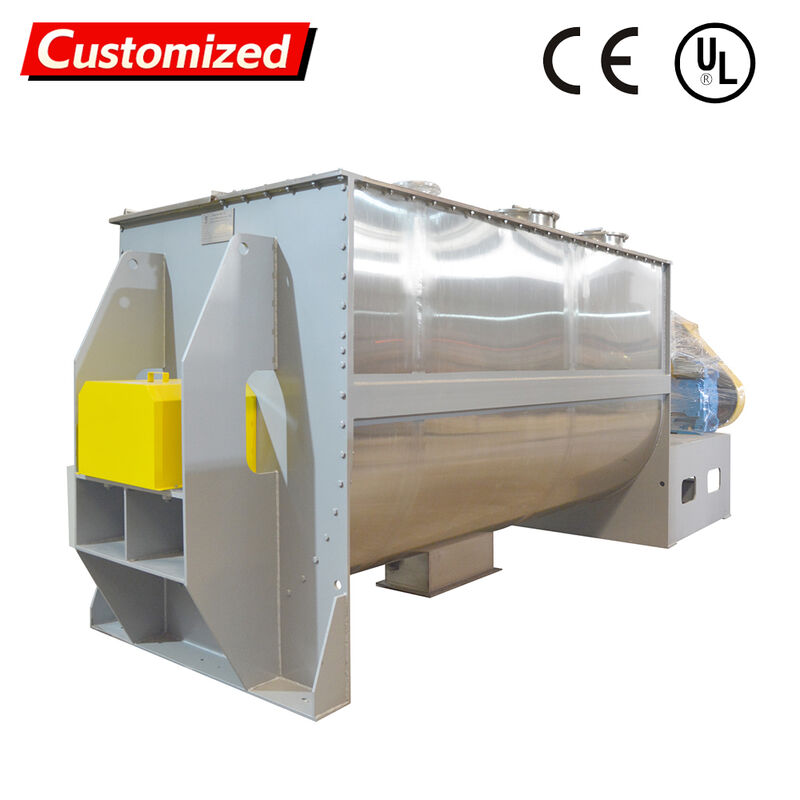

Custom Powder Mixers: Professional, Durable, and Highly Efficient Horizontal Powder Mixers

Custom powder mixers designed for professional, durable, and highly efficient horizontal powder mixing applications across various industries.

Raw Material: Vegetables, Water, Powder

Application Fields: Commercial Catering, Vegetable Processing Plant

Weight: 1500 kg

Voltage: 380V

Product Overview

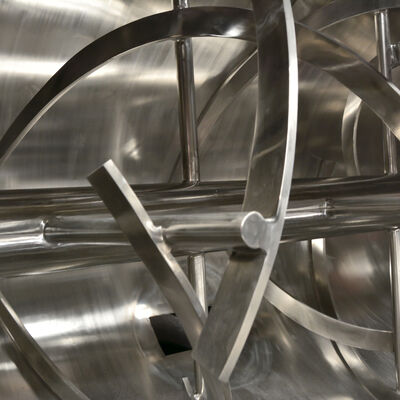

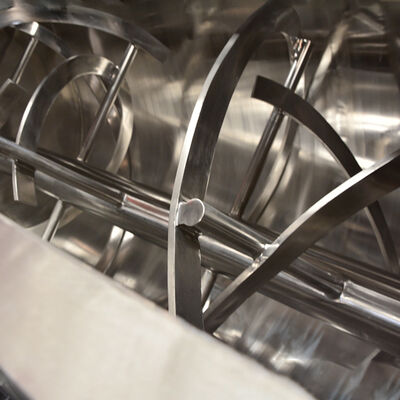

The ribbon mixer consists of a U-shaped container, ribbon mixing blades, and transmission components. The U-shaped long cylinder structure enables mixed materials (powder, semi-fluid) to move with minimal resistance. Positive and negative rotating spirals on the same horizontal axis create a low-power, high-efficiency mixing environment. Spiral ribbon blades are typically double or triple layers - outer spirals gather materials from both sides to the center, while inner spirals convey materials from the center to both sides, creating multiple eddy currents that accelerate mixing speed and improve uniformity.

Material Selection

Available materials include carbon steel, manganese steel, SS304, 316L, and 321. Different materials can be combined, with variations between parts contacting raw materials and non-contacting components. Stainless steel surface treatments include sandblasting, wire drawing, polishing, and mirror polishing for different mixer parts.

Drive Unit

Drive units, power, and output speed vary according to raw material properties, starting methods, and processing requirements. Motor options include general motors, explosion-proof motors, variable frequency motors, and high-efficiency energy-saving motors. Common reducers: R-series, K-series, F-series gear boxes; cycloidal reducers, universal gear reducers, planetary gear reducers. Motor-gearbox connections: direct connection, pulley connection, hydraulic coupler connection.

Mixing Unit

Different main shaft agitators accommodate various raw material properties. Common mixing applications: powder-to-powder mixing, batch mixing, powder with small liquid quantities, liquid with powder (slurry), thickening/diluting slurry, granule with powder, granule with granule, agglomerated material breaking and mixing, cooling/heating. Main shaft agitator options: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

Discharging Unit

Standard horizontal mixer valve is pneumatic planar flap valve. When closed, the planar flap perfectly matches the mixing barrel, eliminating mixing dead zones and improving mixing effectiveness. Valve drive types: manual, pneumatic, and electric. Alternative valves: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve.

Inlet Design

Various inlets on the barrel top cover designed for different applications: man hole, cleaning door, feeding hole, vent, and dust collecting hole. Top cover can be designed as fully-opened lid for easy cleaning access.

Auxiliary Components

Mixers frequently include auxiliary components: steam coil jacket, honeycomb pressure jacket, medium circulation jacket, sampling valve, high-speed chopper, temperature sensor, weighing system, dust removal system. Different heat mediums require specific jackets for heating/cooling (temperature up to 250°C). For liquid addition during mixing, spraying/atomizing units ensure even liquid distribution with main ingredients. Liquid-adding system components: pressure source, liquid storage pot, and spraying nozzles.

Key Features

Efficient Mixing Solution: Professional horizontal powder mixer designed for various industries including building materials, manufacturing plants, construction works, and energy & mining sectors
Durable Construction: New condition with 1-year warranty, built for optimal performance and minimal downtime
Versatile Application: Suitable for commercial catering, vegetable processing plants, and multiple industries handling various raw materials
Industry Compliance: Provided machinery test report ensures compliance with industry standards and regulations
