Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer

Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer

Brand Name:	WeSeW
Model Number:	Kai003
MOQ:	1 pc
Price:	US$15,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Cooling Method:

Air Cooling

Mixing Capacity:

500-1000L

Stirring Type:

Spiral

Core Components:

Motor, Gearbox

Speed Control:

Variable Speed

Material Processed:

Plastics, Chemicals, Food, Medicine

Application Scope:

Food Pharmacy Chemical

Speed Range:

30-39 R/min

Working:

High Speed Mixer

Temperature Control:

With Heating

Safety Features:

Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard

Key Selling Points:

Easy To Operate

Machinery Test Report:

Provided

Heating Method:

Electric Heating

Control System:

Button Control

Main Material:

Alloy Steel, Carbon Steel, Stainless Steel

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Product Description

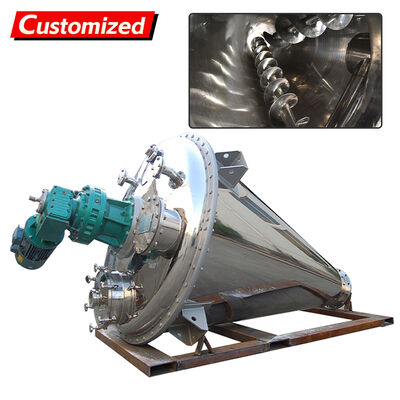

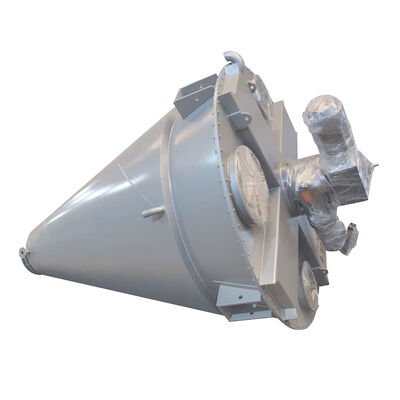

Custom Stainless Steel Twin-Screw Mixer with Conical Agitator

Professional-grade twin-screw conical mixer featuring polished and brushed finish, constructed from wear-resistant alloy with dual-input reducer for optimal performance in industrial mixing applications.

Material Selection

Available in carbon steel, manganese steel, SS304, 316L, and 321. Different materials can be used for parts contacting and non-contacting with raw materials. Surface treatments include sandblasting, wire drawing, polishing, and mirror polishing.

Driven Unit

Equipped with appropriative double output reducer combining pinwheel, gear, and worm gear configurations. Drive unit and power specifications vary according to raw material properties, starting methods, and processing requirements.

Discharging Unit

Available with spherical valve or plum-blossom dislocation valve. Valve surfaces match screw bottom track to minimize mixing dead zones and maximize discharging area, ensuring no leftover material. Excellent sealing performance for powders and liquids.

Auxiliary Components

Optional circulation medium jacket for temperature control. Custom coatings for anti-riot, anti-caking, and metal isolation. Spraying or atomizing units for liquid addition. Wear-proof alloy overlays for severe conditions.

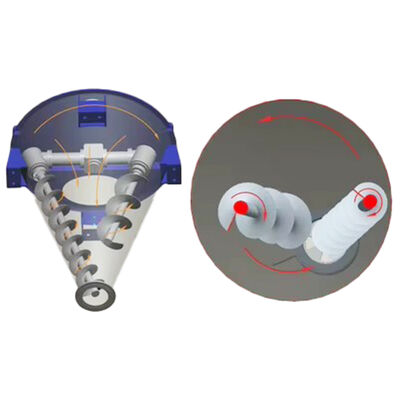

Mixing Mechanism

Double screw conical mixer rotates around its axis using two internal asymmetric spirals mounted on cantilever. The rotational force drives spirals in revolution around conical chamber axis, creating four-direction material movement:

Two inner asymmetric spirals upgrade materials by rotation
Tumbler low-speed rotation creates circular material motion
Spiral rotation and revolution absorb and diffuse materials
Two upward material flows converge downward to center, forming convective circulation

Selection Guidelines

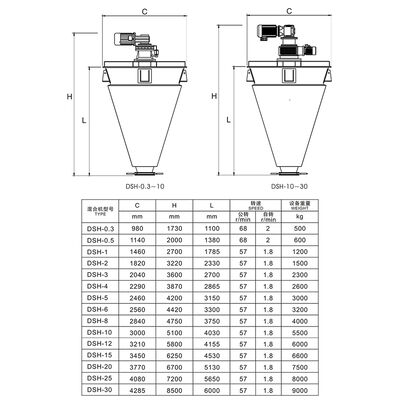

Choose batch working capacity from 0.1 m³ to 20 m³
Select contact and non-contact materials (mild steel, SUS304, SUS316L, SUS321)
Determine motor power based on material gravity, fluidity, and operation type
Add auxiliary components (spraying, heating, cooling) as needed
Configure mixer inlets: feeding ports, cleaning port, vent
Choose discharging and driven modes: manual, pneumatic, electric

Important: Mixer selection requires detailed material information, processing conditions, and factory arrangement. Our technical team provides professional support for optimal configuration.
