Industrial-Grade Plow-Type Shear Mixer with Variable Speed Control and Stainless Steel Construction for High-Accuracy Mixing

Industrial-Grade Plow-Type Shear Mixer with Variable Speed Control and Stainless Steel Construction for High-Accuracy Mixing

Brand Name:	WeSeW
Model Number:	Kai003
MOQ:	1 pc
Price:	US$15,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Control System:

Button Control

Cooling Method:

Air Cooling

Heating Method:

Electric Heating

Main Material:

Alloy Steel, Carbon Steel, Stainless Steel

Mixing Capacity:

500-1000L

Safety Features:

Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard

Speed Control:

Variable Speed

Speed Range:

30-39 R/min

Stirring Type:

Spiral

Temperature Control:

With Heating

Working:

High Speed Mixer

Material Processed:

Plastics, Chemicals, Food, Medicine

Key Selling Points:

Easy To Operate

Machinery Test Report:

Provided

Application Scope:

Food Pharmacy Chemical

Core Components:

Motor, Gearbox

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Product Description

Custom Heavy-Duty Plow-Type Shear Mixers and Plow-Type Mixers

Professional industrial-grade, high-precision mixing equipment designed for demanding manufacturing applications across multiple industries.

Materials Processed	Plastics, Chemicals, Food
Mixer Type	Agitator
Construction Material	SUS304, SUS316L
Additional Capabilities	Drying
Power	22 kW
Barrel Volume	4000 L
Weight	3500 KG
Spindle Speed Range	1 - 62 r.p.m
Dimensions	5005005~3000380012

Product Overview

Plow mixers are widely used to mix powder, granules, and small liquid additives in food, chemical, and construction applications. They excel at handling food additives, mortar, fertilizer, sludge, plastic, and special building materials. The powerful shearing effect ensures high efficiency and superior mixing results.

Key Features

Material Selection: Available in carbon steel, manganese steel, SS304, 316L, and 321. Different materials can be used for parts contacting and non-contacting raw materials. Surface treatments include sandblasting, wire drawing, polishing, and mirror polishing.
Driven Unit: Customizable power and output speed based on raw material properties and processing requirements. Motor options include general, explosion-proof, variable frequency, and high-efficiency energy-saving motors. Multiple reducer and connection options available.

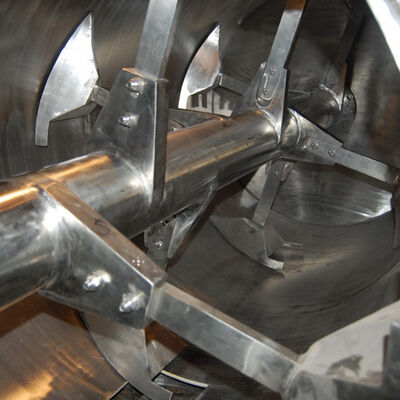

Mixing Unit: Features dismountable plow heads for easy replacement. Wear-resistant treatment enhances durability. Various main shaft agitators available including ordinary plough, saw-toothed plough, and shaver-shaped paddles.
Discharging Unit: Standard pneumatic planar flap valve ensures no mixing dead zones. Available in manual, pneumatic, and electric drive types with multiple valve options.
Auxiliary Components: Equipped with steam coil jackets, sampling valves, high-speed choppers, temperature sensors, weighing systems, and dust removal systems. Liquid-adding systems available for even distribution.
Shaft Sealing: Three sealing types available: packing sealing, combined type air-purged sealing, and mechanical sealing.

Selection Guidelines

Choose batch working capacity from 0.1cbm to 20cbm
Select materials for parts contacting raw materials based on health requirements and processing conditions
Determine motor power based on material gravity, fluidity, and operation type (normal or heavy duty)
Add auxiliary components like spraying, heating, and cooling based on processing requirements
Configure inlets including feeding ports, cleaning ports, and vents
Select discharging and driven modes: manual, pneumatic, or electric

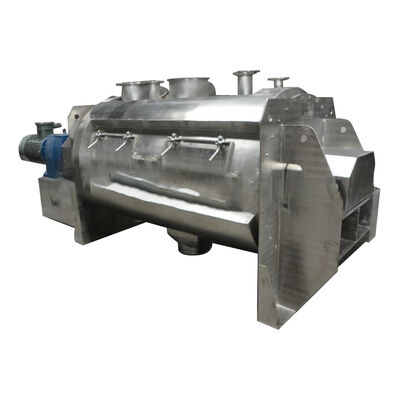

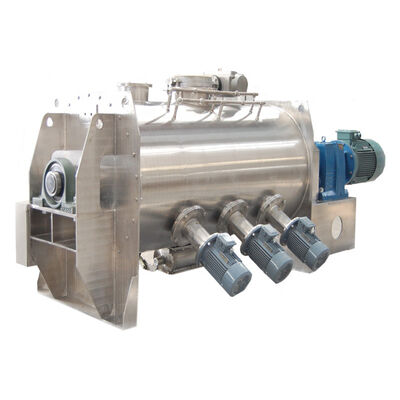

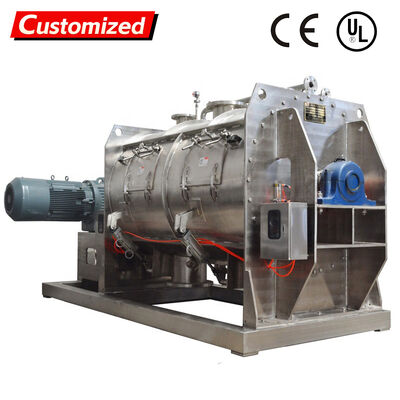

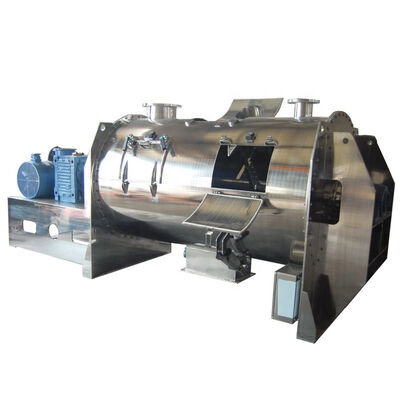

Product Images
