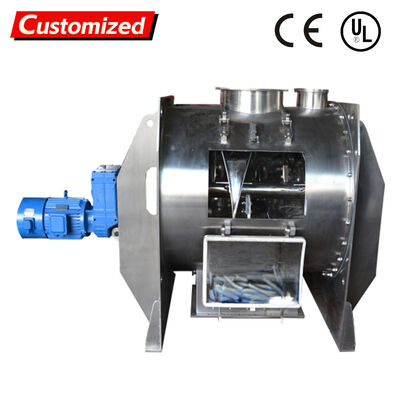

Custom High-Precision Stainless Steel Plow-Type Mixer with Variable Speed for Powder Blending

Custom High-Precision Stainless Steel Plow-Type Mixer with Variable Speed for Powder Blending

Brand Name:	WeSeW
Model Number:	Kai003
MOQ:	1 pc
Price:	US$15,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Control System:

Button Control

Cooling Method:

Air Cooling

Heating Method:

Electric Heating

Main Material:

Alloy Steel, Carbon Steel, Stainless Steel

Mixing Capacity:

500-1000L

Safety Features:

Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard

Speed Control:

Variable Speed

Speed Range:

30-39 R/min

Stirring Type:

Spiral

Temperature Control:

With Heating

Working:

High Speed Mixer

Material Processed:

Plastics, Chemicals, Food, Medicine

Key Selling Points:

Easy To Operate

Machinery Test Report:

Provided

Application Scope:

Food Pharmacy Chemical

Core Components:

Motor, Gearbox

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Product Description

Custom High-Precision Stainless Steel Powder Mixers

Product Overview

Custom-made high-precision stainless steel powder mixers, dry powder mixers, plow-type mixers, plow-type agitators, and plow-type shear cone mixers designed for demanding industrial applications.

Material Processed	Chemicals
Mixer Type	Plough Shear
Construction Materials	SUS304, SUS304L, SUS316, SUS316L
Product Type	Cosmetic Powder Mixing Machine
Additional Capabilities	Drying
Voltage	380V, 50Hz, 3 Phase
Power	11 kW
Core Components	PLC
Warranty	1 Year
Barrel Volume	2000 L
Weight	2500 KG
Spindle Speed Range	1 - 80 r.p.m
High Speed Chopper	1450 RPM
Sealing	Packing Sealing + Air-Purged Sealing
Applications	Chemicals Processing, Food Processing

Product Introduction

Plough mixers are widely used for mixing powder, granules, and small liquid additives in food, chemical, and construction industries. They excel at handling food additives, mortar, fertilizer, sludge, plastic, and special building materials. The powerful shearing effect ensures high efficiency and superior mixing results.

Key Features & Customization Options

Material Selection

Available in carbon steel, manganese steel, SS304, 316L, and 321. Different materials can be used for parts contacting and non-contacting raw materials. Surface treatments include sandblasting, wire drawing, polishing, and mirror polishing.

Driven Unit

Customizable drive units, power, and output speeds based on raw materials and processing requirements. Motor options include general, explosion-proof, variable frequency, and high-efficiency energy-saving motors. Reducer options: R-series, K-series, F-series gear boxes, cycloidal reducers, universal gear reducers, and planetary gear reducers.

Mixing Unit

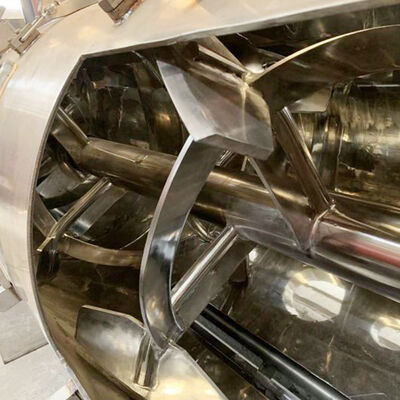

Features dismountable plow heads for easy replacement. Wear-resistant treatment enhances durability. Various main shaft agitators available: ordinary plough, saw-toothed plough, and shaver-shaped paddle. High-speed chopper options include multiple-piece cross blade and double-piece lotus blade.

Discharging Unit

Standard pneumatic planar flap valve eliminates mixing dead zones. Drive types: manual, pneumatic, and electric. Optional valves include powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, and rotary valve.

Auxiliary Components

Available options include steam coil jacket, honeycomb pressure jacket, medium circulation jacket, sampling valve, temperature sensor, weighing system, and dust removal system. Heating and cooling capabilities up to 250°C. Liquid-adding systems with pressure source, liquid storage pot, and spraying nozzles.

Shaft Sealing

Three sealing types available: packing sealing, combined type air-purged sealing, and mechanical sealing, selected based on material requirements.

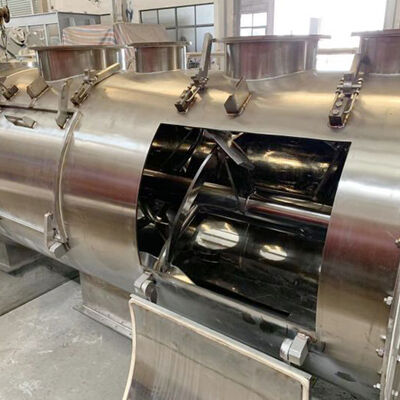

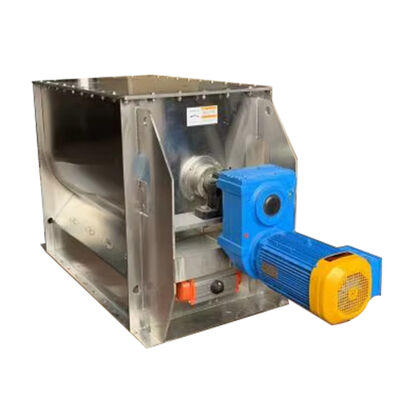

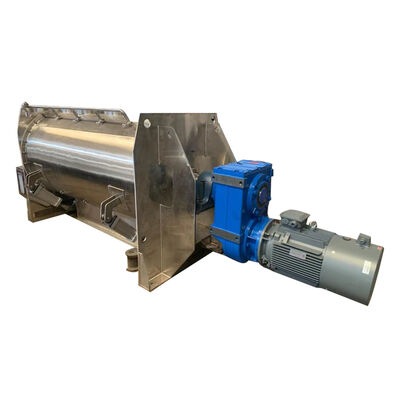

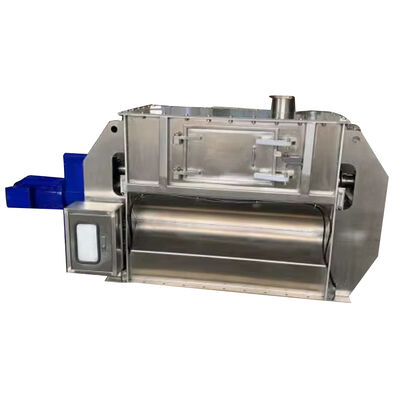

Product Images
