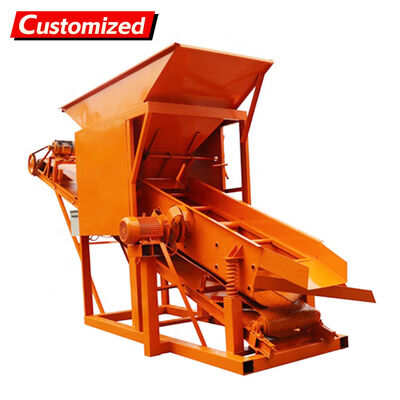

Portable Mini Sand Screening Machine with High Efficiency and Customized Sieve Size for Mining Operations

Portable Mini Sand Screening Machine with High Efficiency and Customized Sieve Size for Mining Operations

Brand Name:	WeSeW
Model Number:	Kai001
MOQ:	1 pc
Price:	US$10,000~US$20,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

china

Certification:

CE/UL

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Machinery Test Report:

Provided

Feature:

High Efficiency

Material Feature:

Heat Resistant, Fire Resistant

Structure:

Conveyor System

Package Size:

800.00cm * 50.00cm * 100.00cm

Function:

Transmission System

Specification:

Customized

Speed:

High Speed

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Dimension(L*W*H):

Customized

Usage:

Conveyor

Package Gross Weight:

200.000kg

Material:

Stainless Steel

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Product Description

Custom Mini Sand Screening Machine

Supplier of custom-made mini sand screening machines—portable screening machines designed for efficient sand and gravel separation in mining and quarrying operations.

Technical Specifications

Application	Screening sand, ore, coal, etc.
Voltage	380V
Type	Circular
Core Components	Motor, Gearbox
Weight	800 KG

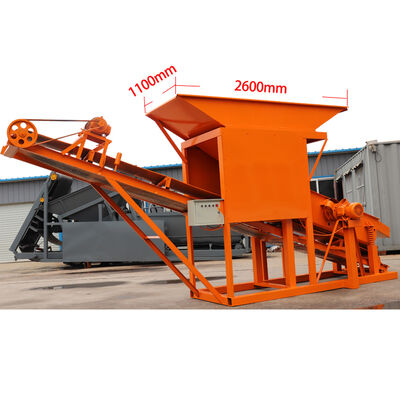

Dimensions (L×W×H)	1430×880×1100mm
Motor	AC Motor
Material	Steel
Usage	Separation Screening
Color	Customers' Request
Model	Mini
Installation	Engineer Guide
Mesh Size	Customized

Product Overview

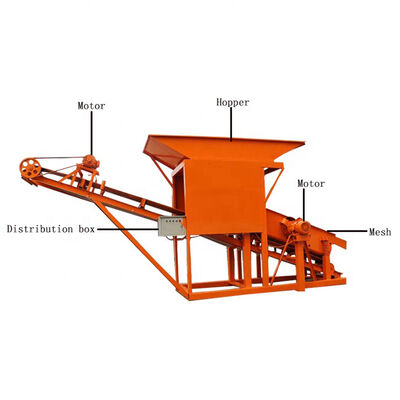

This custom-designed vibrating sand screening machine is specialized equipment for sand and gravel screening operations. The entire machine features an integrated frame structure and consists of a feed hopper, vibrating screening mechanism, conveying system, and drive motor. It uses vibration to cause material to rapidly tumble and be graded on an inclined screen surface, efficiently separating soil and aggregates of different particle sizes from the sand and gravel. The screen openings are resistant to clogging, ensuring high screening efficiency. The equipment features a compact design, smooth operation, and low noise levels. It requires no complex foundation for installation and is easy to relocate and maintain. Widely used in construction sites, sand pits, and concrete batching plants, it significantly reduces labor requirements and improves sand and gravel processing efficiency.

Key Features

Energy Saving

Reduces power consumption while maintaining efficiency

Customizable Sieve Size

Adapts to various sand types and sizes

Large Capacity

Handles up to 110m³/h, ideal for busy construction sites

Simple Installation

Quick replacement and easy maintenance

Stable Operation

Ensures consistent performance and reliability

Pure Copper Motor

High efficiency, powerful, durable

Wear-Resistant Roller

Not stuck, strong bearing capacity

Durable Hopper

Thick and corrosion resistant

Long-Lasting Screen Mesh

Impact and friction resistant with extended service life

Enhanced Spring System

Enlarged and thickened springs for long service life

Vibration Controller

Adjusts vibration frequency and ensures stability
