Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment

Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment

Brand Name:	WeSeW
Model Number:	Kai001
MOQ:	1 pc
Price:	US$10,000~US$20,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

china

Certification:

CE/UL

Machinery Test Report:

Provided

Package Size:

800.00cm * 50.00cm * 100.00cm

Package Gross Weight:

200.000kg

Structure:

Conveyor System

Speed:

High Speed

Function:

Transmission System

Usage:

Conveyor

Material:

Stainless Steel

Feature:

High Efficiency

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Specification:

Customized

Dimension(L*W*H):

Customized

Material Feature:

Heat Resistant, Fire Resistant

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Product Description

Custom Rotary Drum Screens

Customized rotary screens are available for wastewater treatment, industrial, and agricultural applications. Factory direct sales.

Productivity 1000L/Hour

Processing Type Filtration

Voltage 380 V

Power 1 kW

Core Components Motor

Warranty 1 Year

Weight 1000 kg

Brand Name Ryde

Use Solid-liquid separation

Material SS304/SS316

Grid Gap 0.5mm-5mm

Optional Customize

Water Flow Rate 80-6750m³/h

Drum Diameter 600mm-2600mm

Drum Length 600mm-2400mm

Power Range 0.75kw-3kw

Product Overview

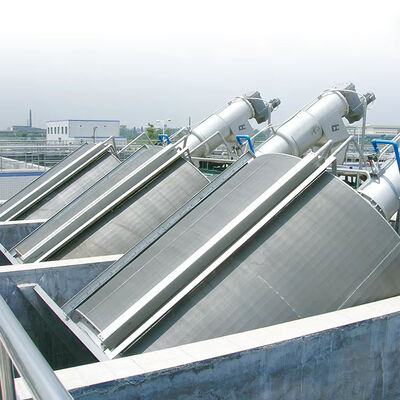

Widely used in inlets containing floating objects, such as river channels, bar screen wells, water pumping stations, hydropower stations, waterworks, power plants, and steel mills. Effectively intercepts sediments and dregs from sewage for preliminary purification, ensuring normal operation of subsequent treatment processes.

Ryde 2G Rotary Drum Screen is widely applied for wastewater treatment projects including urban wastewater, industrial wastewater, food processing industry, and paper industry. This equipment effectively removes scum, short fibers, and suspended matter from water intake, discharging them after dewatering. Suitable for high-precision processes with small grid gaps and low canal depth requirements.

Key Features

Low hydraulic loss, high efficiency, and large processing capacity
Complete stainless steel structure for easy maintenance and long service life
Self-cleaning working mechanism for continuous operation
Multi-functional system with compact structure design

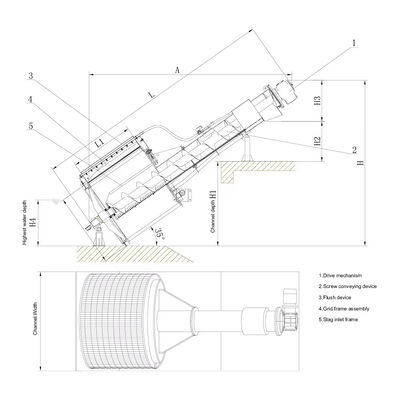

This equipment integrates four functions: intercepting dregs, removing dregs, spiral lifting, and pressing dewatering. Mounted in the canal at a 35-degree angle, wastewater flows into the drum from the inlet port. Water flows out from the drum side while the grid intercepts dregs. The drum rotates at a fixed speed, with nylon brush and flush water spray nozzle systems removing dregs and exporting them through spiral lifting. Dehydrated dregs are delivered to containers or transportation equipment in a clean, odor-free process.
