Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment

Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment

Brand Name:	WeSeW
Model Number:	Kai001
MOQ:	1 pc
Price:	US$10,000~US$20,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

china

Certification:

CE/UL

Machinery Test Report:

Provided

Package Size:

800.00cm * 50.00cm * 100.00cm

Package Gross Weight:

200.000kg

Structure:

Conveyor System

Speed:

High Speed

Function:

Transmission System

Usage:

Conveyor

Material:

Stainless Steel

Feature:

High Efficiency

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Specification:

Customized

Dimension(L*W*H):

Customized

Material Feature:

Heat Resistant, Fire Resistant

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Product Description

Customized Spiral Rotary Screens for Wastewater/Sewage/Industrial Applications

Product Overview

Customized spiral rotary screens designed for wastewater, sewage, and industrial applications. These robust filtration systems efficiently separate solids from liquids in various processing environments.

Technical Specifications

Productivity	10000 L/Hour
Processing Type	Filtration
Voltage	220 V
Power	2 kW (0.37-1.5 kW range)
Core Components	Engine, Motor, PLC
Weight	500 kg
Usage	Wastewater Treatment
Capacity	5-150 M³/h
Material	Stainless Steel 304/316L
Certification	CE Certificate; ISO9001
Warranty	1-3 Years

Application

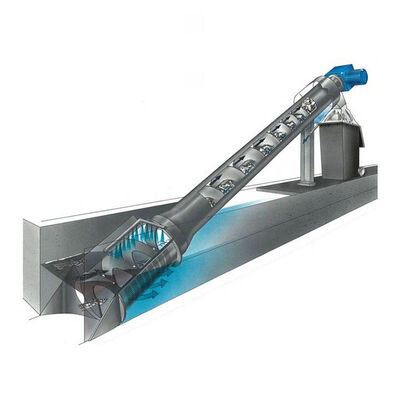

Screw screen used for wastewater, sewage, and industrial applications. The screw screen for wastewater treatment consists of a screen basket, a conveyor screw, and a compaction section. It is suitable for applications where screenings may not or cannot be compacted.

Function

The process starts in the screen that holds back solids only. The internal part of the screen is continuously cleaned by brushes fixed on the outside diameter of the flighting. As the water runs through the screen, the shaftless spiral conveys the solids up towards the compaction module where the material is further de-watered. Depending on the material properties, screenings can be reduced by more than 50% of their original volume.

Main Features

Processing capacity: 10-150 m³/h
Screen mesh size ranging from 1 mm to 6 mm
Screen width ranging from 300 mm to 700 mm
Stainless steel casing
Shaftless spiral screw in SS304 or SS316L
Intermittent operation, slow r.p.m.
Variety of screen mesh sizes
Versatility: can be installed in a concrete channel on site or supplied with a self-supporting container (supplied on request)
Volume reduction up to 50%
Absence of inside bearings
No mechanical components in contact with the product handled
Shaftless spiral, therefore no jamming or blocking even with fibrous products
Long-life screw brushes
Low investment costs

Product Images
